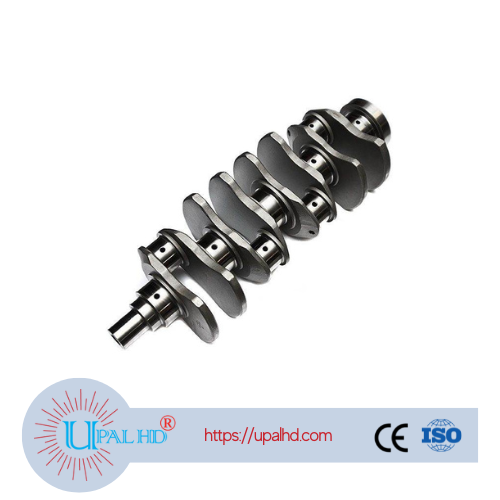

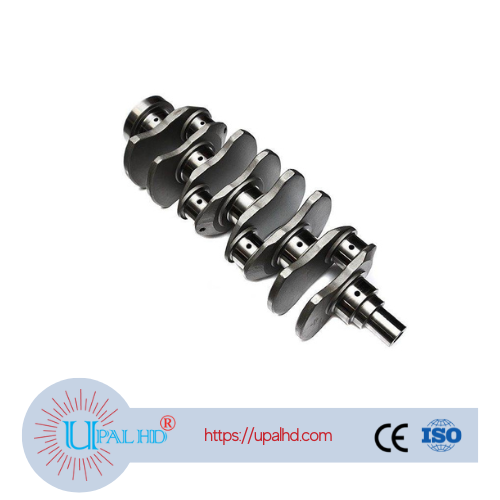

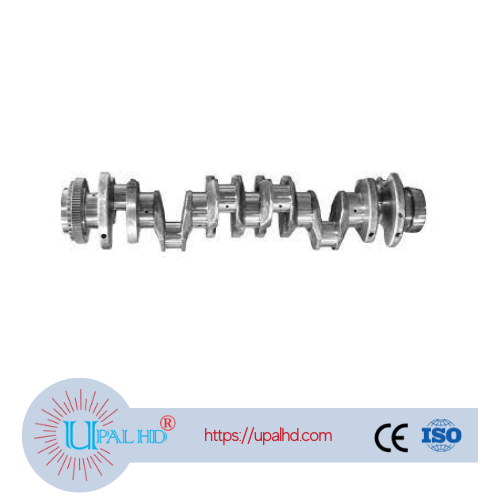

0R9906 | CATERPILLAR C15/ 3406E CRANKSHAFT WITHOUT GEAR, NEW

Fits 6NZ engines.

C15 Engine Specifications:
Year: 1999-2007
Liter: 15.2
CID: 928
Cylinder: L 6
Bore/ Stroke: 5.4000-5.4020″,6.7320″
Compression Ratio: –
Firing Order: 1-5-3-6-2-4

Tune-Up Specifications:
Intake Valve Lash: .015″
Exhaust Valve Lash:.030″

Cylinder Block Specifications:
Cylinder Bore Diameter: 5.4000-5.4020″
Torque Plate: Spacer Plate .337-.339″
Deck Height: 16.744-16.756″
Measured At: C/Main-Deck
Main to Pan Rail Distance: 6.496-6.504″

Piston Specifications:
Piston To Rod Assembly Orientation: Number on rod opposite previous camshaft side.
Piston Pin Diameter: 2.1652-2.1656″
Piston Pin Bore Diameter: 2.1659-2.1663″

Housing Bore Specifications:
Main Bore Diameter: 5.1133-5.1143″
Main Cap Torque: 180-200 FT/LBS, +115-125º
Camshaft Bore Diameter: 3.5810-3.5830″
