| With display |
Yes |
| Voltage type for actuating |
AC |
| Rated operating voltage Ue |
200 V |
| Rated control supply voltage at AC 50 Hz |
100 V |
| Rated control supply voltage at AC 60 Hz |
100 V |
| Overload current for line connected devices |
17 A |
| Overload current for delta connected devices |
29.4 A |

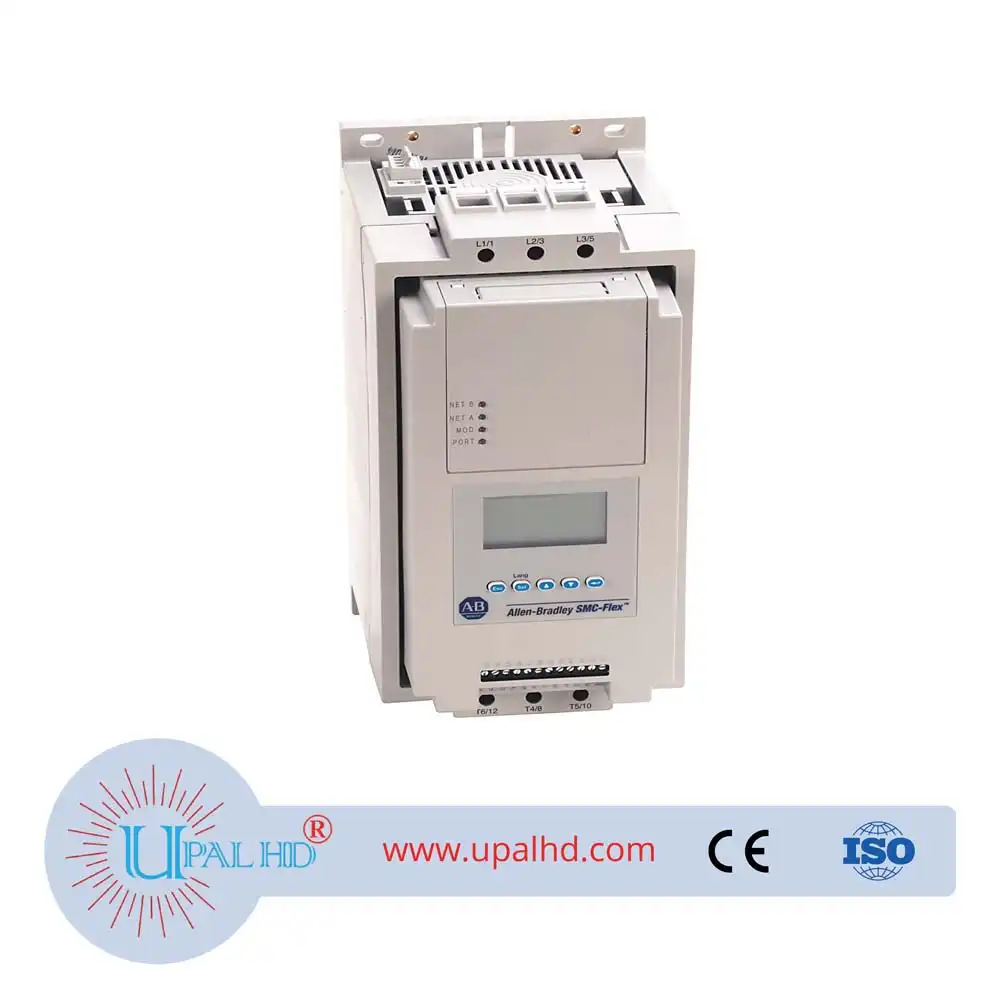

| Controller type |
Soft starter |
| Control options |
None |
| Trip classes |
10, 15, 20 and 30 |
| Trip current rating |
117% of motor FLC |
| Transformer control module |
75VA @ 100…240V AC (-15%, +10%) |
| Heatsink fan rating |
20VA @ 110/120V AC or 220/240V AC |
| DV/DT protection |
RC snubber network for power circuit |
| Repetitive peak inverse voltage rating |
1600V per UL/CSA/NEMA for power circuit |
| Operating frequency |
50/60 Hz for power circuit |
| Line connected motor power, max |
75 Hp @ 575V AC, 60 Hz, 3-phase |
| Delta connected motor power, max |
90 kW @ 500V AC, 50 Hz, 3-phase |
| Rated impulse voltage |
6000V per IEC for power circuit |
| Dielectric withstand |
2500V per IEC for power circuit |
| Line connected motor current |
17…85 A @ 500/575V AC, 3-phase |
| Delta connected motor current |
29.4…147 A @ 500/575V AC, 3-phase |
| Transient protection |
Metal oxide varistors: 220 Joules (optional) for power circuit |
| Insulation voltage |
Rated 500V per IEC for power circuit |
| Rated operational voltage |
200…600V AC (-15%, +10%) per UL/CSA/NEMA for power circuit |
| Input OFF-state current |
<10 mA AC, <3 mA DC for control circuit @ input OFF-state voltage |
| Short-circuit protection device list |
Standard fuse, circuit breaker and high capacity time delay class CC/J/L |
| Number of contacts |
1 for auxiliary contacts |
| High capacity available fault current, max |
70 kA @ 600V, maximum current 200 A time delay Class J or Class L fuse for inside delta connected motors |
| Type of current |
AC for auxiliary contacts |
| Conventional thermal current (Ith) |
AC/DC: 5 A for auxiliary contacts |
| Type of control circuit |
Electromagnetic relay for auxiliary contacts |
| Type of contacts |
Programmable NO/NC for auxiliary contacts |
| Utilization category |
MG 1 per UL/CSA/NEMA for power circuit |
| Standard controller feature |
Status indication: stopped, starting, stopping, at speed, alarm and fault |
| Standard available fault current, max |
10 kA @ 200…600V, maximum standard fuse 400 A for delta device operational current rating |
| Optional controller feature |
SMB smart motor braking control: provides motor braking without additional equipment for applications that require the motor to stop quickly, braking current is adjustable from 0…400% of the motor’s full-load current rating |
| Integrated motor overload protection |
Yes |
| Short circuit protection device performance (SCPD) type |
Type 1 |
| Number of sensors, max |
6 for PTC input ratings |
| Inrush current control module |
5 A @ 24V DC (-15%, +10%) |
| Voltage at PTC terminals (RPTC = open), max |
30V for PTC input ratings |
| Transient watts control module |
60 W @ 24V DC (-15%, +10%) |
| Steady state watts control module |
24 W @ 24V DC (-15%, +10%) |
| Voltage at PTC terminals (RPTC = 4 kΩ), max |
<7.5 for PTC input ratings |
| Response time |
800 ms for PTC input ratings |
| Inrush time control module |
250 ms @ 24V DC (-15%, +10%) |
| Transient time control module |
500 ms @ 24V DC (-15%, +10%) |
| Cold resistance of PTC sensor chain, max |
1500 Ohm for PTC input ratings |
| Tachometer input |
0…5V DC, 4.5V DC = 100% Speed |
| Allen bradley power supply control module, min |
1606-XLP50E @ 24V DC (-15%, +10%) |
| Short circuit trip resistance |
25 Ohm ± 10 Ohm for PTC input ratings |
| Response resistance |
3400 Ohm ± 150 Ohm for PTC input ratings |
| Reset resistance |
1600 Ohm ± 100 Ohm for PTC input ratings |
| Input OFF-state voltage, max |
50V AC, 10V DC/12V AC for control circuit |
| Input ON-state voltage, min |
85V AC, 19.2V DC/20.4V AC for control circuit |
| Lower line side cable size |
0.8…2.5 mm2 (18…14 AWG) for power terminals |
| Lower load side cable size |
0.8…2.5 mm2 (18…14 AWG) for power terminals |
| Upper load side cable size |
2.5…50 mm2 (14…1 AWG) for load power terminals |
| Upper line side cable size |
2.5…95 mm2 (14…3/0 AWG) for line power terminals |
| Rated operational current |
3 A @ 120V AC, 1.5 A @ 240V AC for auxiliary contacts |
| Input ON-state current |
20 mA @ 120V AC/40mA @ 240V AC, 7.6 mA @ 24V AC/DC for control circuit |
| Contact type |
auxiliary contacts 19/20 (Aux #1), 29/30 (Aux #2), 31/32 (Aux #3) and 33/34 (Aux #4) |
