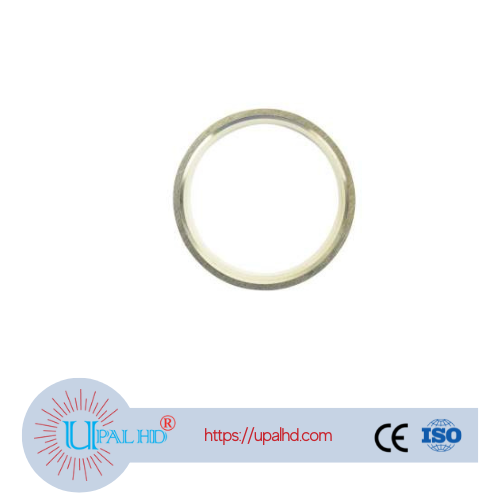

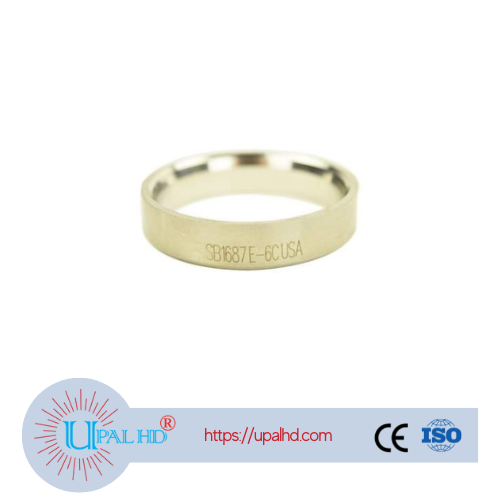

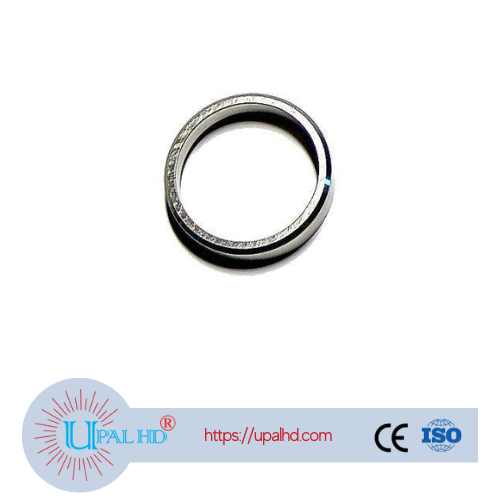

1W5283 | CATERPILLAR 3406/B/C EXHAUST SEAT

3406 Engine Specifications:
Year: 0-0
Liter: 14.6
CID: 893
Cylinder: L 6
Bore/Stroke: 5.400-5.402″, 6.500″
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4
Comments: Diesel 92U ->Tune-Up Specifications:
Intake Valve Lash: .015″ Cold
Exhaust Valve Lash: .030″ ColdValve Seat Information:
Seat Angle: Intake- 30°Exhaust- 45°
Seat Outside Diameter: Intake- 1.812″ Exhaust- 1.687″
Seat Insert Bore Depth: Intake- .512″Exhaust- .512″

3406B Engine Specifications:
Year: –
VIN: B
Liter: 14.6
CID: 893
Cylinder: L 6
Bore/Stroke: 5.400-5.402″, 6.500″
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4
Comments: Diesel 3406B Series, F7B1 -> Direct Injection

Tune-Up Specifications:
Intake Valve Lash: .015″ Cold
Exhaust Valve Lash: .030″ Cold

Valve Seat Information:
Seat Angle: Intake- 30°Exhaust- 45°
Seat Outside Diameter: Intake- INSERT OD 1.8115-1.8125″ Exhaust- INSERT OD 1.6865-1.6875″
Seat Insert Bore Diameter: Intake- 1.8080-1.8100″ Exhaust- 1.6830-1.6850″
Seat Insert Bore Depth: Intake- .506-.518″ Exhaust- .506-.518″
