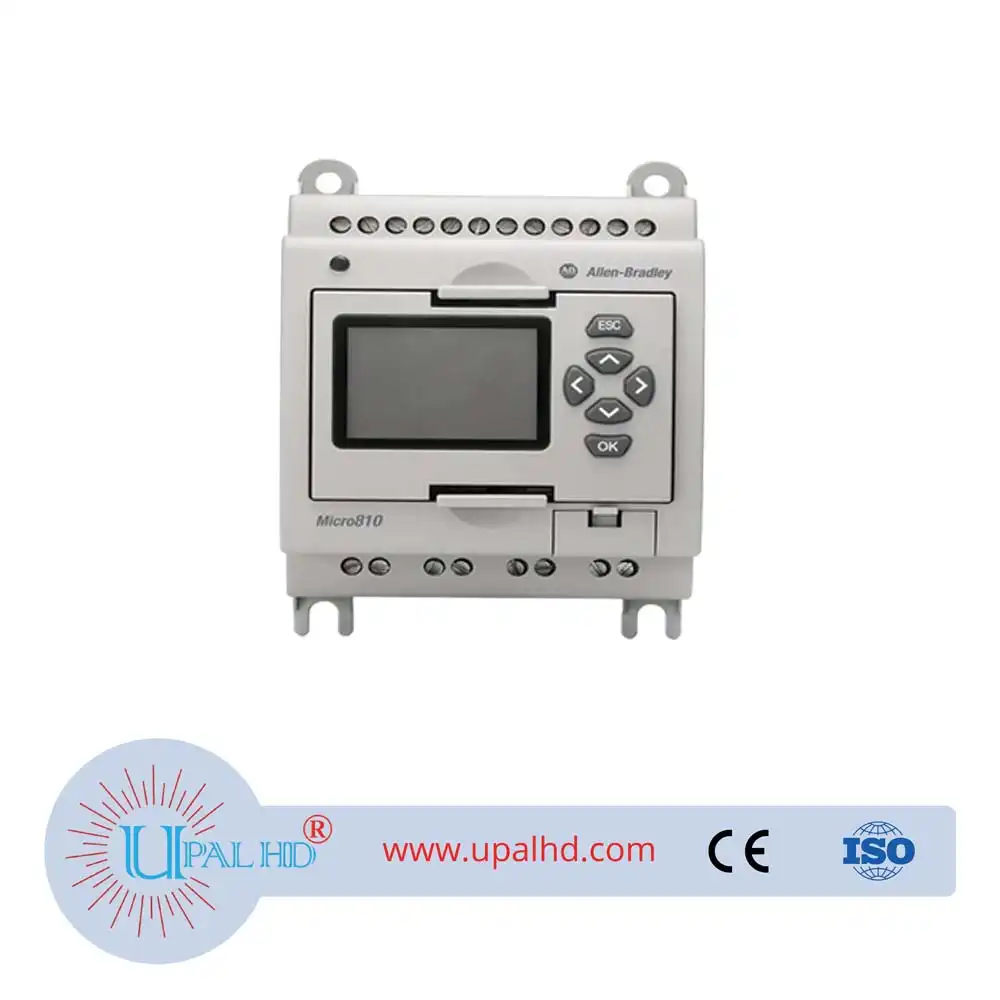

2080-LC10-12QWB Rockwell AB Micro810 Controller.
2080-LC10-12QWB Rockwell AB Micro810 Controller. Micro 800 Series Model No: 2080-LC10-12QWB. The 2080-LC10-12QWB is a Micro 810 Programmable Logic Controller (PLC). This controller is part of the Micro 800 series that is manufactured by Allen-Bradley. This controller is designed for use in micro or small automation requirements, featuring an embedded Real-Time Clock (RTC) and support for USB 2.0 via an adapter plug for configuration and programming of the controller; It has built-in Eight (8) 24 VDC / VAC discrete inputs; Four (4) Relay outputs and Four (4) 0-10 VDC analog input that is shared with DC inputs.
Description
PRODUCT INFORMATION OF 2080-LC10-12QWB Rockwell AB Micro810 Controller.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 2080-LC10-12QWB |
| Product Type | Programmable Controller |
| Brand | Allen-Bradley |
| Product Family | Micro 810 |
| Power | 24V DC |
| Product Description | Programmable Logic Controller (PLC) |
| Inputs | 8 (12-24V DC/V AC) |
| Integrated discrete inputs | Eight (8) 24 VDC / VAC discrete inputs; |
| Outputs | 4(Relay); 4(Analog) |
| Integrated outputs | None |
| Dimensions HxWxD | 3.58 x 2.95 x 2.32 in. |
| Integrated Relay outputs | Four (4) Relay outputs |
| Supply Voltage Range | 20.4-26.4V DC |
| Power Consumption | 3W |
| Integrated Analog input | Four (4) 0-10 VDC (shared with 24 VDC input) |
| Voltage Range | 24V DC Class 2 |
| Integrated High-Speed Counter input | None |
| Isolated AC Input On-state Voltage nom. | 12/24V AC @ 50/60 Hz |
| Built-in communication interfaces | None |
| DC Input On-state Voltage nom. | 12/24V DC |
| Maximum number of steps: | 2K Steps |
| Analog Input Voltage Range | 0-10V DC |
| Maximum data size | 4K bytes |
| Floating Point Math | Supported |
| DC Input On-state Voltage nom. | 12/34V DC |
| PID control | Supported |
| Relay Output Voltage min. | 5V AC/DC |
| UPC | 10885630058037 |
| User defined blocks | Supported |
