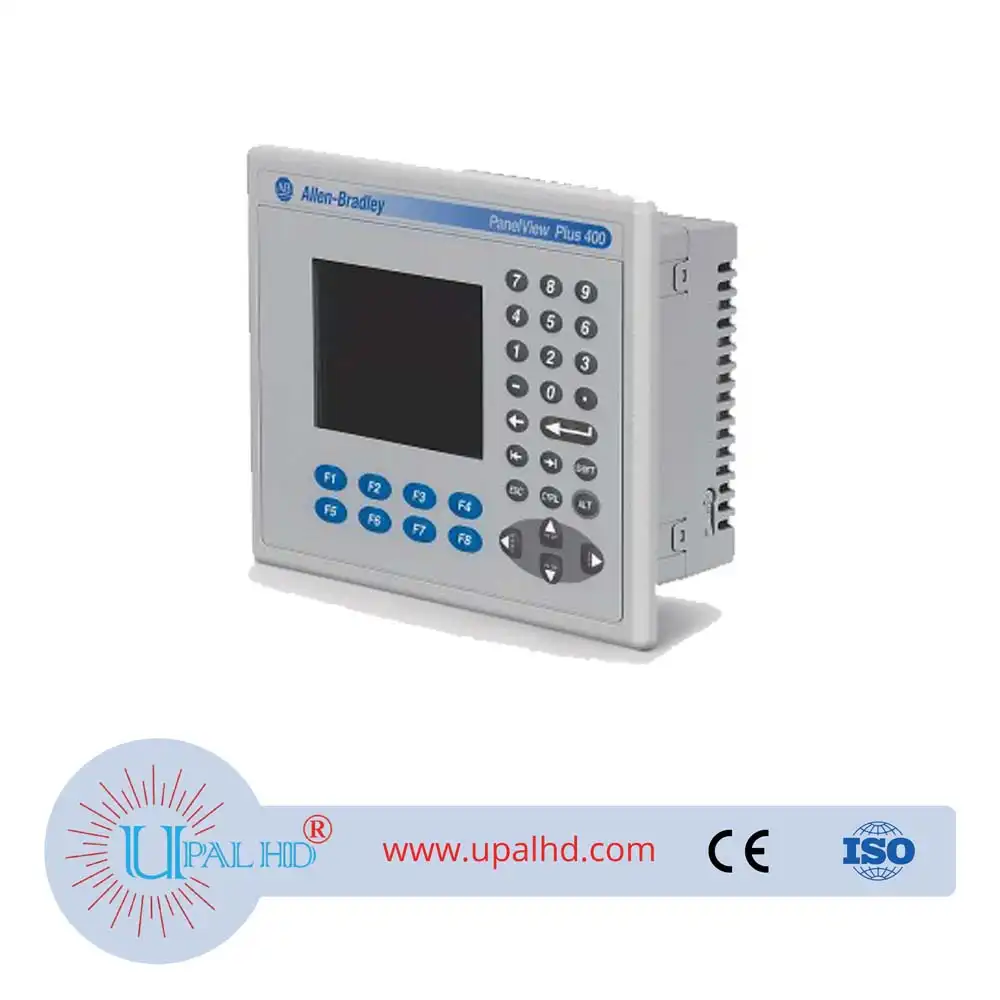

2711P-K4M20D8 American Rockwell AB 4-inch button touch screen.
2711P-K4M20D8 American Rockwell AB 4-inch button touch screen.Touch screen Model No: 2711P-K4M20D8.The Allen-Bradley 2711P-K4M20D8 is a Panelview Plus 6 400 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 3.5-inch colored display with embedded Ethernet, RS-232 communication interface and Two (2) USB peripheral ports. This operator terminal has a keypad input interface.
Description
PRODUCT INFORMATION OF 2711P-K4M20D8 American Rockwell AB 4-inch button touch screen.
| Brand | Allen-Bradley |
| Input Voltage range: | 18-32VDC |
| Integrated ports: | Ethernet, RS-232 |
| Internal memory: | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Keypad function keys: | 8 function keys (F1…F8) |
| Keypad: | 1 million presses |
| Resolution: | 320 x 240, 16-levels gray |
| Display Area: | 70 x 53 mm (2.8 x 2.3 in.) |
| Lifecycle status: | End of life |
| Display Type: | Grayscale TFT LCD |
| Product Type: | PanelView Plus 6 400 Operator Terminals |
| Product Family: | PanelView Plus 6 Operator Terminals |
| Manufacturer: | Rockwell Automation |
| Display Size | 3.5 in. |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Part Number/Catalog No. | 2711P-K4M20D8 |
| Product Line | Panelview 6 Plus |
| Display Color | Monochrome |
| Input Type | Keypad |
| Communication | Ethernet and RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 5 lbs. |
| Shipping Dimensions | 14 x 11 x 8 in |
| Series | Series A and Series B |
