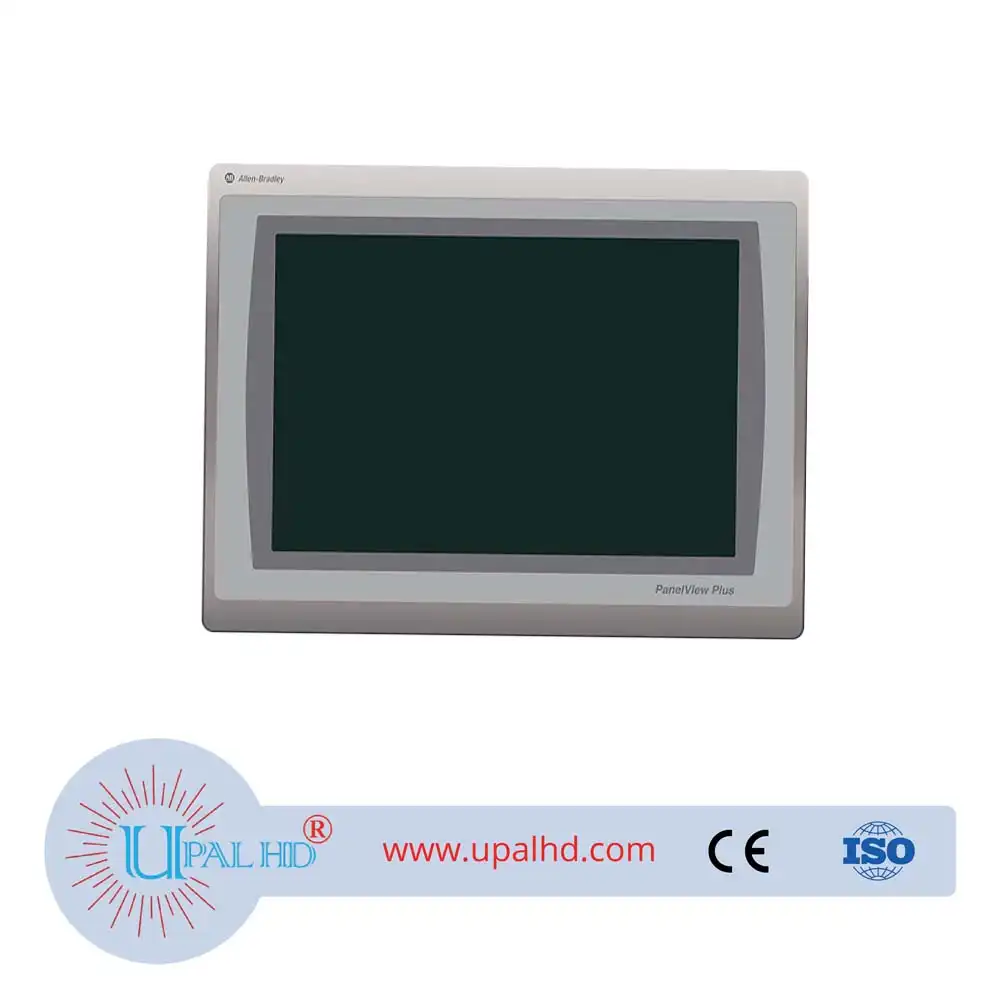

2711P-T12W22A9P Rockwell AB PanelView Plus touch screen.
2711P-T12W22A9P Rockwell AB PanelView Plus touch screen.Touch screen Model No: 2711P-T12W22A9P.The Allen-Bradley 2711P-T12W22A9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 100-240VAC. It has a 12.1-inch Color active matrix, thin-film transistor (TFT) LCD wide screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Description
PRODUCT INFORMATION OF 2711P-T12W22A9P Rockwell AB PanelView Plus touch screen.
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Backlight: | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Power Consumption: | 105VA |
| Communication ports: | Two (2) Ethernet, Three (3) USB host |
| System Memory: | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch: | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Resolution: | 1280 x 800 WXGA, 18-bit color graphics |
| Display Area: | 261 x 163 mm (10.3 x 6.4 in.) |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch |
| Product Family: | PanelView Plus 7 Performance terminals |
| Part Number/Catalog No. | 2711P-T12W22A9P |
| Display Size | 12.1 in. ; wide screen |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
| Display Color | Color |
| Memory | 512 Mb |
| Input Voltage | 100-240VAC |
| Backlight | LED |
| Weight | 5.6 LBS |
