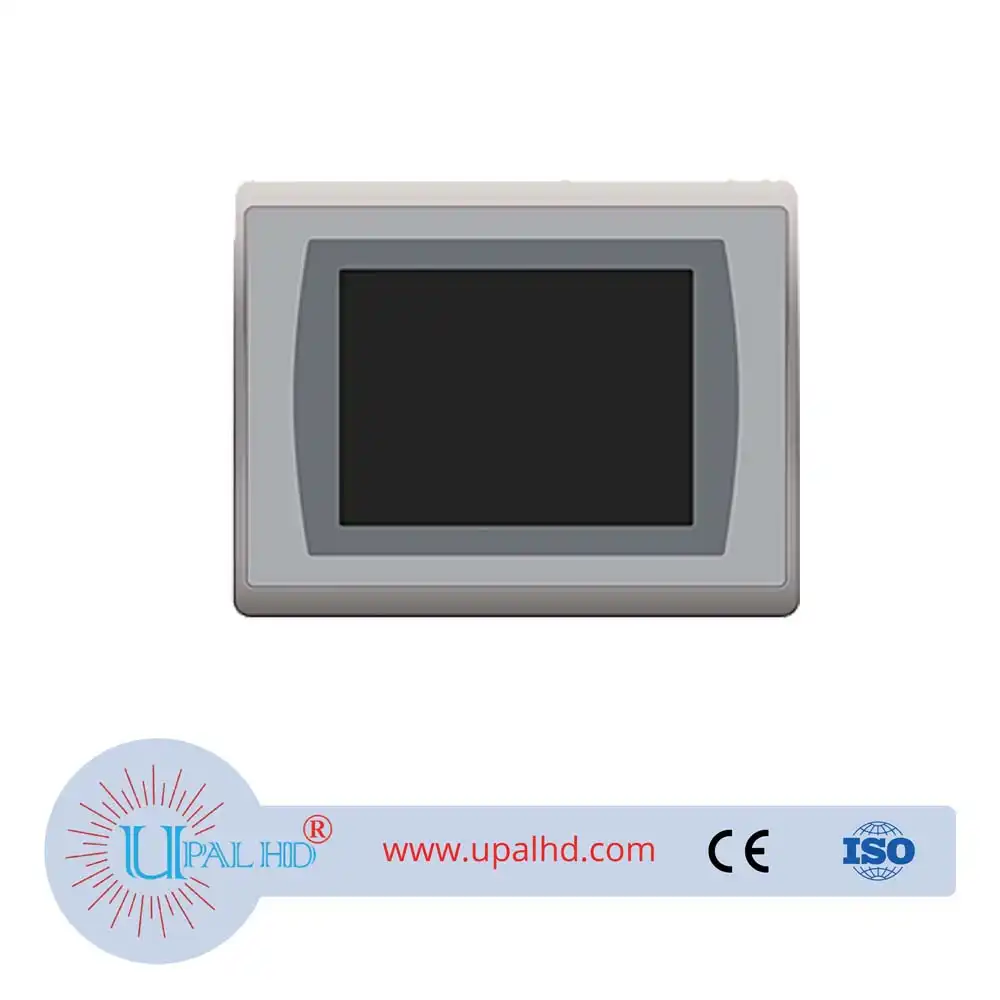

2711P-T7C21D8S-B Rockwell AB PanelView Plus touch screen.
2711P-T7C21D8S-B Rockwell AB PanelView Plus touch screen.Touch screen Model No: 2711P-T7C21D8S-B.PanelView Plus 7 Standard Terminal, Touch Screen, 6.5 inches, TFT Color, Single Ethernet, 24V DC, Windows CE OS License, Standard Model, Brandless.
Description
PRODUCT INFORMATION OF 2711P-T7C21D8S-B Rockwell AB PanelView Plus touch screen.
| Built-in depth | 56.5 mm |
| Degree of protection (IP), front side | IP66 |
| Height of the front | 170 mm |
| Number of colours of the display | 262144 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces USB | 2 |
| Operation temperature | 0…55 °C |
| Rail mounting possible | no |
| Screen size diagonal | 6.5 inch |
| Supply voltage DC | 24…24 V |
| Supporting protocol for DeviceNet | no |
| Supporting protocol for EtherNet/IP | yes |
| Type of display | TFT |
| Voltage type of supply voltage | DC |
| Wall mounting/direct mounting | yes |
| Width of the front | 212 mm |
| With colour display | yes |
| With numeric keyboard | no |
| With SW interfaces | yes |
