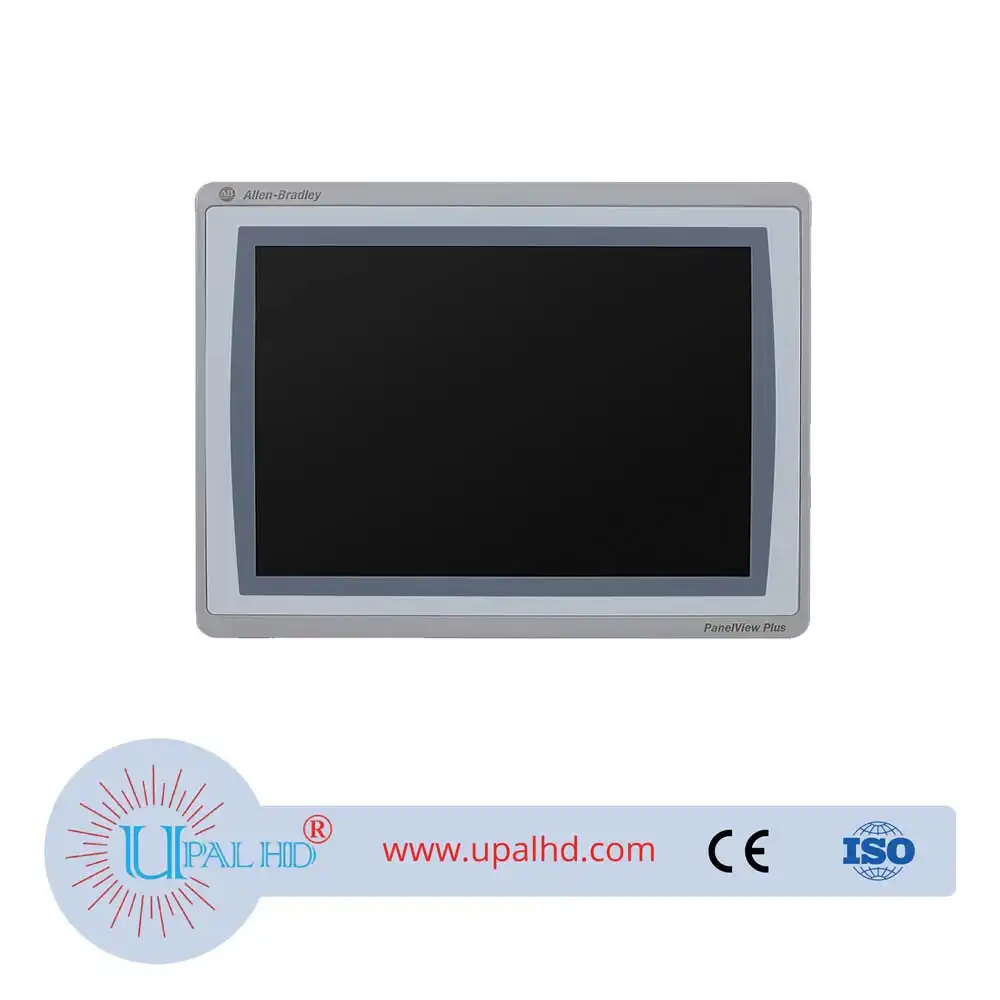

2711P-T7C22D8S Rockwell AB Panel View Plus touch screen.
2711P-T7C22D8S Rockwell AB Panel View Plus touch screen.Touch screen Model No: 2711P-T7C22D8S.The Allen-Bradley 2711P-T7C22D8S is a PanelView Plus 7 Standard operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-30VDC. It has a 6.5-inch Color active matrix, thin-film transistor (TFT) LCD with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Two (2) USB ports.
Description
PRODUCT INFORMATION OF 2711P-T7C22D8S Rockwell AB Panel View Plus touch screen.
| Brand | Allen-Bradley |
| Product Family: | PanelView Plus 7 Standard terminals |
| Backlight: | White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable |
| Power Consumption: | 50 W max (2.1 A at 24V DC) |
| Input Voltage range: | 18-30 VDC |
| Communication ports: | Two (2) Ethernet, Two (2) USB host |
| System Memory: | 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory) |
| Touch: | Analog resistive Actuation: 1 million presses; operating force: 100 g |
| Resolution: | 640 x 480 VGA, 18-bit color graphics |
| Display Area: | 132 x 99 mm |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Part Number/Catalog No. | 2711P-T7C22D8S |
| Display Size | 6.5 inches |
| Product Line | Panelview Plus 7 |
| Input Type | Touchscreen |
| Display Color | TFT Color Display |
| Memory | 512 Mb |
| Input Voltage | 24 VDC |
| Backlight | LED |
| Weight | 2.65 LBS |
