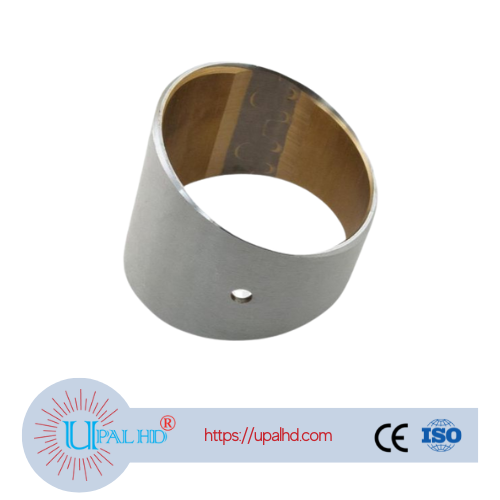

4P8495 | CATERPILLAR 3406/B/C ROD BUSHING

3406 Engine Specifications:
Year: 0-0
Liter: 14.6
CID: 893
Cyl: L 6
Bore/Stroke: 5.400-5.402″, 6.500″
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4
Comments: Diesel 92U->Connecting Rod Specifications:
Big End Housing Bore: 4.0743-4.0753″ * See Comments
Connecting Rod Torque: 60 FT/LBS + 120°
Small End Bore for Bushing: 2.1820-2.1830″ **
Small End Bore Finished ID: 2.0009-2.0015″***
Small End Oil Clearance: .0023″
Center to Center Distance: 10.2980-10.3020″
Twist/Bend: .012 / .003″ (.300 / .080 MM)
Comments: Straight Rod Assembly *TWO DIFFERENT ROD HOUSING BORES AND PIN SIZES USED 3.7869-3.7879″ 96.187-96.213 MM). ** 2.3475-2.3485″ (59.627 MM) *** 2.1667″ (55.035 MM) See Casting Numbers3406B Engine Specifications:
Year: –
VIN: B
Liter: 14.6
CID: 893
Cyl: L 6
Bore/Stroke: 5.400-5.402″, 6.500″
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4
Comments: Diesel 3406B Series, F7B1 -> Direct Injection

Connecting Rod Specifications:
Big End Housing Bore: 4.0743-4.0753″ *
Connecting Rod Torque: 54-66 FT/LBS + 120°
Small End Bore for Bushing: 2.1820-2.1830″
Small End Bore Finished ID: 2.0009-2.0015″
Center To Center Distance: 10.2980-10.3020″
Comments: Straight Rod Assembly, * Or 3.7869-3.7879″ (96.187-96.213 MM)
