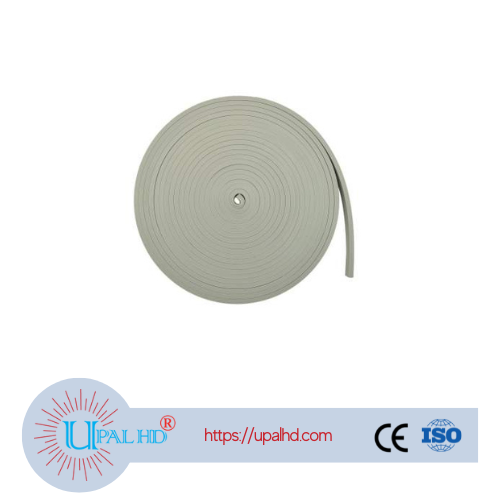

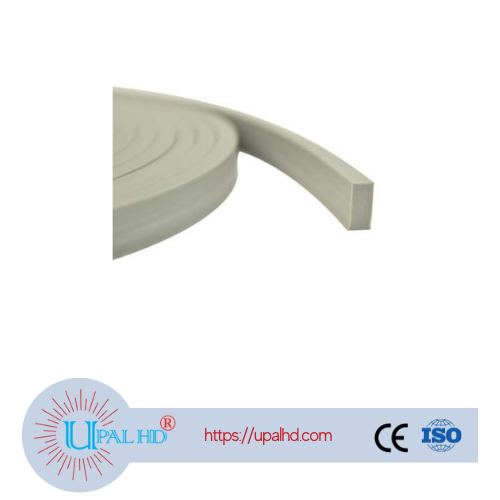

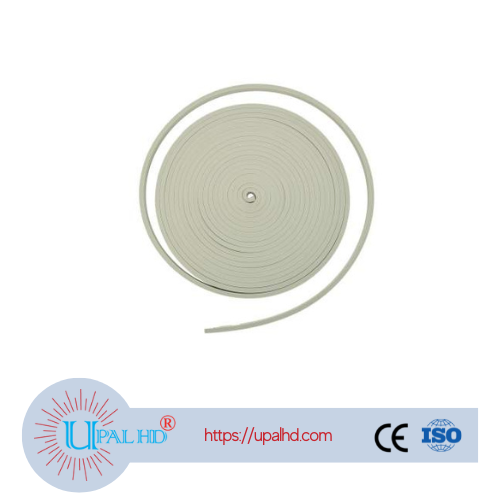

5P5678-9 | CATERPILLAR C15/C15 ACERT/3406E VALVE COVER 9M STRIP SEAL STOCK

9 meter long roll

C15 Engine Specifications:
Year: 1999-2007
Liter: 15.2
CID: 928
Cylinder: L 6
Bore/Stroke: 5.4000-5.4020″, 6.7320″
Firing Order: 1-5-3-6-2-4

Tune-Up Specifications:
Intake Valve Lash: .015″
Exhaust Valve Lash: .030″

3406 Engine Specifications:
Year 1993-2005
VIN E
Liter 14.6
CID 893
Engine Code 3406E
Cylinder L 6
VLV/CYL
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 14.5:1
Firing Order 1-5-3-6-2-4
Comments DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Tune-Up Specs:
Compression Ratio: 174.5:1
Firing Order: 1-5-3-6-2-4
Intake Valve Lash: .012-.018″ cold
Exhaust Valve Lash: .027-.033″ cold

Camshaft Specifications:
Camshaft Journal Diameter: 3.3398-3.3413″
Camshaft Gear Bolt Torque: 150-210 FT/LBS
Lobe Lift:
Intake: .3820″ Exhaust: .3352″
