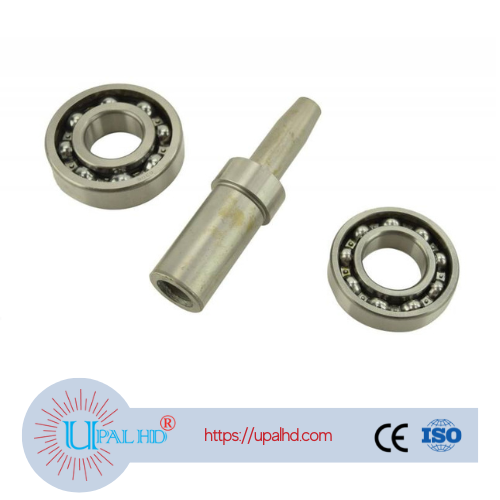

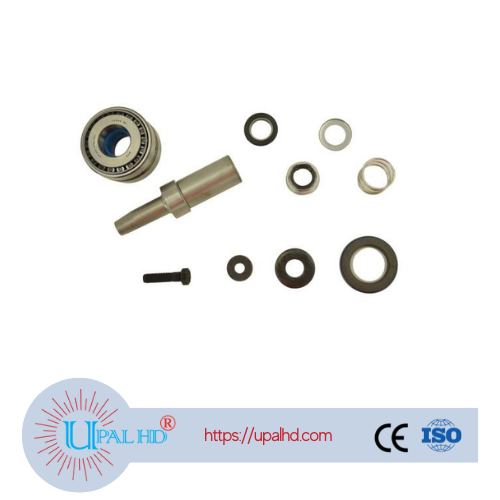

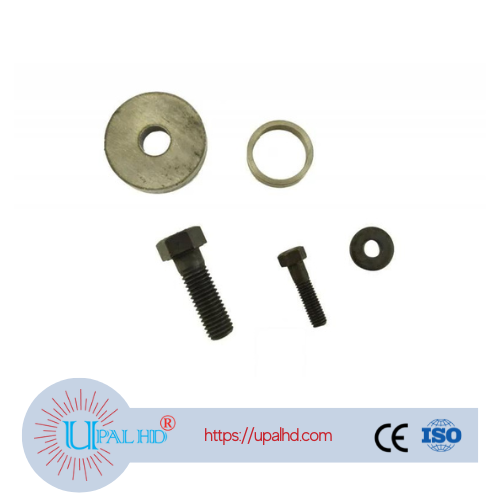

9N6289 | CATERPILLAR 3406/B/C/E BALL BEARING WATER PUMP REBUILD KIT

**Kit is for pumps with ball bearings
**Note: Match to pump via serial # & arrangementMake CATERPILLAR
Model 3406
Liter 14.6
CID 893
Engine Code 3406
Cylinder L 6
VLV/CYL
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 425 LBS
Firing Order 1-5-3-6-2-4
Comments DIESEL 3ZJ->Make CATERPILLAR
Model 3406B
VIN B
Liter 14.6
CID 893
Engine Code 3406B
Cylinder L 6
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 425 LBS
Firing Order 1-5-3-6-2-4
Comments DIESEL 3406B SERIES, F7B1-> DIRECT INJECTION

Tune-up Specifications Collapse
Compression Ratio 425 LBS
Firing Order 1-5-3-6-2-4
Ignition Timing 27° BTDC
Oil Pressure At Idle 25 LBS
Intake Valve Lash .015″ COLD
Exhaust Valve Lash .030″ COLD (.762 MM)

CATERPILLAR
Model 3406E
Year 1993-2005
VIN E
Liter 14.6
CID 893
Engine Code 3406E
Cylinder L 6
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 14.5:1
Firing Order 1-5-3-6-2-4
Comments DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Tune-Up Specs:
Compression Ratio: 174.5:1
Firing Order: 1-5-3-6-2-4
Intake Valve Lash: .012-.018″ cold
Exhaust Valve Lash: .027-.033″ cold
