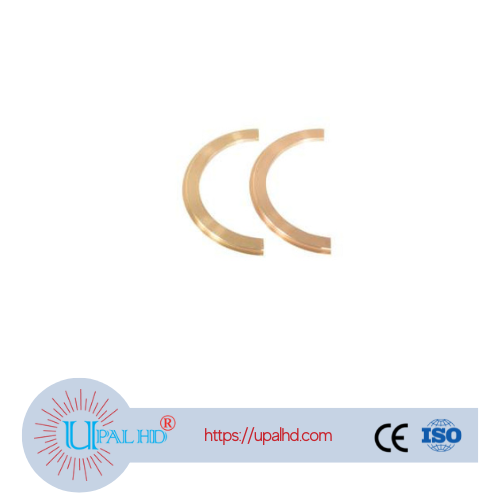

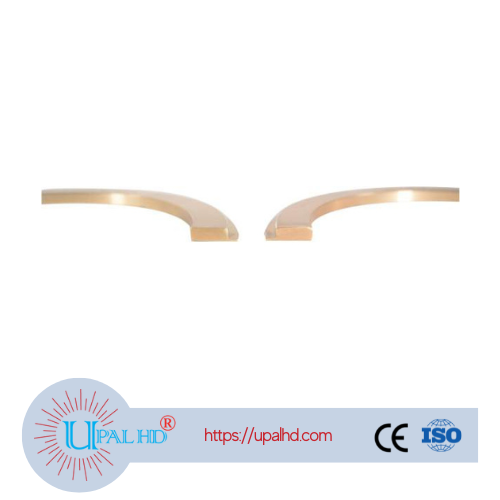

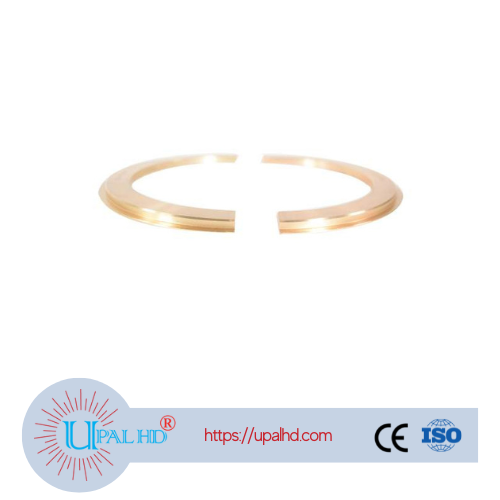

7N8947 | CATERPILLAR 3406/E/C15 THRUST WASHER

6.5L x 3W x .002H

2 Thrust Washers required

3406:
Year: 1993-2005
Liter: 14.6
CID: 893
Cylinder: L 6
Bore/Stroke: 5.400-5.402″,6.500″
Compression Ratio: 14.5:1
Firing Order:1-5-3-6-2-4
Comments: DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Tune-Up Specifications:
Intake Valve Lash: .012-.018″
Exhaust Valve Lash: .027-.033″
Lash Adjustment Method: Adjusting Screw

CATERPILLAR
Model 3406E
Year 1993-2005
VIN E
Liter 14.6
CID 893
Engine Code 3406E
Cylinder L 6
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 14.5:1
Firing Order 1-5-3-6-2-4
Comments DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Tune-Up Specs:
Compression Ratio: 174.5:1
Firing Order: 1-5-3-6-2-4
Intake Valve Lash: .012-.018″ cold
Exhaust Valve Lash: .027-.033″ cold

CATERPILLAR
Model C15
Year 1999-2007
Liter 15.2
CID 928
Engine Code C15
Cylinder L 6
Bore/Stroke 5.4000-5.4020″ (137.160-137.210 MM)6.7320″ (171.000 MM)
Firing Order 1-5-3-6-2-4
Comments DIESEL SOHC ELECTRONIC, SIMILAR TO 3406E, NON-ACERT

Tune-up Specifications
Firing Order 1-5-3-6-2-4
Intake Valve Lash .015″ (.381 MM)
Exhaust Valve Lash .030″ (.762 MM)
