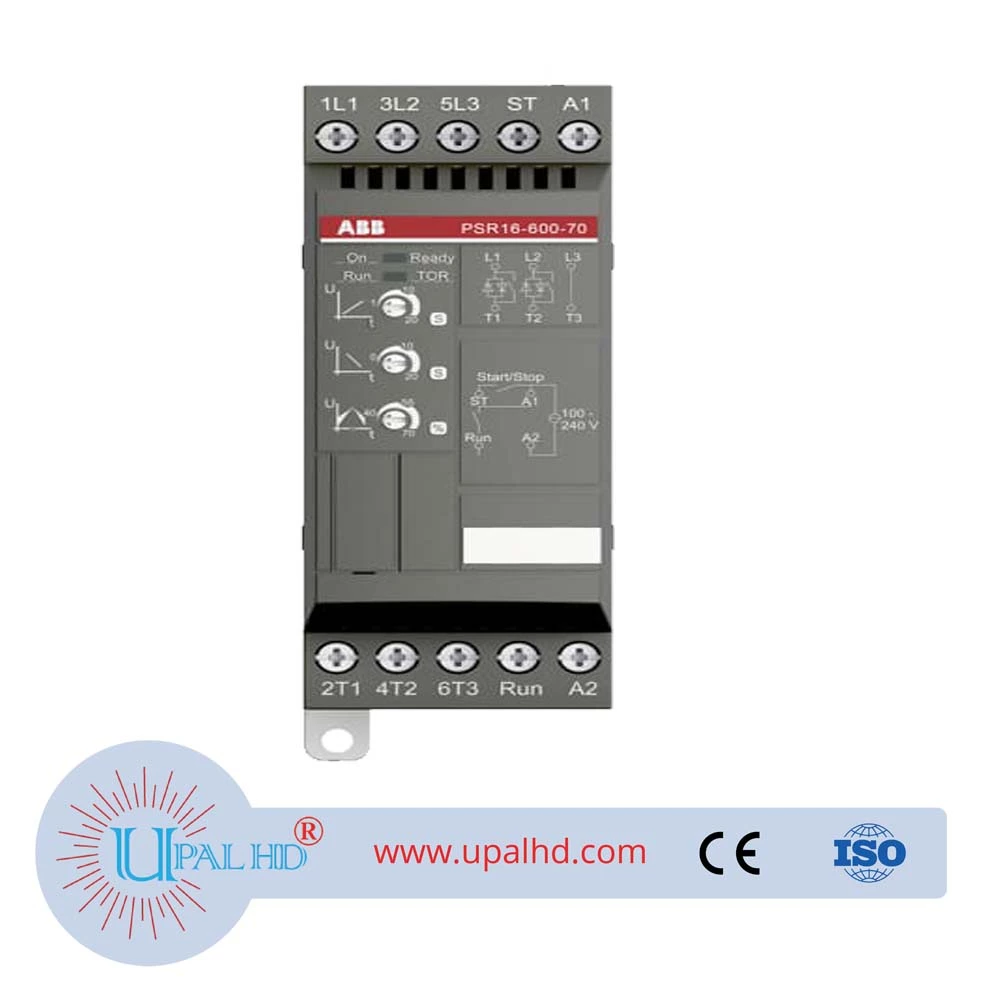

ABB compact soft starter starter controller PSR16-600-70; 10070088

Description

PRODUCT INFORMATION OF ABB compact soft starter starter controller PSR16-600-70; 10070088

General Information of ABB compact soft starter starter controller

• Global Commercial Alias:

  PSR16-600-70

• Extended Product Type:

  PSR16-600-70

• Product ID:

  1SFA896107R7000

• ABB Type Designation:

  PSR16-600-70

• EAN:

  7320500338261

• Catalog Description:

  PSR16-600-70 Softstarter

• Long Description:

  The softstarter PSR16-600-70 has a rated maximum operational current of 16 A with an operating voltage span from 208…600 V AC. The rated control voltage is between 100…240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has a built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3…105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.

Classifications of ABB compact soft starter starter controller

• Object Classification Code:

  Q

• ETIM 4:

  EC002572 – Electronic motor control and protection device

• ETIM 5:

  EC002572 – Electronic motor control and protection device

• ETIM 6:

  EC002572 – Motor management device

• eClass:

  V11.0 : 27370907

• UNSPSC:

  39121521
