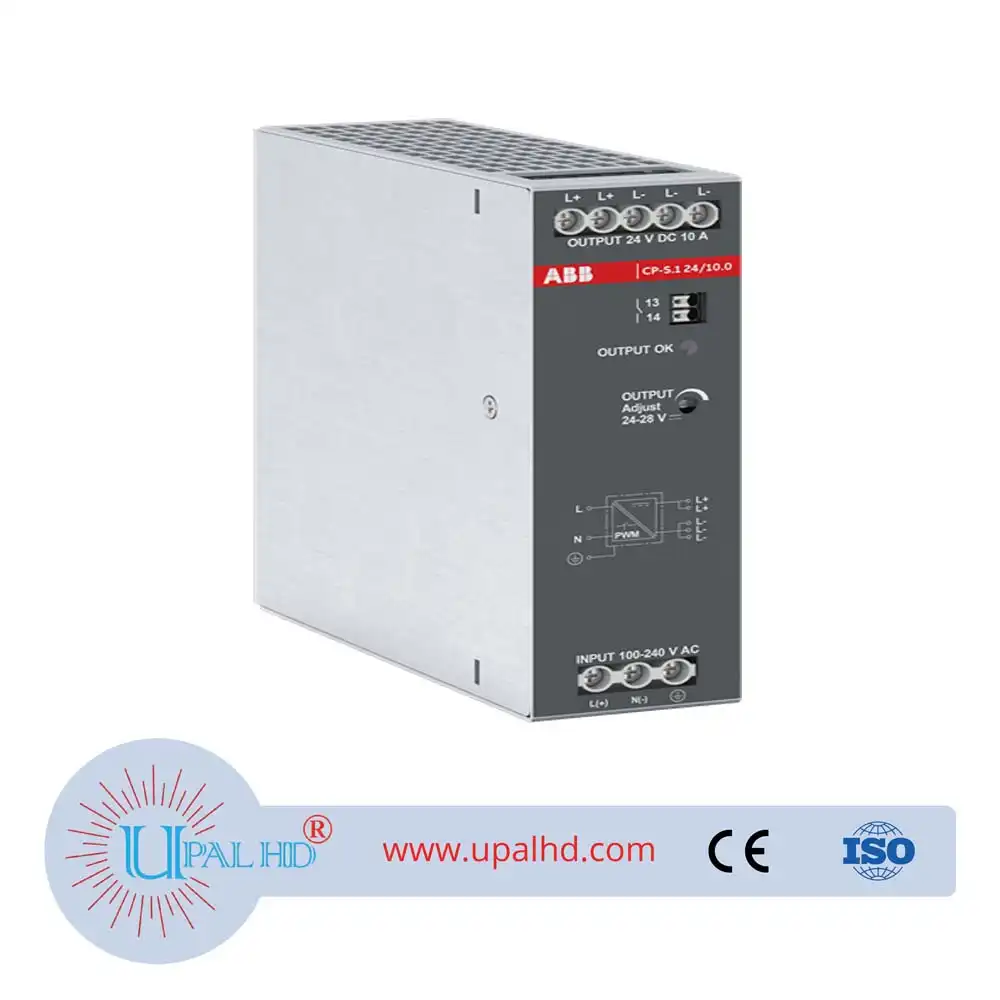

ABB CP-S.1 series switching power supply CP-S.124/10.0 Power supply; 10251964.

PRODUCT INFORMATION OF ABB CP-S.1 series switching power supply CP-S.124/10.0 Power supply; 10251964.

General Information

• Extended Product Type:

  CP-S.1 24/10.0

• Product ID:

  1SVR320661R1000

• EAN:

  4013614561115

• Catalog Description:

  CP-S.1 24/10.0 Power supply In:100-240VAC/100-250VDC Out:DC 24V/10A

• Long Description:

  The CP-S.1 24/10.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-277 V DC, rated input voltage is 100-240 V AC, respectively 100-250 V DC. The rated output power is 240 W, rated output current is 10 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.

Classifications

• Object Classification Code:

  T

• ETIM 5:

  EC002540 – DC-power supply

• ETIM 6:

  EC002540 – DC-power supply

• ETIM 7:

  EC002540 – DC-power supply

• ETIM 8:

  EC002540 – DC-power supply

• eClass:

  V11.0 : 27040701

• UNSPSC:

  39121004
