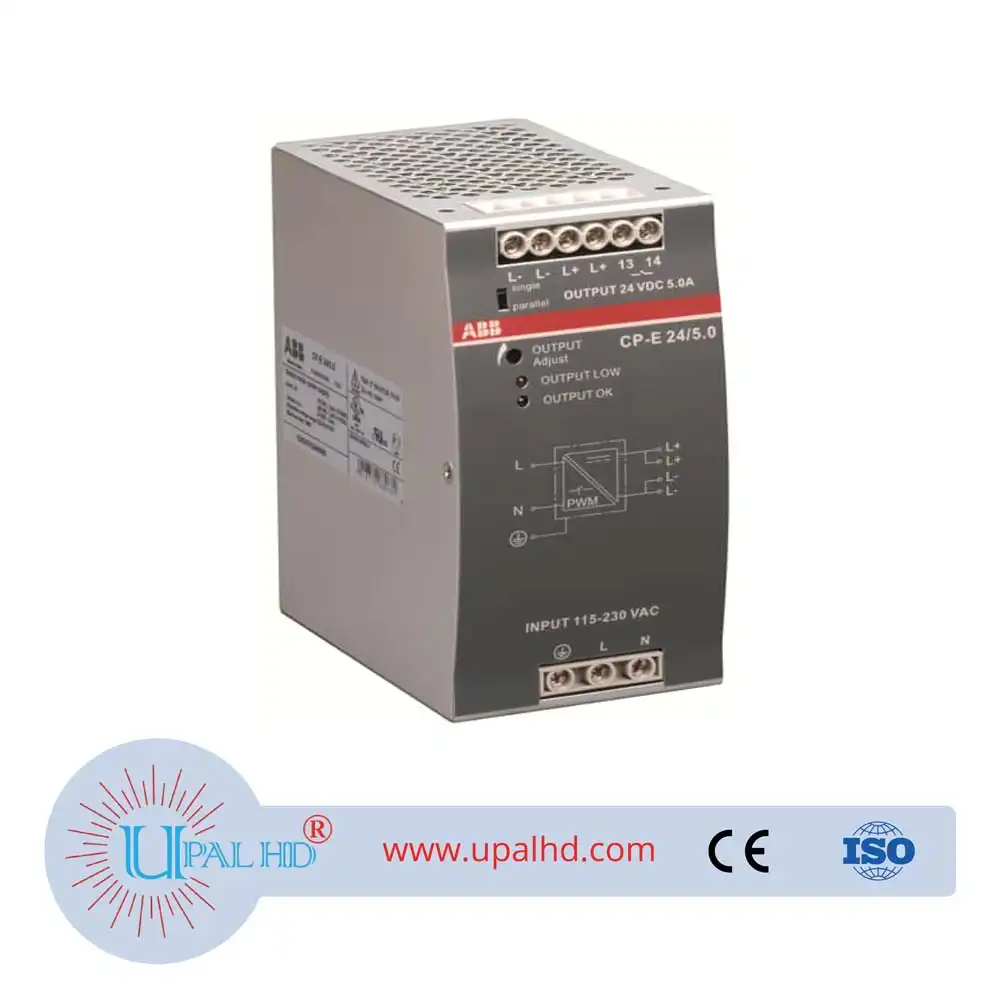

ABB CP series 24VDC DC switching power supply CP-E 24/5.0

Description

PRODUCT INFORMATION OF ABB CP series 24VDC DC switching power supply CP-E 24/5.0.

General Information of ABB CP series 24VDC DC switching power supply

• Extended Product Type:

  CP-E 24/5.0

• Product ID:

  1SVR427034R0000

• EAN:

  4016779669689

• Catalog Description:

  CP-E 24/5.0 Power supply In:115/230VAC Out: 24VDC/5A

• Long Description:

  The CP-E 24/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.

Classifications

• Object Classification Code:

  T

• ETIM 4:

  EC002540 – DC-power supply

• ETIM 5:

  EC002540 – DC-power supply

• ETIM 6:

  EC002540 – DC-power supply

• ETIM 7:

  EC002540 – DC-power supply

• ETIM 8:

  EC002540 – DC-power supply

• eClass:

  V11.0 : 27040701

• UNSPSC:

  39121004
