ABB interface relay R600RB111-24VUC/10085312.

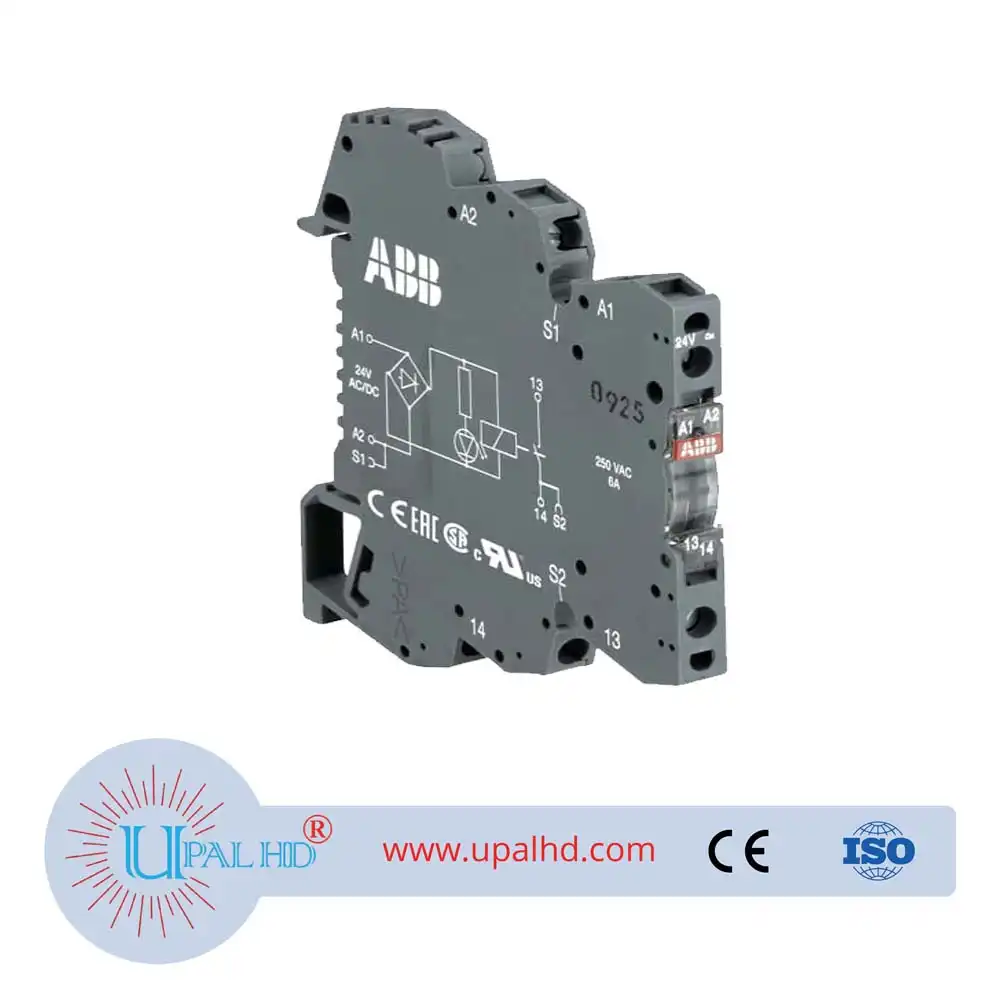

ABB interface relay R600RB111-24VUC/10085312. CR-S Sheet relays Model No: RB111-24VUC. The RB111-24VUC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 24 V AC/DC rated control supply voltage and has a 1 n/o (SPST) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
Description
PRODUCT INFORMATION OF ABB interface relay R600RB111-24VUC/10085312.
General Information
-
- Extended Product Type:
- RB111-24VUC
-
- Product ID:
- 1SNA645014R2700
-
- EAN:
- 4013614507830
-
- Catalog Description:
- RB111-24VUC Interface relay R600 1n/o,A1-A2=24VAC/DC,5-250VAC/60mA-6A
-
- Long Description:
- The RB111-24VUC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 24 V AC/DC rated control supply voltage and has a 1 n/o (SPST) output with contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
Classifications
-
- Object Classification Code:
- K
-
- ETIM 4:
- EC001437 – Switching relay
-
- ETIM 5:
- EC001437 – Switching relay
-
- ETIM 6:
- EC001437 – Switching relay
-
- ETIM 7:
- EC001437 – Switching relay
-
- ETIM 8:
- EC001437 – Switching relay
-
- eClass:
- V11.0 : 27371601
-
- UNSPSC:
- 39122331
-
- E-Number (Sweden):
- 4001116
