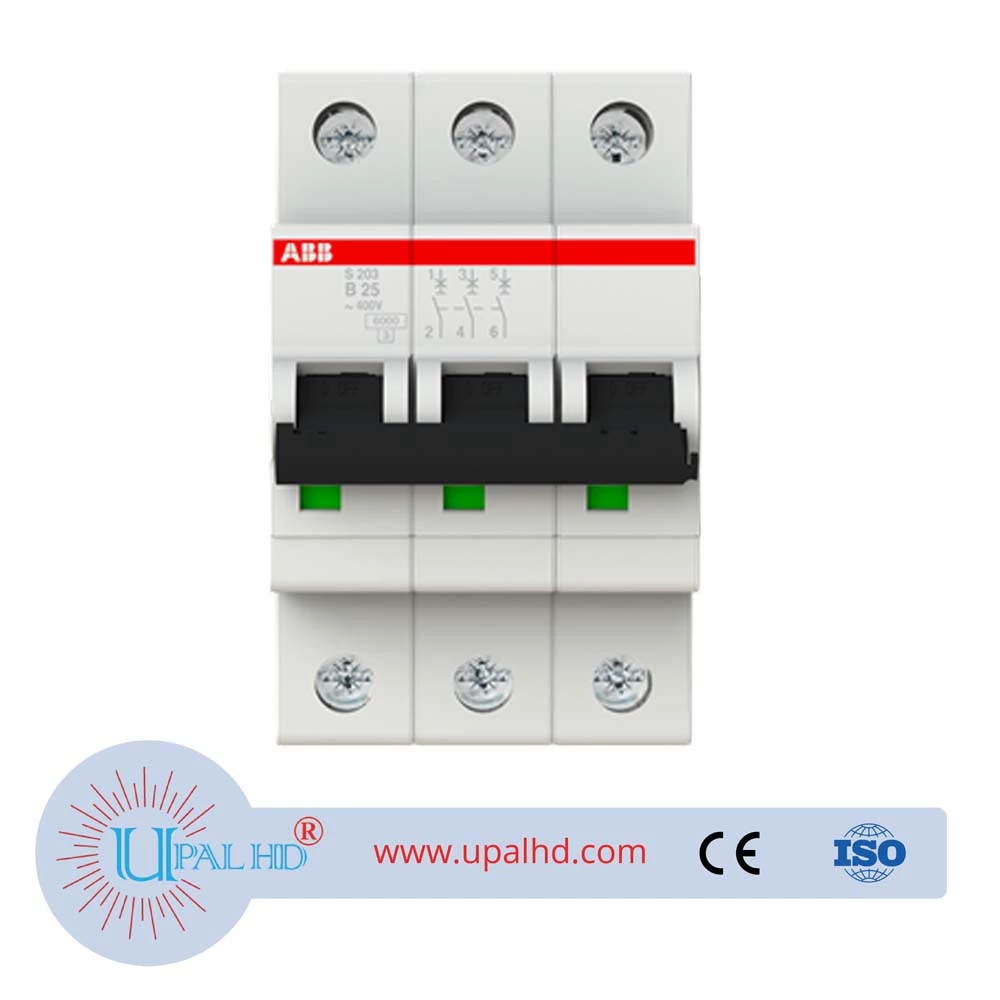

ABB micro air switch American standard UL circuit breaker short circuit protection 3P25A S203-B25; 10113575

Description

PRODUCT INFORMATION OF  ABB micro air switch American standard UL circuit breaker short circuit protection 3P25A S203-B25; 10113575

General Information

• Extended Product Type:

  S203-B25

• Product ID:

  2CDS253001R0255

• EAN:

  4016779469203

• Catalog Description:

  S203-B25 Miniature Circuit Breaker – 3P – B – 25 A

• Long Description:

  System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Classifications

• ETIM 7:

  EC000042 – Miniature circuit breaker (MCB)

• ETIM 8:

  EC000042 – Miniature circuit breaker (MCB)

• EPLAN Catalog Tree:

  Electrical engineering / Protection devices / General

• EPLAN Function Definition:

  Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6

• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)

• WEEE B2C / B2B:

  Business To Business

• CN8:

  8536 20 10

• UNSPSC:

  39121614

• eClass:

  V11.0 : 27141901

• Object Classification Code:

  F
