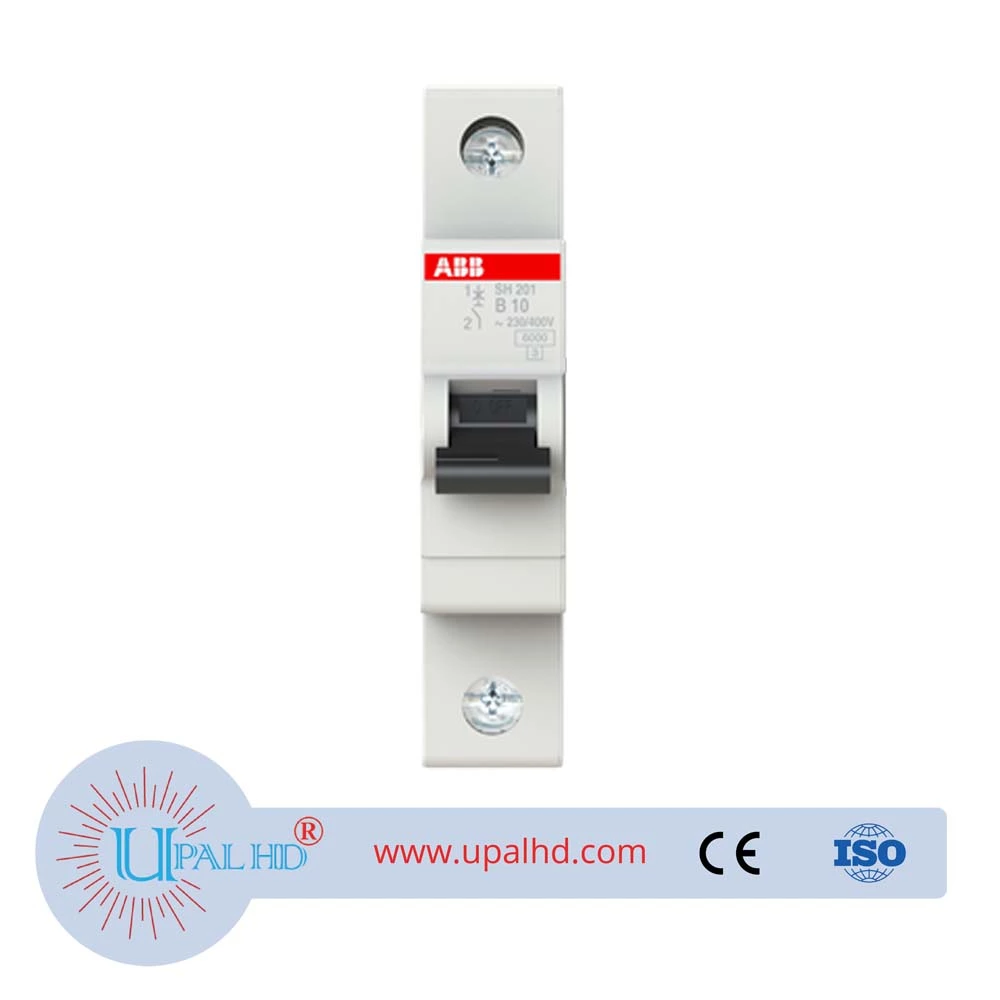

ABB miniature circuit breaker single-in single-out air switch micro-break SH201-B10; 10103905

Description

PRODUCT INFORMATION OF ABB miniature circuit breaker single-in single-out air switch micro-break SH201-B10; 10103905

General Information

• Extended Product Type:

  SH201-B10

• Product ID:

  2CDS211001R0105

• EAN:

  4016779630610

• Catalog Description:

  SH201-B10 Miniature Circuit Breaker – 1P – B – 10 A

• Long Description:

  Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),
  configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Classifications

• ETIM 7:

  EC000042 – Miniature circuit breaker (MCB)

• ETIM 8:

  EC000042 – Miniature circuit breaker (MCB)

• EPLAN Catalog Tree:

  Electrical engineering / Protection devices / General

• EPLAN Function Definition:

  Circuit breaker / Single circuit breaker / Circuit breaker 1_2

• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)

• WEEE B2C / B2B:

  Business To Business

• CN8:

  8536 20 10

• UNSPSC:

  39121614

• eClass:

  V11.0 : 27141901

• Object Classification Code:

  F
