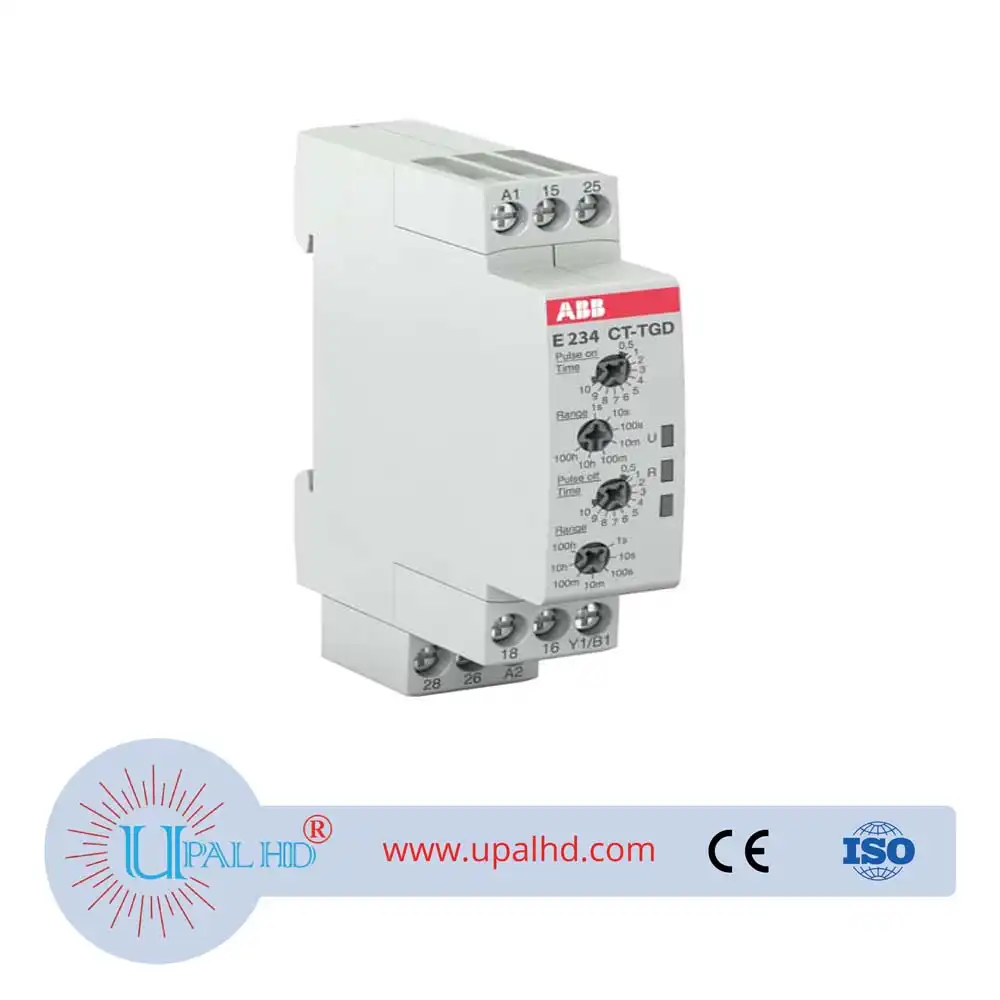

ABB official genuine electronic time relay monitor CT-TGD.22,2c o,24-240V.

PRODUCT INFORMATION OF ABB official genuine electronic time relay monitor CT-TGD.22,2c o,24-240V.

General Information

• Extended Product Type:

  CT-TGD.22

• Product ID:

  1SVR500160R0100

• EAN:

  4016779657693

• Catalog Description:

  CT-TGD.22 Time relay, pulse generator 2c/o, 24-48VDC, 24-240VAC

• Long Description:

  The CT-TGD.22 is a single-function electronic time relay from the CT-D timer range. It provides a pulse generator (recycling unequal times) function with 2×7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 5 A. A control input works with voltage-related (non-floating) triggering.

Classifications

• Object Classification Code:

  K

• ETIM 4:

  EC001439 – Timer relay

• ETIM 5:

  EC001439 – Timer relay

• ETIM 6:

  EC001439 – Timer relay

• ETIM 7:

  EC001439 – Timer relay

• ETIM 8:

  EC001439 – Timer relay

• eClass:

  V11.0 : 27371605

• UNSPSC:

  39121519
