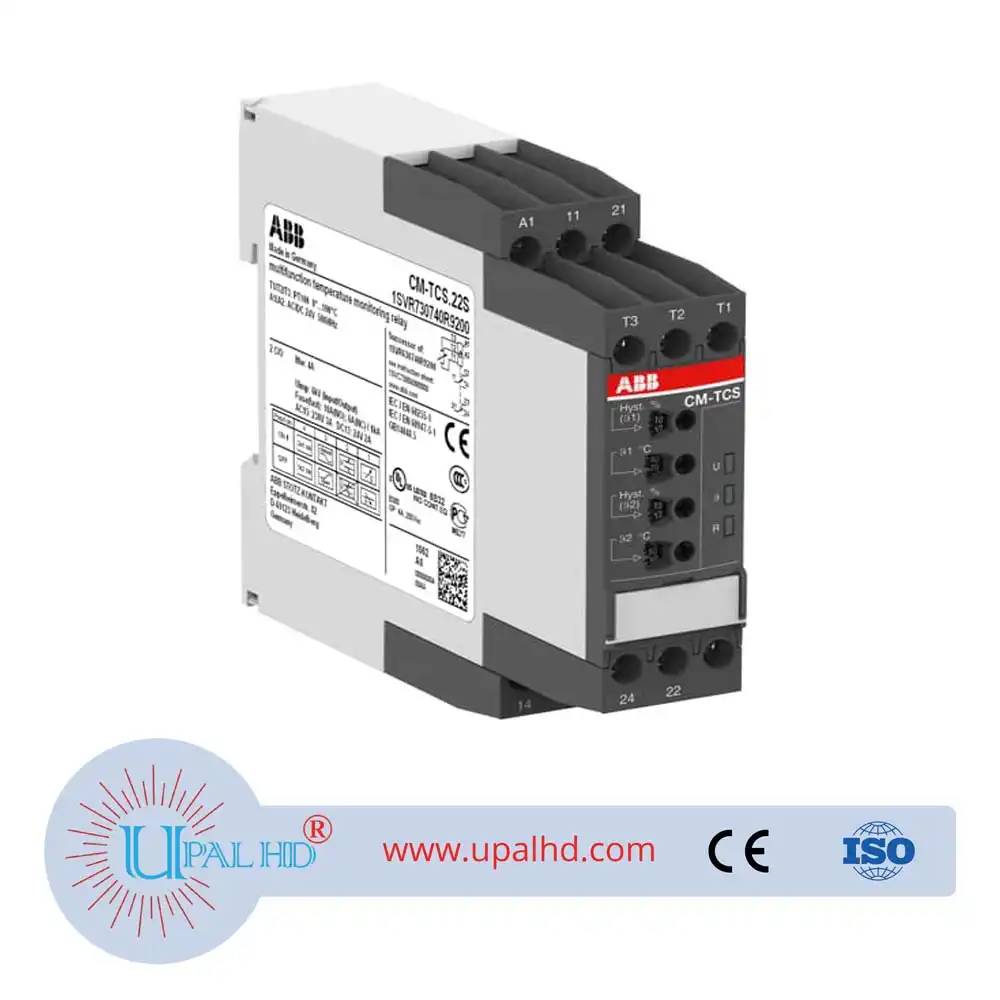

ABB PT100 temperature monitoring relay CM-TCS.22S, 24VAC/DC, 10111683.

PRODUCT INFORMATION OF ABB PT100 temperature monitoring relay CM-TCS.22S, 24VAC/DC, 10111683.

General Information

• Extended Product Type:

  CM-TCS.22S

• Product ID:

  1SVR730740R9200

• EAN:

  4016779852753

• Catalog Description:

  CM-TCS.22S Temperature monitoring relay Temp.-range 0…+100°C, 24VAC/DC

• Long Description:

  The CM-TCS.22S relay is from the CM temperature monitors range. This relay operates with a rated control supply voltage of 24 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. The CM-TCS.22S is able to measure temperature with 1 sensor circuit using PT100 sensor. The CM-TCS.22S monitors overtemperature, undertemperature and window monitoring with 2 thresholds. The corresponding threshold values are adjustable. The temperature measuring range is 0..+100°C. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

• Object Classification Code:

  B

• ETIM 4:

  EC001446 – Temperature monitoring relay

• ETIM 5:

  EC001446 – Temperature monitoring relay

• ETIM 6:

  EC001446 – Temperature monitoring relay

• ETIM 7:

  EC001446 – Temperature monitoring relay

• ETIM 8:

  EC001446 – Temperature monitoring relay

• eClass:

  V11.0 : 27371810

• UNSPSC:

  39122331
