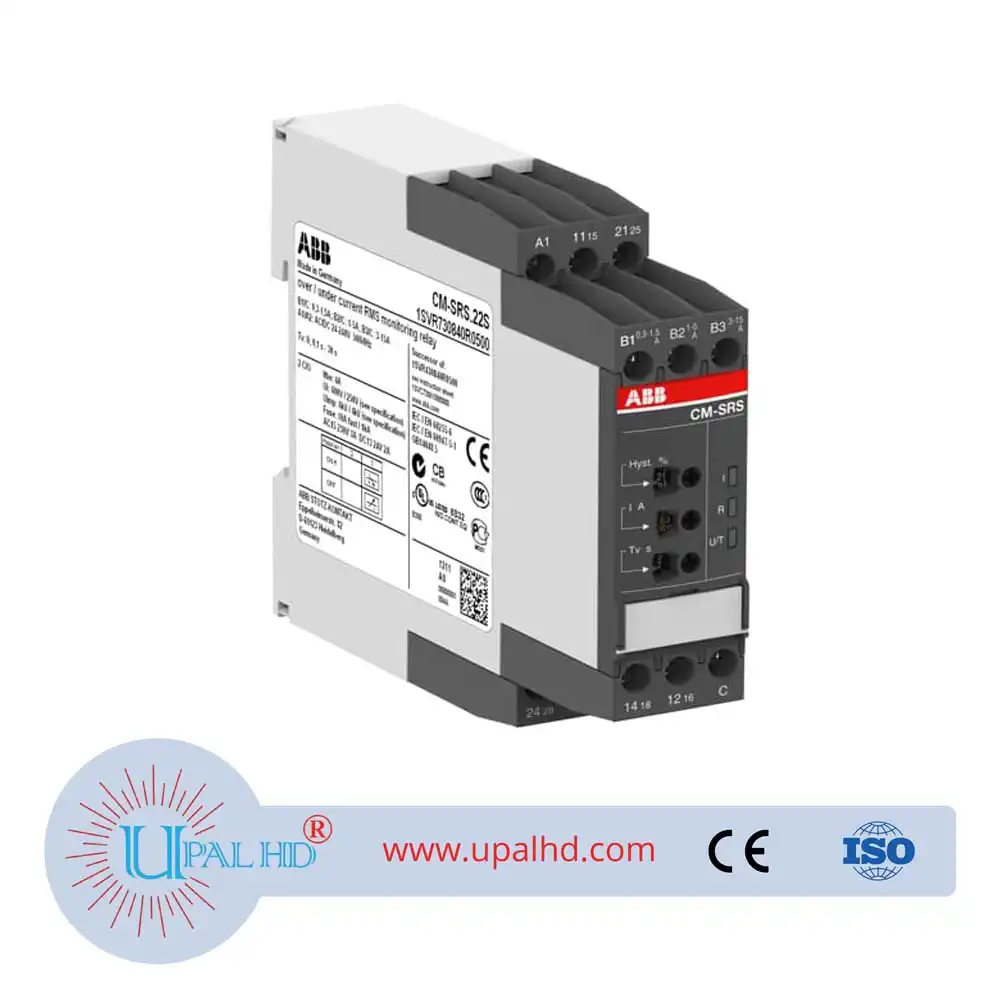

ABB single-phase current monitoring relay CM-SRS.22S, 220-240V AC, 10074747.

PRODUCT INFORMATION OF ABB single-phase current monitoring relay CM-SRS.22S, 220-240V AC, 10074747.

General Information of ABB single-phase current monitoring relay

• Extended Product Type:

  CM-SRS.22S

• Product ID:

  1SVR730840R0500

• EAN:

  4016779852258

• Catalog Description:

  CM-SRS.22S Current monitoring relay 2c/o,B-C=0.3-15A RMS, 24-240VAC/DC

• Long Description:

  The CM-SRS.22S is a single-functional current monitoring relay from the CM single-phase monitors range. This monitoring relay operates with a rated control supply voltage of 24 – 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. It provides a RMS measuring principle for DC and AC currents with 3 measuring ranges: 0.3-1.5 A, 1-5 A and 3-15 A and works according to the open-circuit principle. The CM-SRS.22S is configurable for over- or undercurrent monitoring. The hysteresis is adjustable within a range of 3 to 30 % of the threshold value and the tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Classifications

• Object Classification Code:

  B

• ETIM 4:

  EC001440 – Current monitoring relay

• ETIM 5:

  EC001440 – Current monitoring relay

• ETIM 6:

  EC001440 – Current monitoring relay

• ETIM 7:

  EC001440 – Current monitoring relay

• ETIM 8:

  EC001440 – Current monitoring relay

• eClass:

  V11.0 : 27371802

• UNSPSC:

  39121514
