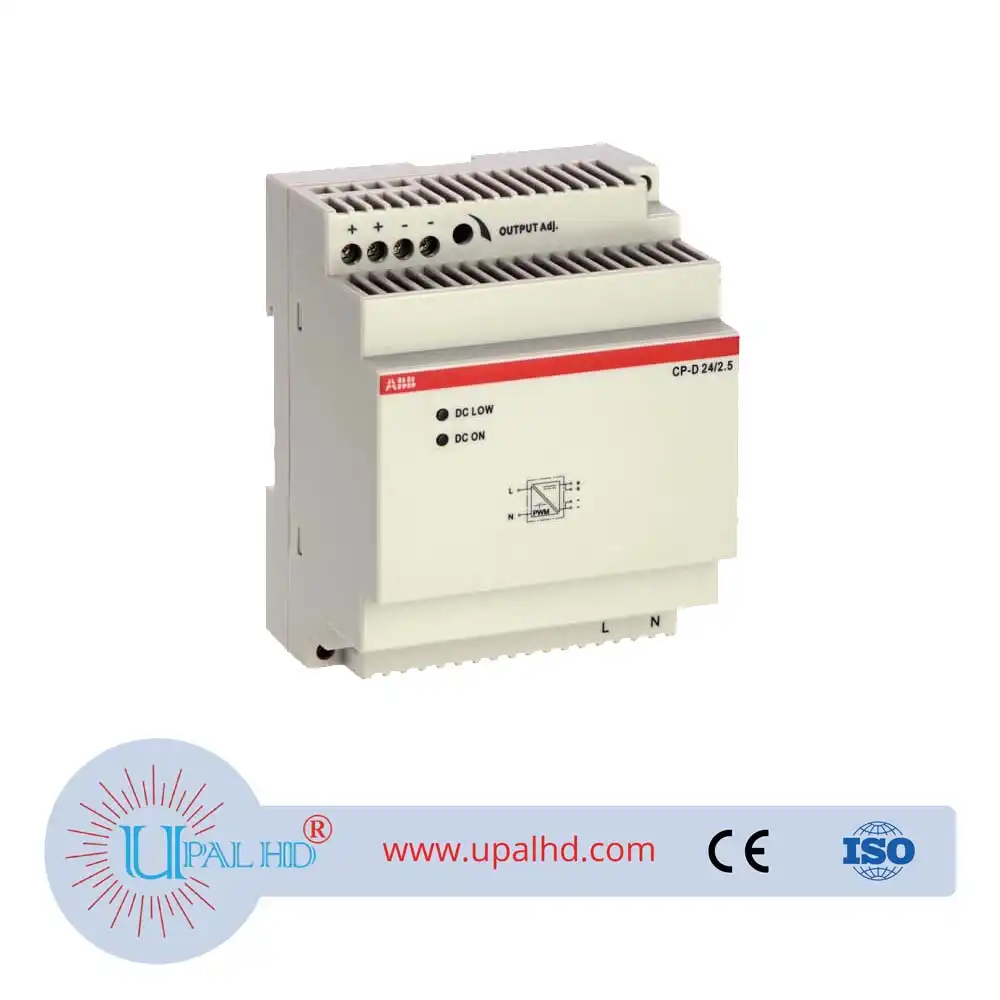

ABB switch voltage CP-D series CP-D 24/2.5; 10141010.

PRODUCT INFORMATION OF ABB switch voltage CP-D series CP-D 24/2.5; 10141010.

General Information

• Extended Product Type:

  CP-D 24/2.5

• Product ID:

  1SVR427044R0200

• EAN:

  4016779661188

• Catalog Description:

  CP-D 24/2.5 Power supply In: 100-240VAC Out: 24VDC/2.5A

• Long Description:

  The CP-D 24/2.5 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 60 W, rated output current is 2.5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.

Classifications

• Object Classification Code:

  T

• ETIM 4:

  EC002540 – DC-power supply

• ETIM 5:

  EC002540 – DC-power supply

• ETIM 6:

  EC002540 – DC-power supply

• ETIM 7:

  EC002540 – DC-power supply

• ETIM 8:

  EC002540 – DC-power supply

• eClass:

  V11.0 : 27040701

• UNSPSC:

  39121004
