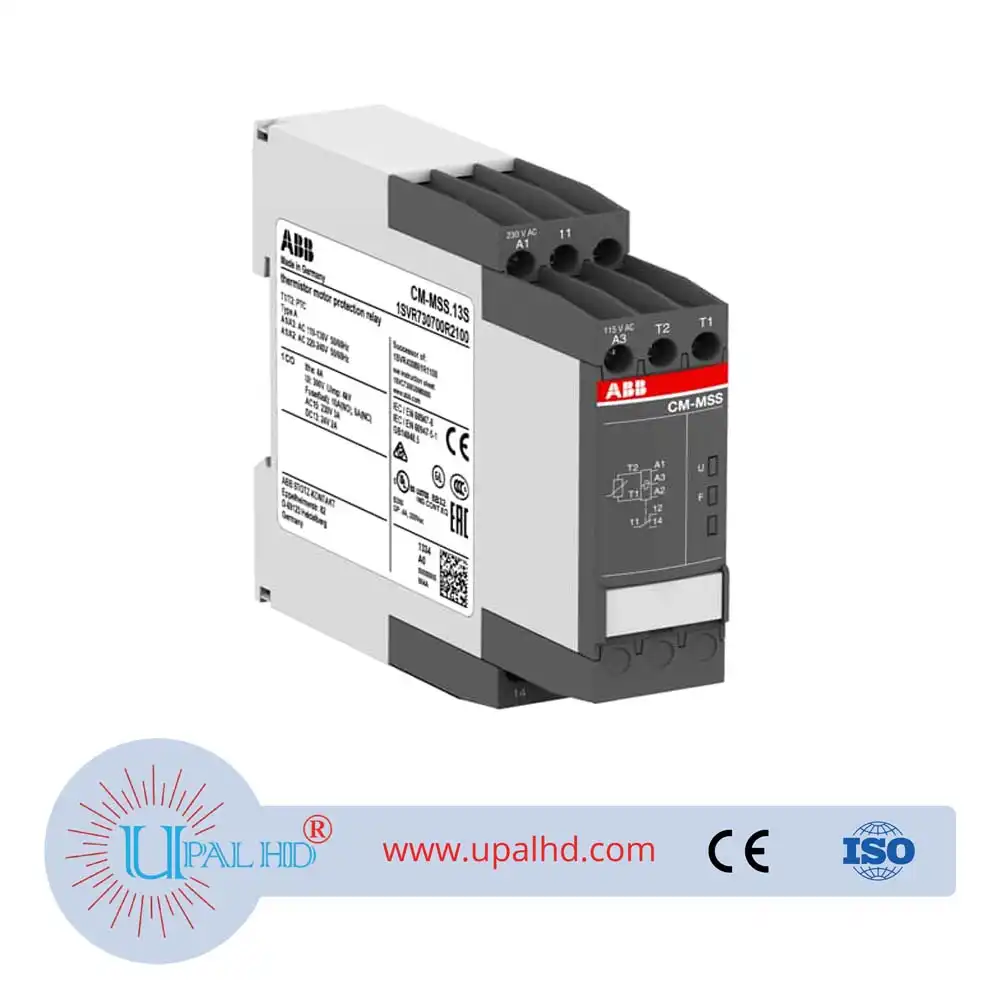

ABB thermistor motor protection relay CM-MSS.13S/10156602.

PRODUCT INFORMATION OF ABB thermistor motor protection relay CM-MSS.13S/10156602.

General Information

• Extended Product Type:

  CM-MSS.13S

• Product ID:

  1SVR730700R2100

• EAN:

  4013614496707

• Catalog Description:

  CM-MSS.13S Therm. motor protec. relay 1c/o, 110-130VAC/220-240VAC

• Long Description:

  The CM-MSS.13S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 110-130 V AC and 220-240 V AC and has a 1 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay will be reset automatically after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Classifications

• Object Classification Code:

  B

• ETIM 5:

  EC002568 – Temperature monitor (motor protection)

• ETIM 6:

  EC002568 – Relay for thermistor protection (PTC)

• ETIM 7:

  EC002568 – Relay for thermistor protection (PTC)

• ETIM 8:

  EC002568 – Relay for thermistor protection (PTC)

• eClass:

  V11.0 : 27371503
