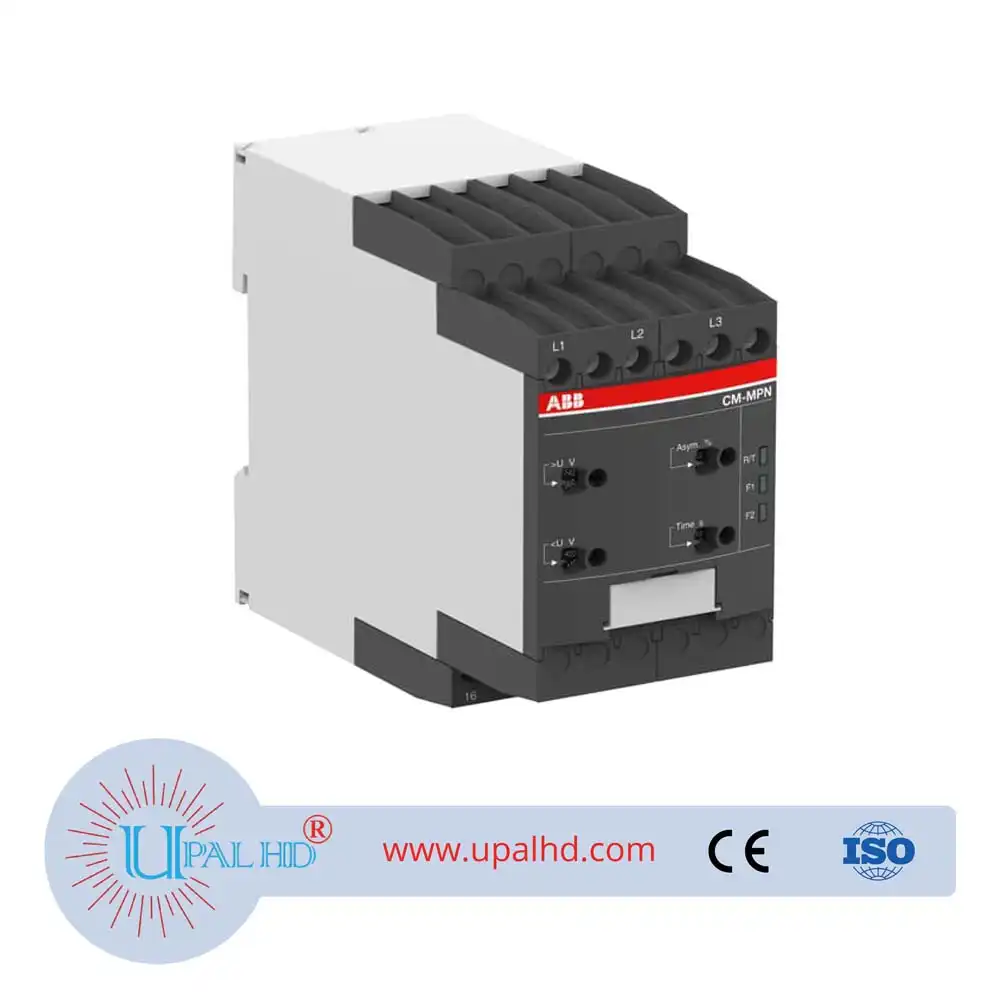

ABB three-phase voltage monitor CM-MPN.52P/10133817.

PRODUCT INFORMATION OF ABB three-phase voltage monitor CM-MPN.52P/10133817.

General Information of ABB three-phase voltage monitor

• Extended Product Type:

  CM-MPN.52P

• Product ID:

  1SVR760487R8300

• EAN:

  4016779852098

• Catalog Description:

  CM-MPN.52P Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3×350-580VAC

• Long Description:

  The CM-MPN.52S is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 350-580 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable. The CM-MPN.52S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1×2 c/o (SPDT) contacts (common signal) or 2×1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation. The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

Classifications

• Object Classification Code:

  B

• ETIM 4:

  EC001441 – Phase monitoring relay

• ETIM 5:

  EC001441 – Phase monitoring relay

• ETIM 6:

  EC001441 – Phase monitoring relay

• ETIM 7:

  EC001441 – Phase monitoring relay

• eClass:

  V11.0 : 27371803

• UNSPSC:

  39121536
