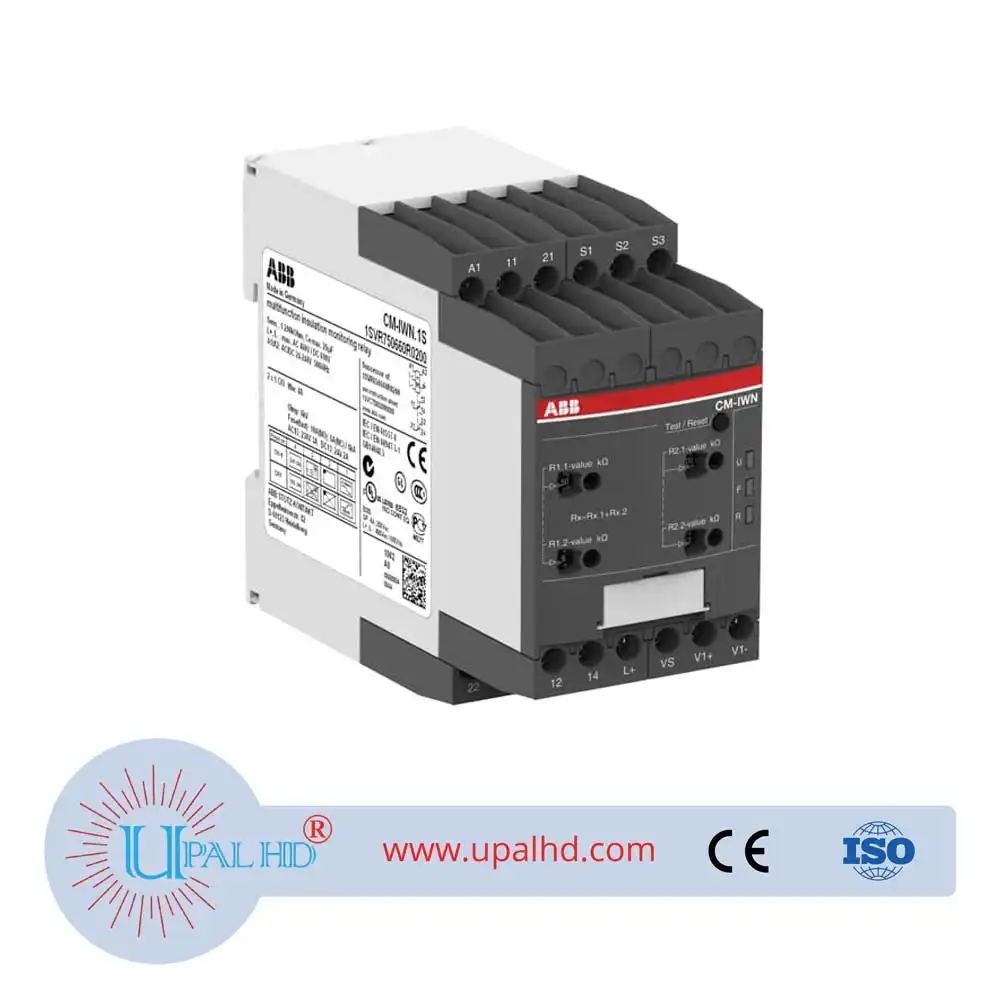

ABB ungrounded system insulation monitor CM-IWN.1S/10108134.

PRODUCT INFORMATION OF ABB ungrounded system insulation monitor CM-IWN.1S/10108134.

General Information

• Extended Product Type:

  CM-IWN.1S

• Product ID:

  1SVR750660R0200

• EAN:

  4016779852623

• Catalog Description:

  CM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC

• Long Description:

  The CM-IWN.1S serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems with a voltage up to 400 V AC and 600 V DC. The measuring range can be extended up to 690 V AC and 1000 V DC by using the coupling unit CM-IVN. It can be configured to the requirements of the applications and therefore used multi-functional.

Classifications

• Object Classification Code:

  B

• ETIM 4:

  EC001444 – Insulation and earth fault monitoring relay

• ETIM 5:

  EC001444 – Insulation and earth fault monitoring relay

• ETIM 6:

  EC001444 – Insulation and earth fault monitoring relay

• ETIM 7:

  EC001444 – Insulation and earth fault monitoring relay

• eClass:

  V11.0 : 27371807
