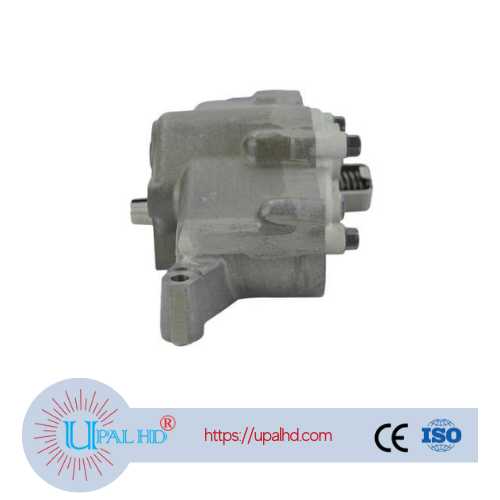

0R9449 | CATERPILLAR C15 OIL PUMP, NEW (1614113)

General Information:
Caterpillar 3406 Engine Specifications:
Year: –
Liter: 14.6
CID:893
Cylinders: L 6
Bore/Stroke: 5.4000-5.4020″ (137.160-137.211 MM)6.500″ (165.100 MM)
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4Tune-Up Specifications:
Oil Pressure At Idle: 25 LBS
Oil Pressure: 75 LBS
Intake Valve Lash: .015″ COLD
Exhaust Valve Lash: .030″ COLD (.762 MM)
Notes: DIESEL 92U->Caterpillar 3406 Engine Specifications:
Year: 1980-1988
Liter: 14.6
CID: 893
Cylinders: L 6
Bore/Stroke: 5.4000-5.4020″ (137.160-137.211 MM)6.500″ (165.100 MM)
Compression Ratio: 425 LBS
Firing Order: 1-5-3-6-2-4

Tune-Up Specifications:
Oil Pressure At Idle: 25 LBS
Oil Pressure: –
Intake Valve Lash: .015″ COLD
Exhaust Valve Lash: .030″ COLD (.762 MM)
Notes: 3406B SERIES, F7B1-> DIRECT INJECTION

Caterpillar 3406 Engine Specifications:
Year: 1993-2005
Liter: 14.6
CID: 893
Cylinders: L 6
Bore/Stroke: 5.4000-5.4020″ (137.16-137.211 MM)6.500″ (165.100 MM)
Compression Ratio: 14.5:1
Firing Order: 1-5-3-6-2-4

Tune-Up Specifications:
Oil Pressure At Idle: –
Oil Pressure: –
Intake Valve Lash: .012-.018″
Exhaust Valve Lash: .027-.033″ (.686-.838 MM)
Notes: IESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Caterpillar 3406 Engine Specifications:
Year: 1995-1999
Liter: 14.6
CID: 893
Cylinders: L 6
Bore/Stroke: 5.3937″ (137. MM)6.500″ (165.1 MM)
Compression Ratio: 14.5:1 RATIO
Firing Order: 1-5-2-4-3-6

Tune-Up Specifications:
Oil Pressure At Idle: –
Oil Pressure: –
Intake Valve Lash: .012-.018″ Cold
Exhaust Valve Lash: .027-.033″ Cold
Notes: DIESEL 3406C TRUCK

Casting Number–Type–Comments
3039185- Block-SINGLE PAN BOLT PATTERN
3036117-Camshaft
3895809-Camshaft-L10
3027931-Crankshaft
3819624-Crankshaft
3819989-Crankshaft
3042786-Flywheel-2.937″ CUP DIMENSION
3071614-Flywheel -FLAT WITH RAISED OUTER AREA
3055721-Head
3856295-Head
7E9432 – Block, 3406C TRUCK ENGINE
1527648 – Block
6N4991 – Camshaft, 3406
6N4990 , Camshaft
4P9121 – Crankshaft, 3406C TRUCK ENGINE
7C3536 – Crankshaft, 3406C TRUCK ENGINE
9Y9112 – Crankshaft, 3406C TRUCK ENGINE, 1.891-1.899 THRUST, 4 RC MIN JOURNAL HARDNESS
9N2646 – Flywheel
7N9146 – Flywheel, MIN THICKNESS 1.9200″ USED IN FORD TRUCKS
4W6707 – Flywheel
9Y3777 – Head, 3406C TRUCK ENGINE
7E9580 – Head
7E0034 – Rod, HEAVY ROD, 1991->, PIN SIZE 2.00″
9Y6048 – Rod, 3406C 1992->, 3406E 1993->, PIN SIZE 2.165″
7E5996 – Rod
6N3911 – Rod
8N1726 – Rod
9Y6054 – Rod
152-7648 – Block
136-7329 – Block
4P9121 – Crankshaft, 1.891-1.899 THRUST, 48 RC MIN JOURNAL HARDNESS
7N9146 – Flywheel, MIN THICKNESS 1.9200″ USED IN FORD TRUCKS
4P1599 – Head
10R4359 – Head
9Y6048 – Rod
1608178 – Rod
7N3229 – Rod
8N1728 – Rod

Notes:
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened component life.
Oil Pump Length: 14.3 Inches
Oil Pump Height: 7 Inches
Oil Pump Width: 9.3 Inches
Oil Pump Weight: 22.2 Pounds
