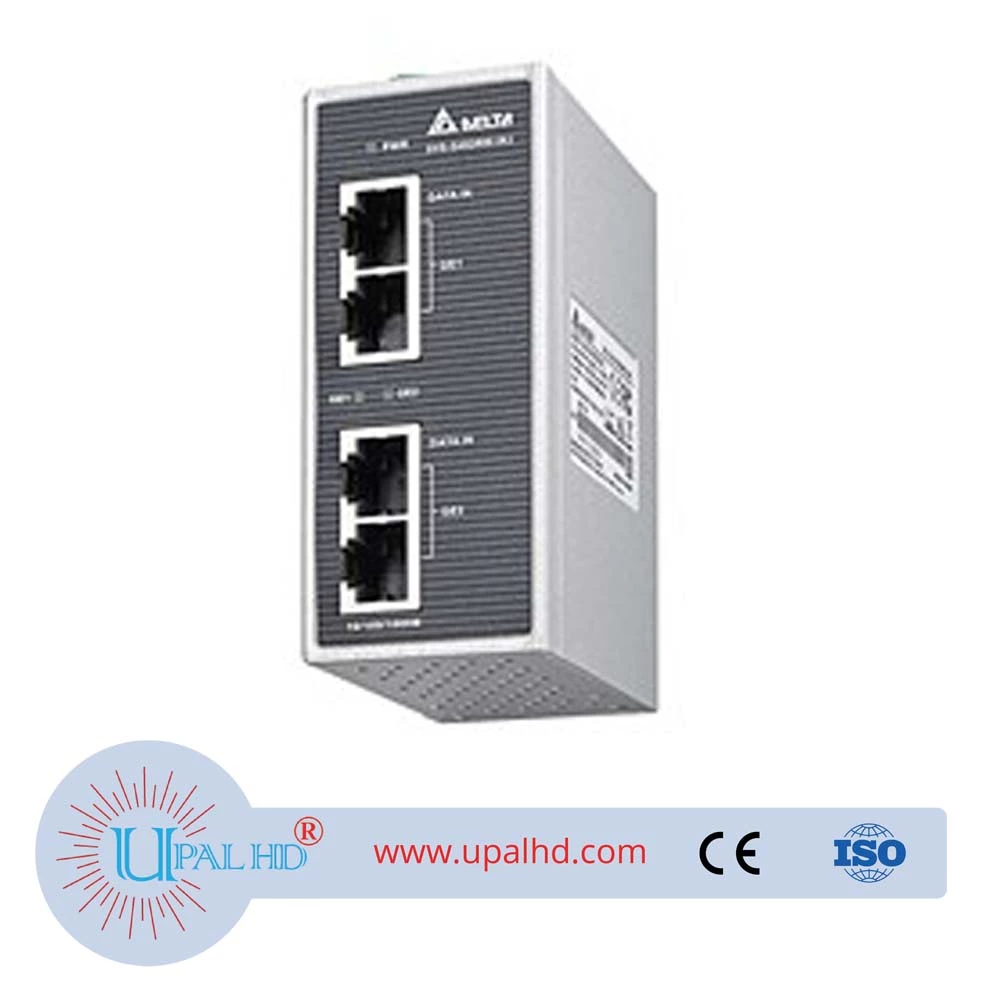

DELTA PLC DVS-G402R00-INJ

Description

PRODUCT INFORMATION OF DELTA PLC DVS-G402R00-INJ

Specifications

Technology

1. Standard Compliance
2. IEEE 802.3 10Base-T
3. IEEE 802.3u 100Base-T(X) and 100Base-FX
4. IEEE 802.3ab 1000Base-T
5. IEEE 802.3af PoE 15.4 Watts
6. IEEE 802.3at PoE 30 Watts

7. ---

Interface

1. Gigabit Ethernet
2. RJ45 Ports: 2 10/100/1000Base-T PoE+ OUT, 2 10/100/1000Base-T DATA IN, auto MDI/MDI-X, auto negotiation
3. PoE+ Pinout: 1 & 2 DC +, 3 & 6 DC –

4. ---

Power Requirements

1. Input Voltage: 2 sets, 12 to 57 VDC redundant terminal block input
2. Input Current: 5.5A max. (with powered device)
3. PoE+ Output Power: Max. 600mA @ 50 VDC, 30 watts per port
4. Overload Current Protection: Present, max. input current 10A
5. Reverse Polarity Protection: Present

6. ---

Physical

1. Housing: IP30 metal case
2. Dimensions : 95 mm(H) x 41 mm(W) x 70 mm (D)
3. Weight : 370g
4. Installation : DIN-Rail and wall mounting

5. ---

Environmental Limits

1. Operating Temperature: -20℃ to 70℃(-4℉ to 158℉)
2. Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)
3. Ambient Relative Humidity: 5% to 95%(non-condensing)

4. ---

Approvals

1. Safety: EN 62368-1
2. EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022(CISPR 22)
3. EMS(EN55024): IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
4. Shock: IEC 60068-2-27
5. Freefall: IEC 60068-2-32
6. Vibration: IEC 60068-2-6
