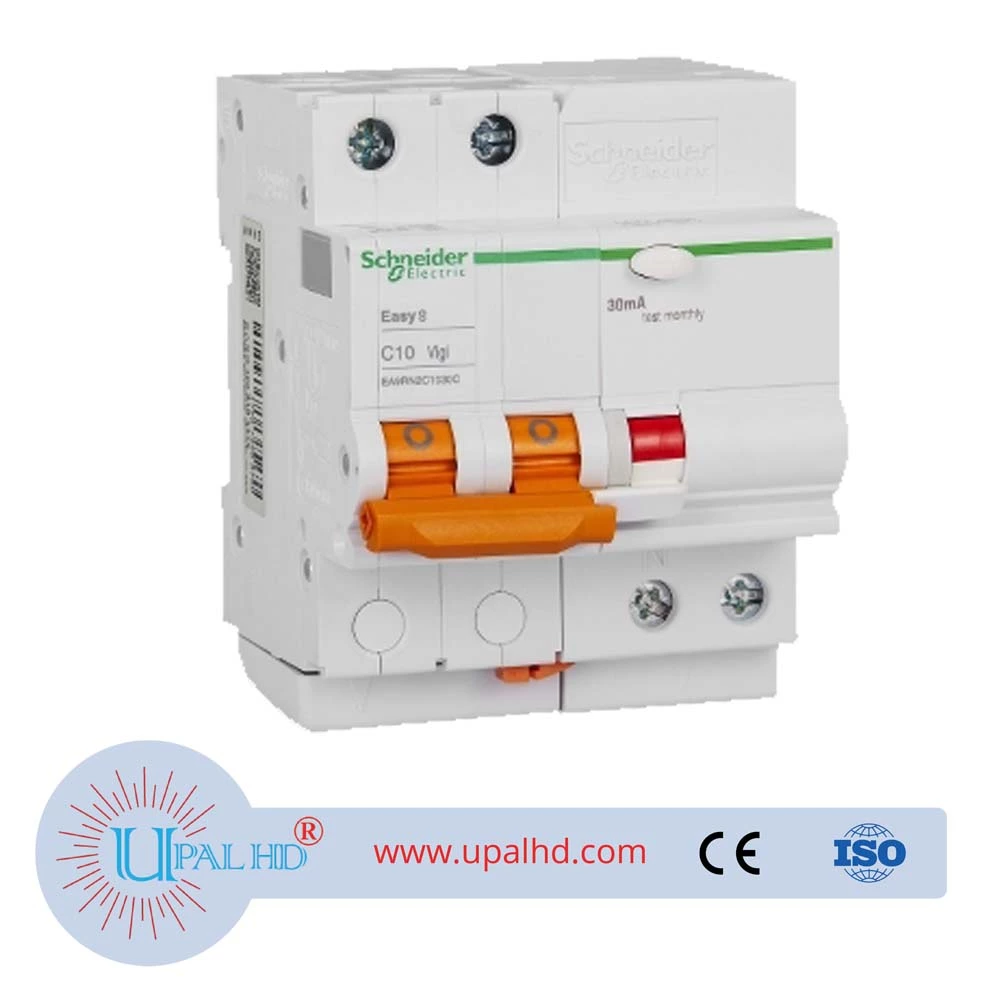

PRODUCT INFORMATION OF SCHNEIDER EA9R residual current action protection circuit breaker 2PC10A/30mA/AC class EA9RN2C1030C
| circuit breaker application | Distribution Protection |
|---|---|
| Product Series | Easy9 |
| product short name | EA9R |
| product name | EA9R RCBO |
| product type | Residual current operated protective circuit breaker |
| number of poles | 2P |
| Rated current [In] | 10 A at 30 °C |
| Trip curve | C |
| Residual current sensitivity [IΔn] | 30 mA |
| Rated working voltage [Ue] | 230/400V AC 50Hz |
| Network Type | AC |
| Network frequency | 50Hz |
| Trip unit type | Thermomagnetic |
| Magnetic trip limit | 5…10 x In |
| Breaking capacity | 6 kA Icn at 230 V AC 50 Hz |
| Use breaking capacity [Ics] | 6 kA at 230 V AC 50 Hz |
| Number of guard poles | 2 |
| Distribution system location | Downstream distribution outlet |
| Selectivity of residual current operating protection | Momentary |
| Leakage current protection level | AC class |
| Residual current operating function technology | The action function is related to the power supply voltage |
| isolation function | Be applicable |
| control type | Handle |
| local signal indication | On/off indicator |
| Contact position indication | Have |
| Leakage current protection | Integrated leakage protection |
| Mechanical life | 20000 times |
| color | Handle: Orange (RAL 2003) Body: Silver (Pantone 7541C) Buckle : Light Gray (RAL 7035) |
| installation type | Locking clip lock |
| installation method | DIN rail mounting |
| Wiring capacity | Tunnel terminal block (top connection) – <= 25 mm² Tunnel terminal block (bottom connection) – <= 25 mm² – flexible wire tunnel terminal block (bottom connection) – <= 35 mm² – solid solid wire |
| Tightening torque | 2.5 Nm top wire 3.5 Nm bottom wire |
| Width (multiples of 9mm) | 8 |
| high | 90 mm |
| width | 70.8 mm +/- 0.3 mm |
| depth | 73 mm |
| Standards compliant | GB 16917 IEC 61009 |
| certified product | CCC |
| operating temperature | -25…60°C |
| storage environment temperature | -40…80°C |
| Warranty | 18 months |
