EZD100E3020N || Schneider EZD molded case circuit breaker 25kA segment capacity 15-100A 3P3D spot agent

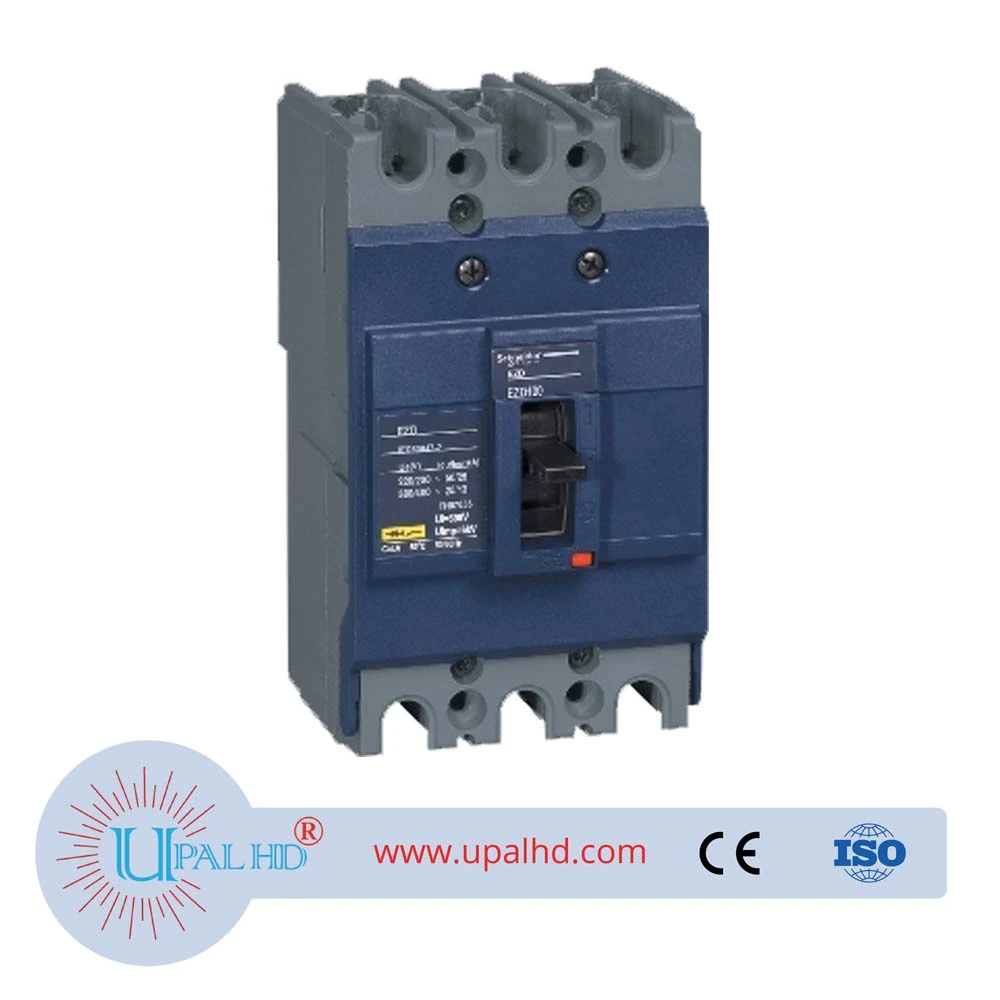

Schneider EZD molded case circuit breaker 25kA segment capacity 15-100A 3P3D spot agent EZD molded case circuit breaker Model Number: EZD100E3020N
The EZD100E3020N of the EZD series is a Class A Class 3 fixed molded case circuit breaker, which meets the requirements of IEC60947&GB14048 standards.
The product has an isolation mark and the position of the operating handle can reliably indicate the position of the internal contacts. The maximum expected mechanical life of the product is 10,000 times and the electrical life is 4,000 times @440V&In.
All terminal poles are protected against overload and short circuit. Equipped with thermal magnetic release The rated current of the circuit breaker is 20A, and different electrical accessories and connection accessories can be selected according to different needs.
The circuit breaker and auxiliary devices meet the requirements of 45°C and 95% relative humidity required by IEC60068-2-30,
and the base plate can be selected according to actual needs Or the guide rail is installed in the switchgear and provides class II panel insulation from all internal circuits and the highest IP54 protection level.
The materials used in the product are all non-polluting materials that meet the requirements of the ISO14001 standard and can be recycled.
Description
PRODUCT INFORMATION OF SCHNEIDER EZD100E3020N molded case circuit breaker 25kA segment capacity 15-100A 3P3D spot agent
| Product Series | EZD |
|---|---|
| product type | Breaker |
| product short name | EZD100E |
| circuit breaker application | Distribution Protection |
| number of poles | 3P |
| Description of protection pole | 3D |
| Leakage current protection | No leakage protection |
| Rated current [In] | 20 A at 40 °C |
| Circuit breaker model | E. |
| Network Type | AC |
| Network frequency | 50/60Hz |
| control type | Handle |
| installation type | Fixed |
| installation method | Chassis mount |
| Connection method – top | Front connection |
| Connection method – lower end | Front connection |
| Rated insulation voltage [Ui] | 690 V conforming to EN/IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to EN/IEC 60947-2 |
| Rated working voltage [Ue] | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Breaking capacity | 10 kA Icu at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 380/ 400 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/ IEC 60947-2 |
| use category | AC class |
| Use breaking capacity [Ics] | 25 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 13 kA at 380/400 V AC 50/60 Hz conforming to EN/IEC 60947-2 7 kA at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 5 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 3 kA at 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Mechanical life | 10000 times |
| Electrical life | 4000 cycles at 440 V In conforming to EN/IEC 60947-2 |
| Phase spacing | 25 mm |
| Trip unit name | TM-D |
| Trip unit type | Thermomagnetic |
| Release rating | 20 A at 40 °C |
| protection type | Overload protection (thermal protection) short circuit protection (magnetic protection) |
| Long time delay current setting type | Fixed |
| Long delay current setting value [Ir] | 1 In |
| Instantaneous protection current setting type | Fixed |
| high of EZD100E3020N | 130 mm |
| width of EZD100E3020N | 75 mm |
| depth of EZD100E3020N | 60 mm |
| Product Weight | 0.78kg |
| model of EZD100E3020N | EZD100 |
| Standards compliant | EN 60947-2 IEC 60947-2 |
| pollution level | 3 Conforming to IEC 60947-1 |
| operating temperature | -25…70°C |
| storage environment temperature | -50…85 °C |
| Warranty | 18 months |
