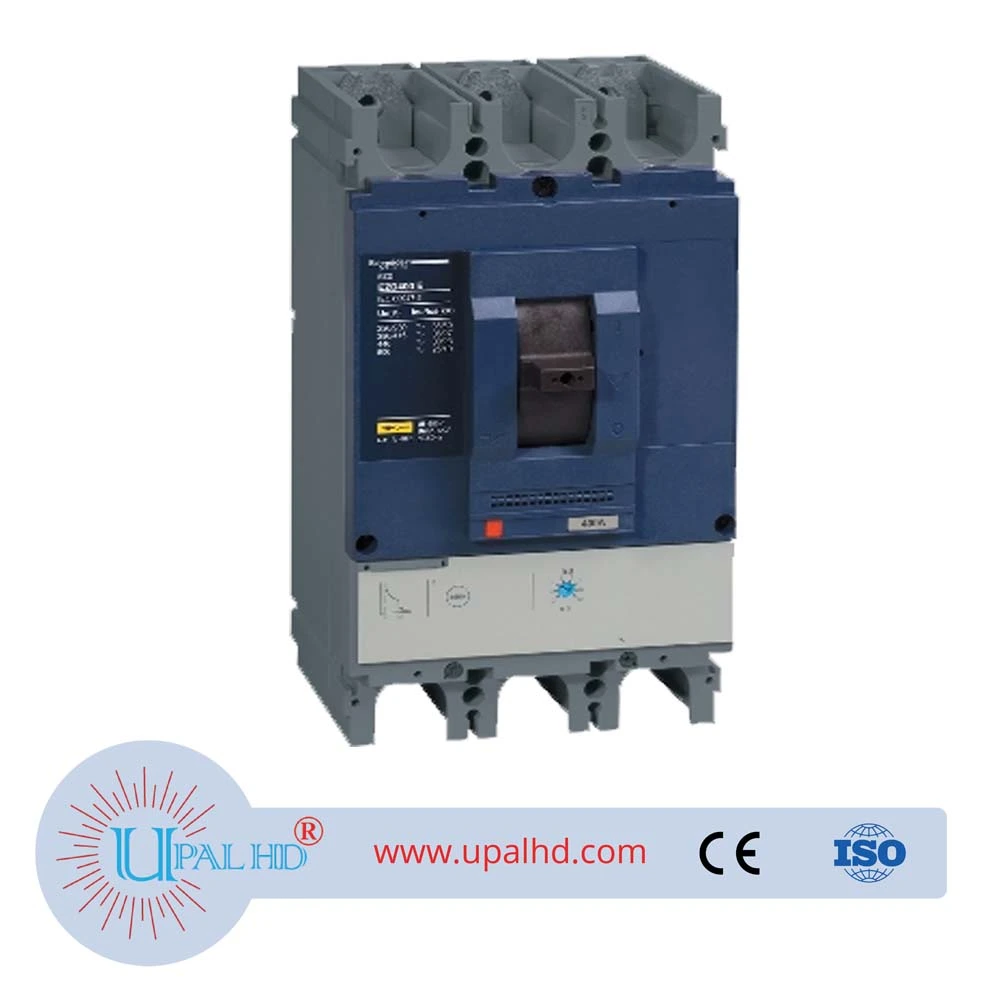

EZD630M3500K Spot Schneider 500A plastic case circuit breaker

Spot Schneider EZD630M3500K 500A plastic case circuit breaker  EZD molded case circuit breaker Model Number: EZD630M3500K The EZD630M3500K of the EZD series is a Class A Class 3 fixed molded case circuit breaker, which meets the requirements of IEC60947&GB14048 standards. The product has an isolation mark and the position of the operating handle can reliably indicate the position of the internal contacts. The maximum expected mechanical life of the product is 10,000 times and the electrical life is 4,000 times @440V&In. All terminal poles are protected against overload and short circuit. Equipped with thermal magnetic tripping The circuit breaker has a rated current of 500A and can be matched with many types of electrical accessories and mechanical accessories. The circuit breaker and auxiliary devices meet the requirements of 45°C and 95% relative humidity required by IEC60068-2-30, and can be installed on the bottom plate or guide rail according to actual needs. In the switchgear, class II panel and all internal circuits are provided with insulation and the highest IP54 protection level. The materials used in the product are non-polluting materials that meet the requirements of the ISO14001 standard and can be recycled.
