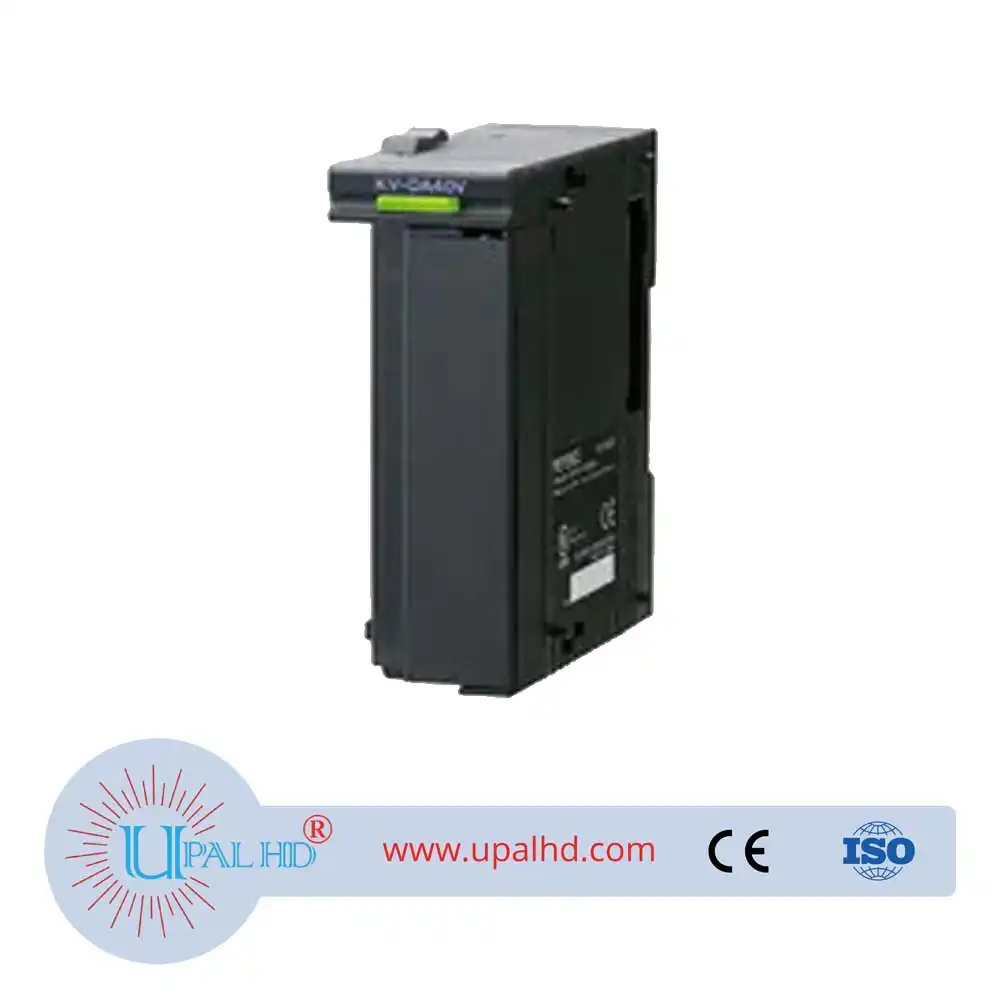

PRODUCT INFORMATION OF Keyence D/A conversion unit analog output 4ch KV-DA40V.
| Model | KV-DA40V | |||
| Type | D/A conversion unit | |||
| Analogue I/O point | 4 points | |||
| Analogue I/O range (resolution) | Voltage | -10 to +10 V (0.5 mV 1/40,000) 0 to 10 V (0.5 mV 1/20,000) 0 to 5 V (0.25 mV 1/20,000) 1 to 5 V (0.25 mV 1/16,000) |
||
| Input current | 0 to 20 mA (1 µA 1/20,000) 4 to 20 mA (1 µA 1/16,000) |
|||
| Input impedance | – | |||
| Conversion speed | 25 µs/ch | |||
| Conversion precision | 25 °C ±5 °C | Voltage: ±0.1 % of F.S., Current: ±0.2 % of F.S. | ||
| 0 to 50 °C | Voltage: ±0.3 % of F.S., Current: ±0.3 % of F.S. | |||
| Insulation mode | Between unit and CPU: Photocoupler insulation, non-insulation between channels | |||
| Min. load resistance | Voltage: 1 kΩ | |||
| Max. load resistance | Current: 500 Ω | |||
| Internal current consumption | 170 mA or less | |||
| Weight | Approx. 150 g | |||
