Description

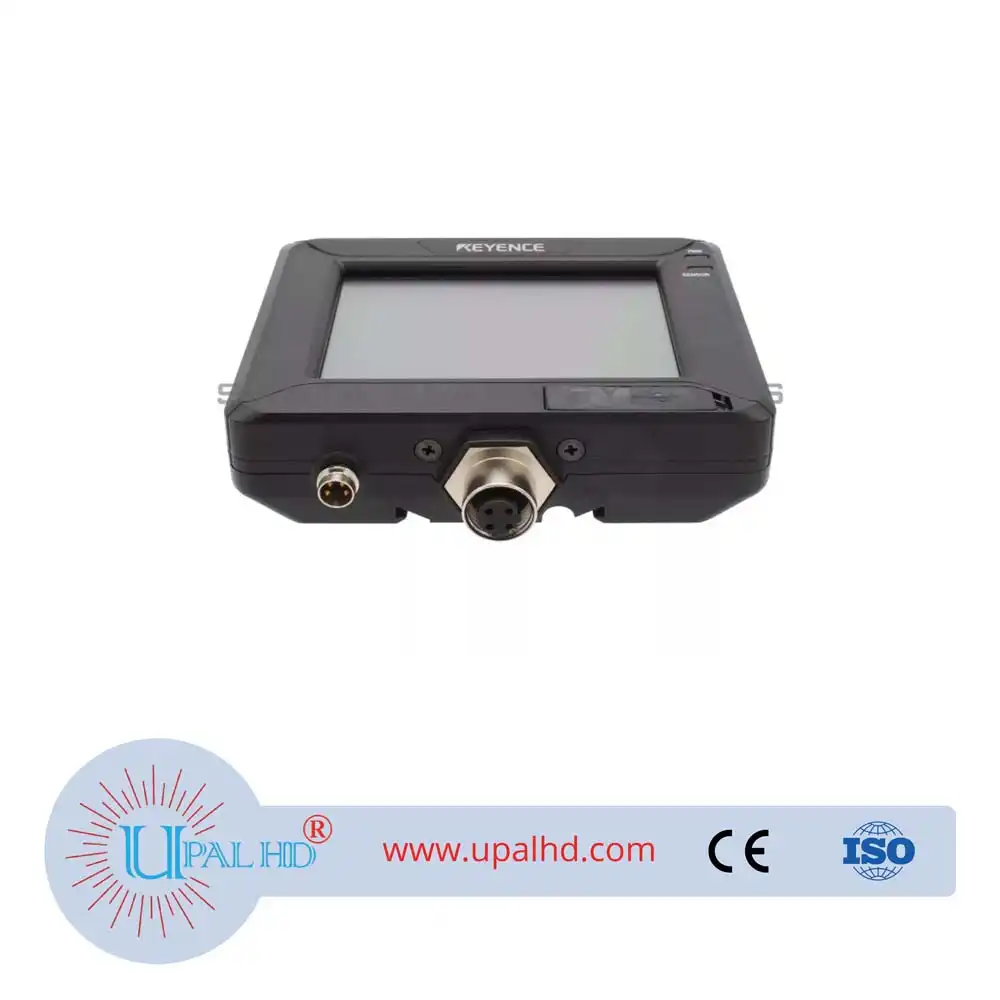

PRODUCT INFORMATION OF Keyence IV Series Image Recognition Sensor IV-M30.
| Model | IV-M30 | |||
| Supported languages | Japanese/English | |||
| Display | 3.5″ TFT color LCD 320 x 240 dot (QVGA) | |||
| Backlight | Method | White LED | ||
| Duration | Approx. 50,000 hours (25 °C 77 °F) | |||
| Touch panel | Method | Analog resistive | ||
| Actuating force | 0.8 N or less | |||
| Indicators | PWR, SENSOR | |||
| Ethernet | Standard | 100BASE-TX/10BASE-T*1 | ||
| Connector | M12 4pin connector*1 | |||
| Expanded memory | USB memory*2 | |||
| Rating | Power voltage | 24 VDC ±10 % (including ripple) | ||
| Current consumption | 0.2 A or less | |||
| Environmental resistance | Ambient temperature | 0 to +50 °C 32 to 122 °F (No freezing) | ||
| Relative humidity | 35 to 80 % RH (No condensation)*3 | |||
| Drop Resistance | 1.3 m 4.27′ over the concrete (2 times each in the arbitrary direction) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 0.7 mm 0.03″, 20 sweeps in each of the X, Y, and Z directions | |||
| Material | Polycarbonate | |||
| Weight | Approx. 180 g | |||
