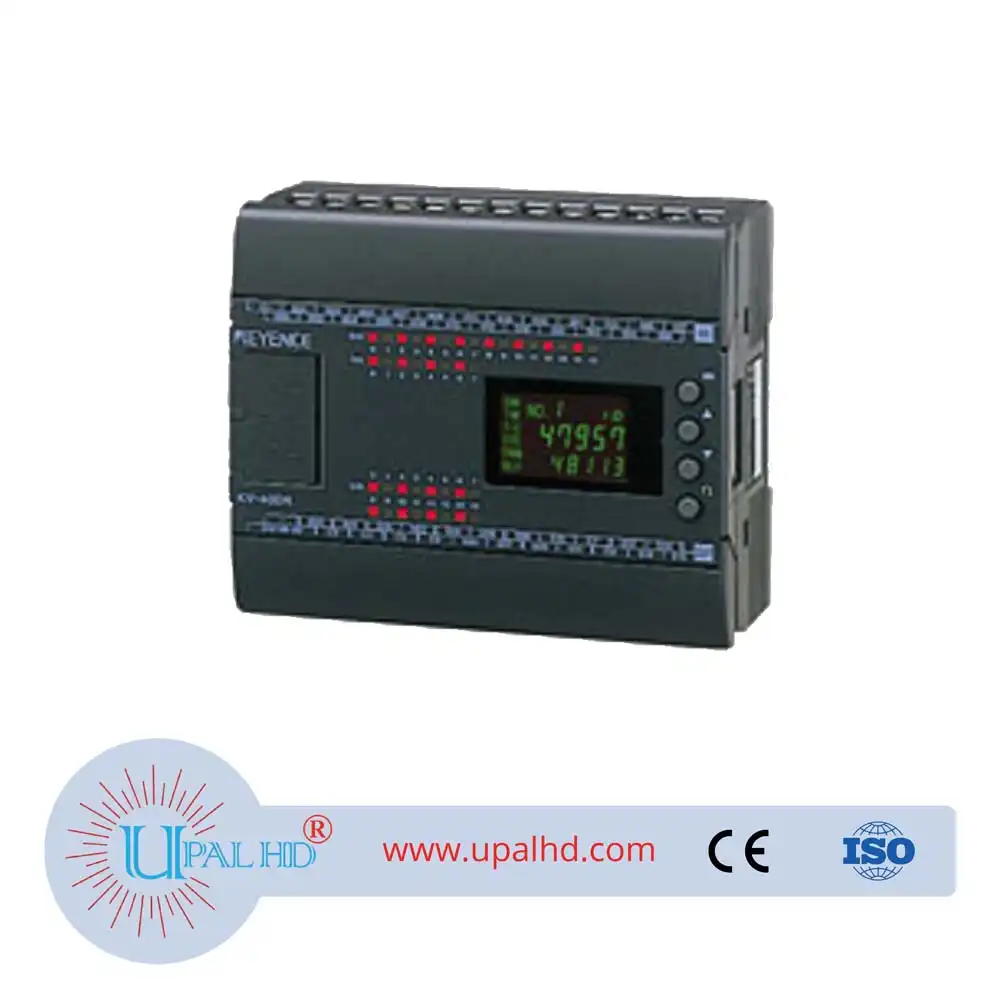

| Model |
KV-40DT |
| Type |
DC power supply type base unit |
| Input power supply voltage |
Base unit |
24 VDC (+ 10%, -20%) |
| Allowable instantaneous outage time |
Less than 2 ms |
| General specifications |
Internal current consumption (24 VDC conversion value) |
Base unit |
120mA or less |
| Expansion unit |
KV-E4X 20mA or less KV-E8X 25mA or less KV-E16X 35mA or less KV-E4T 25mA or lessKV-E8T (P) 40mA or less KV-E16T 60mA or less KV-E4R 40mA or less KV-E8R 70mA or lessKV-E16TP 70mA or less KV-E4XT (P) 30mA or less KV-E4XR 45mA or less KV-E16R 110mA or less |
| Other |
Operator panel KV-D20: 60 mA or less KL link adapter KL-N10V: 35 mA or less Programming console KZ-P3: 65 mA or less |
| Environmental resistance |
Operating temperature range |
0 to 50°C 32 to 122°F (no freezing), 0 to 45°C 32 to 113°F (KZ-P3) |
| Operating ambient humidity |
35 to 85% RH (no condensation) |
| Ambient temperature for storage |
-20 to 70°C -4 to 158°F (no freezing) |
| Withstand voltage |
1,500 VAC for 1 minute (between the power supply terminal and the I/O terminals and between all the external terminals and the case) |
| Noise resistance |
1,500 Vp-p or more, pulse width: 1 µs, 50 ns (by way of a noise simulator), conforms to EN standards (EN 61000-4-2/-3/-4/-6) |
| Shock resistance |
Conforms to JIS C 0041, 150 m/s2 (15 G), operating time: 11 ms, 2 times in each of the 3 axial directions |
| Weight |
Base unit |
Approx 280g |
| Insulation resistance |
50 MΩ or more (tested with a 500 VDC megger, between the power supply terminal and the input terminal and between all the external terminals and the case) |
| Environmental resistance |
Ambient operating atmosphere |
Minimal amount of dust and corrosive gas present |
| Weight |
Expansion unit |
KV-E4X: Approx 80 g, KV-E8X: Approx 100 g, KV-E16X: Approx 130 g, KV-E4T: Approx 80 g, KV-E8T (P): Approx 100 g, KV-E16T (P): Approx 130 g, KV-E4R: Approx 100 g, KV-E8R: Approx 130 g, KV-E16R: Approx 190 g, KV-E4XT (P): Approx 100 g, KV-E4XR: Approx 120 g |
| Other |
KZ-P3 Approx 230g KV-D20 Approx 160g KL-N10V Approx 80g |
| Vibration resistance |
Intermittent vibration |
Frequency: 10 to 57 Hz |
Amplitude: 0.075 mm*1 |
| Frequency: 57 to 150 Hz |
Acceleration: 9.8 m/s2*1 |
| Continuous vibration |
Frequency: 10 to 57 Hz |
Amplitude: 0.035 mm*1 |
| Frequency: 57 to 150 Hz |
Acceleration: 4.9 m/s2*1 |
