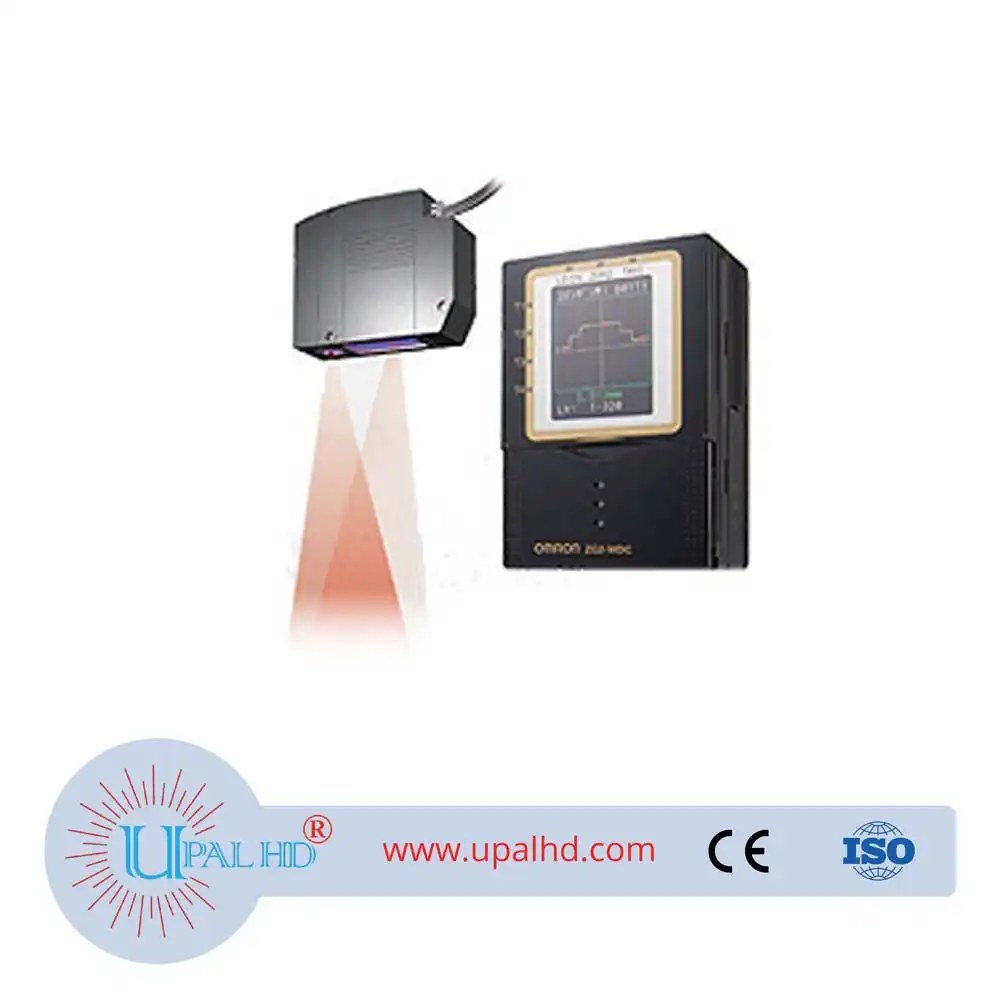

PRODUCT INFORMATION OF Omron Smart Sensor ZG2-WDC11A/ZG2-WDS22/ZG2-WDS8T/ZG2-XC8CR.
| Item | ZG2-WDS8T | ZG2-WDS22 | ZG2-WDS70 | ZG2-WDS3VT | ||||
|---|---|---|---|---|---|---|---|---|
| Optical system of Omron Smart Sensor | Diffuse reflective |
Regular reflective |
Diffuse reflective |
Regular reflective |
Diffuse reflective |
Regular reflective |
Diffuse reflective |
|
| Meas- urement range |
Height direction | 50 ± 3 mm |
44 ± 2 mm |
100 ± 12 mm |
94 ± 10 mm |
210 ± 48 mm (In the high- precision mode) |
22.3 ± 0.5 mm |
10.6 ± 0.4 mm |
| Width direction *5 | 8 mm (typical) | 22 mm (typical) | 70 mm (typical) | 3 mm (typical) | ||||
| Resolution | Height direction *1 |
1 μm | 2.5 μm | 6 μm | 0.25 μm | |||
| Width direction | 13 μm (8 mm/631 pixels) |
35 μm (22 mm/631 pixels) |
111 μm (70 mm/ 631 pixels) |
5 μm (3 mm/631 pixels) |
||||
| Linearity (in the height direction) *2 |
± 0.1 %F.S. | |||||||
| Temperature characteristic *3 |
0.03 %F.S./℃ | 0.02 %F.S./℃ | 0.08 %F.S./℃ | |||||
| Light source |
Type | Visible semiconductor laser | ||||||
| Wavelength | 658 nm | 650 nm | ||||||
| Output | 5 mW max. output, 1 mW max. exposure (without using optical instruments) |
1 mW max | ||||||
| Laser class | Class 2M of EN60825-1/IEC60825-1 Class IIIB of FDA (21CFR 1040.10 and 1040.11) |
Class 2 of EN60825-1/ IEC60825-1 Class II of FDA (21CFR 1040.10 and 1040.11) |
||||||
| Beam shape (at measurement center distance) *4 |
30 μm × 24 mm (typical) |
60 μm × 45 mm (typical) |
120 μm × 75 mm (typical) |
25 μm × 4 mm (typical) |
||||
| LED | STANDBY: Lights when laser irradiation preparation is complete (indication color: green) |
|||||||
| LD_ON: Lights when the laser is irradiating (indication color: green) | ||||||||
| Measurement object | Surface of non-transparent/transparent objects |
Surface of non- transparent objects |
Surface of non- transparent/ transparent objects |
|||||
| Environ- mental resistance |
Ambient light intensity |
Illumination on the photo-receiving face 7,000 lx max.: Incandescent lamp | ||||||
| Ambient temperature |
Operating: 0 to 50℃, Storage: -15 to 60℃ (with no icing or condensation) | |||||||
| Ambient humidity | Operating and storage: 35 to 85 % (with no condensation) | |||||||
| Degree of protection *6 |
IP66(IEC60529) | IP67(IEC60529) | ||||||
| Vibration resistance (destruction) |
10 to 150 Hz with 0.35 mm single amplitude for 80 min each in X, Y, and Z directions | |||||||
| Shock resistance (destruction) |
150 m/s2, 3 times each in 6 directions (up/down, right/left, forward/backward) | |||||||
| Materials | Case: Aluminum diecast, Front cover: Glass, Cable insulation: Heat-resistive polyvinyl chloride (PVC), Connector: Zinc alloy or brass |
|||||||
| Cable length | 0.5 m, 2 m (flexible cable) | |||||||
| Minimum bending radius | 68 mm | |||||||
| Weight | Approx. 500 g | Approx. 500 g | Approx. 650 g | Approx. 300 g | ||||
| Accessories | Laser labels (English labels), Ferrite core (2), Instruction manual | |||||||
