Proface GP-4501TW pro-face gc-4408w

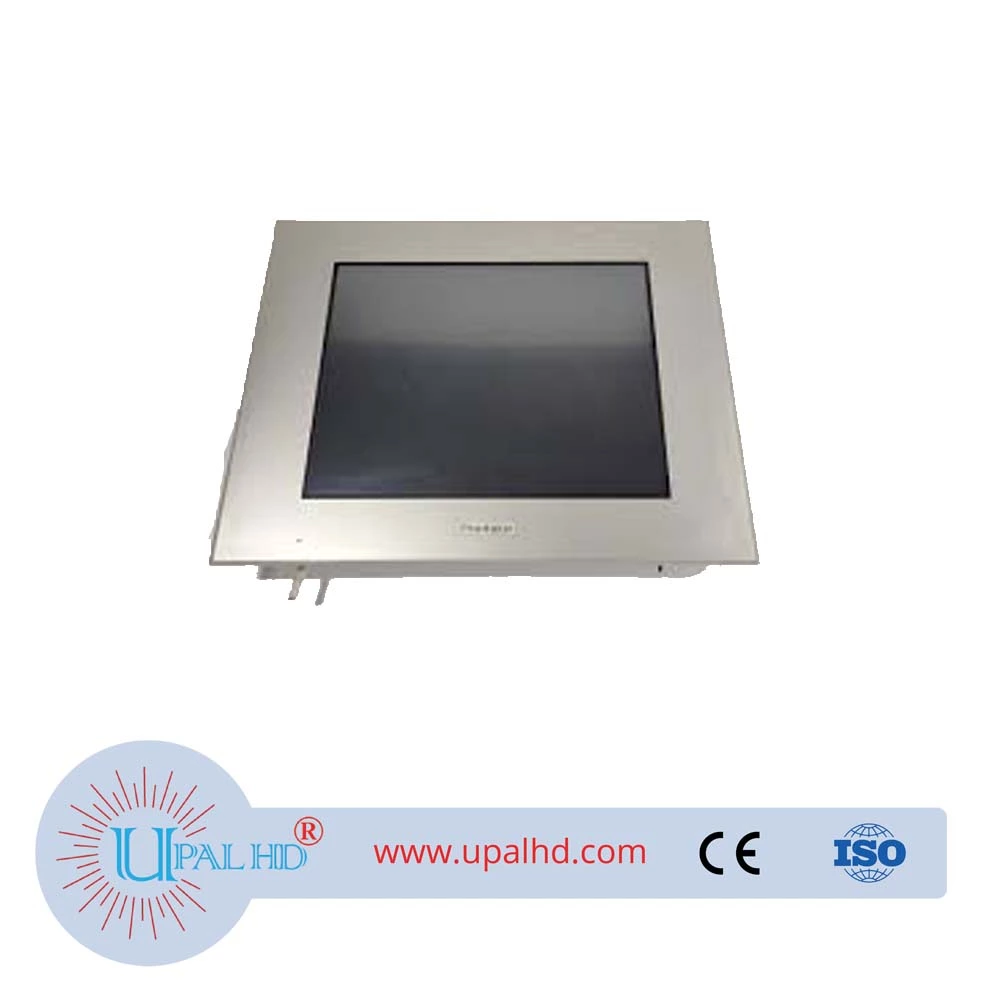

Proface GP-4501TW pro-face gc-4408w  Model Number: GP-4501TW. The GP-4501TW is a 10.4-inch human-machine interface from Pro Face Xycom. This unit is part of the company’s GP 4000 series and is designed for ease of use and easy connectivity. Those who use this equipment find that it can easily monitor conditions in real-time and offers them realistic gauges and 3D buttons. The unit provides remote monitoring options through the associated GP-Viewer EX software. Additionally, on-site recovery allows for data checks of alarm messages in chronological order. Our company also sells the GP-4501TW under the Pro-face model number PFXGP4501TADW.The GP-4501TW has 640 x 480 VGA resolution on its TFT color LCD touch panel. The effective display area of 8.31 x 6.24 inches is backlit by a non-replaceable white LED with eight levels of brightness control, adjustable through the panel. The until supports multiple language fonts that can be expanded to up to eight times their standard size and width. 16 MB of application memory, 132kb of the logic program area, 8 MB of flash Eprom font area, and 128 KB of data backup are standard.

The GP-4501TW includes multiple interfaces including a single SD card slot, a mini-B USB, and a USB 2.0. The unit also includes an Ethernet LAN port and two Serial COM ports that allow for RS-232C Asynchronous transmission and RS-422/485 Asynchronous transmission.

The GP-4501TW does not have an internal fan and works through natural air circulation. It weighs approximately 5.5 pounds before boxing for shipment. The unit has a functional grounding resistance of 100 ohms using an AWG 14 or thicker wire. For additional information please refer to Pro Face manuals or user guides.
