Proface  PFXGP4201TADW Guangzhou pro-face  Model Number: PFXGP4201TADW.

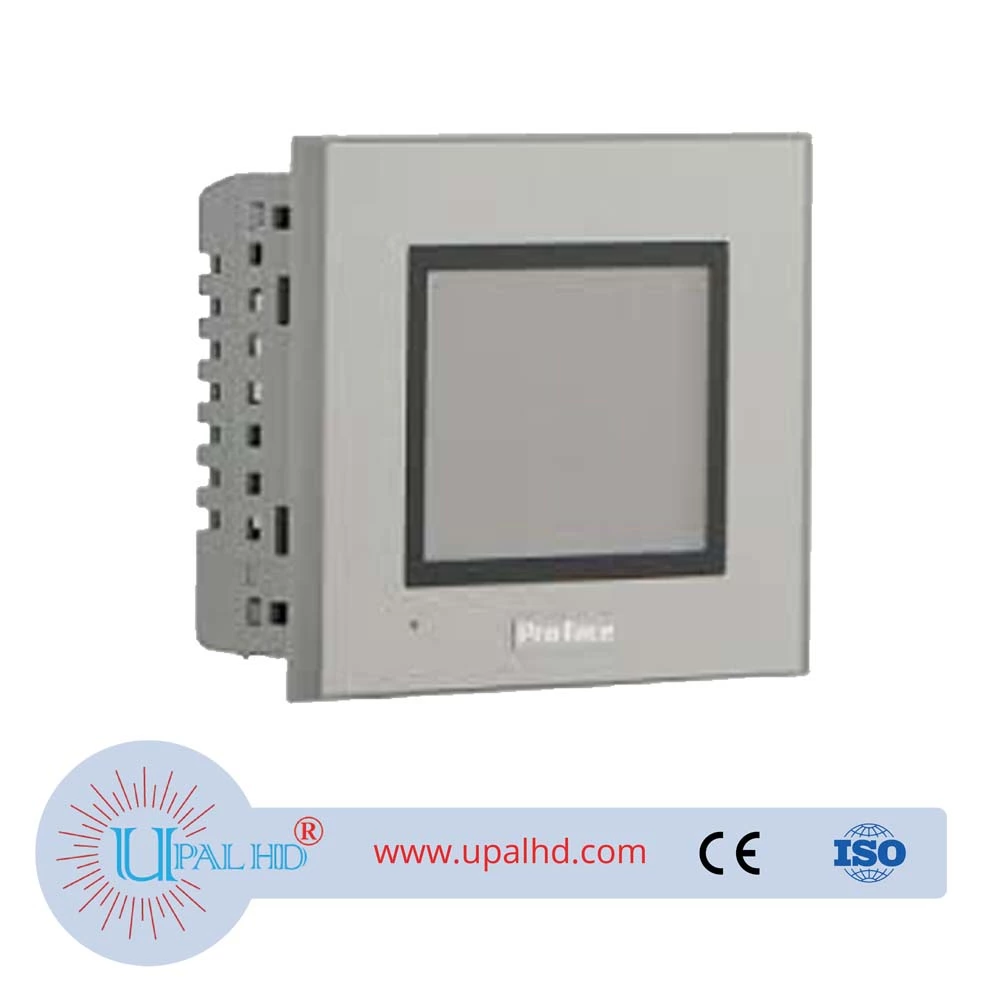

PFXGP4201TADW is a Proface Interface Display that is a part of the GP-4000 series. The display type is a TFT Color LCD and the display size is 3.5 inches. The resolution in pixels is 320 x 240. The backlight is a non-replaceable white LED that can operate for 50,000 hours or more at 25°C. The backlight has 8 adjustable brightness levels. The display is 2.78” (W) x 2.08” (H), with 65,536 no blink colors and 16,384 blink colors. The interface has 5 ports. Serial communication port 1 is an RS-232C asynchronous transmission port, serial communication port 2 is an RS-422/485 asynchronous transmission port, the LAN port is the ethernet port, USB port 1 is a Type-A USB port, and USB port 2 is a Type mini-B port. There is also an SD card slot on the interface.

The contact discharge method is 6 kV at IEC/EN61000-4-2 Level 3. The grounding for this interface is functional grounding with a grounding resistance of 100Ω and 2 mm2 (AWG 14) or thicker wire. The structure is equivalent to an IP65f NEMA #250 TYPE 4x/13 on the front panel when properly installed in an enclosure. The vibration and concussion resistances are compliant with IEC/EN61131-2. This display may be used in a Pollution Degree 2 environment. The allowed dust is 0.1 mg/m3 or less at non-conductive levels. The atmosphere must be free of corrosive gases. The panel thickness is 1.6 to 5 mm.
