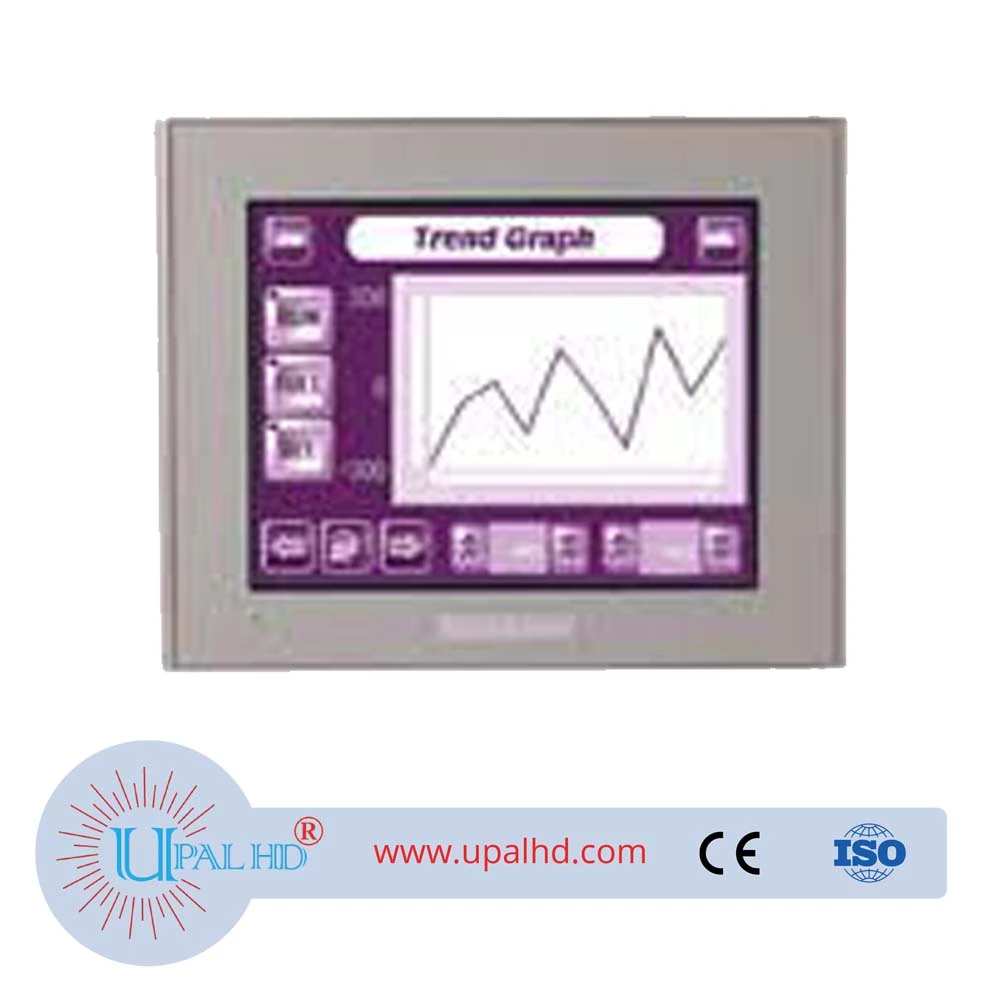

PRODUCT INFORMATION OF PROFACE Proface PFXST3301BAD pro-face
| Display Type |
Blue-mode Monochrome LCD
|
|---|---|
| Display Size |
5.7″
|
| Resolution |
320 x 240 pixels (QVGA)
|
| Dot pitch |
W0.36 X H0.36mm [W0.01 X H0.01in.]
|
| Effective Display Area |
W115.2 X H86.4mm [W4.54 X H3.40in.]
|
| Display Colors |
Monochrome (8 Levels)
|
| Backlight |
CCFL (User nonreplaceable parts. Factory replacement required.)
|
| Brightness Control |
8 Levels (Adjusted with the touch panel)
|
| Contrast Control |
8 Levels (Adjusted with the touch panel)
|
| Backlight Service Life |
58,000 hrs. or more (continuous operation at 25 ℃ before backlight brightness decreases to 50 % or backlight starts to blink)
|
| Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.
|
| Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
| Font Sizes |
Standard font: Width can be expanded up to 8 times., Height can be expanded up to 8 times.
|
| 8 x 16 dots |
40 char. X 15 rows
|
| 16 x 16 dots |
20 char. X 15 rows
|
| 32 x 32 dots |
10 char. X 7 rows
|
| 8 x 8 dots |
40 char. X 30 rows
|
| Application Memory |
FLASH EPROM 6 MB*1
|
| Data Backup |
SRAM 320KB (uses lithium battery)*2
|
| Clock Accuracy |
±65 sec./month (deviation at room temperature and power is OFF)*3
|
| Touch Panel Type |
Resistive Film (analog)
|
| Touch Panel Resolution |
1,024 X 1,024
|
| Touch Panel Service Life |
1,000,000 times or more
|
| Serial (COM1) |
RS-232C, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
| Serial (COM2) |
RS-422/485, Asynchronous Transmission, Data Length: 7 or 8 bit, Parity: none, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI), Connector: D-Sub9 (plug)
|
| USB (TYPE-A) |
Conforms to USB1.1 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m or less
|
