Description

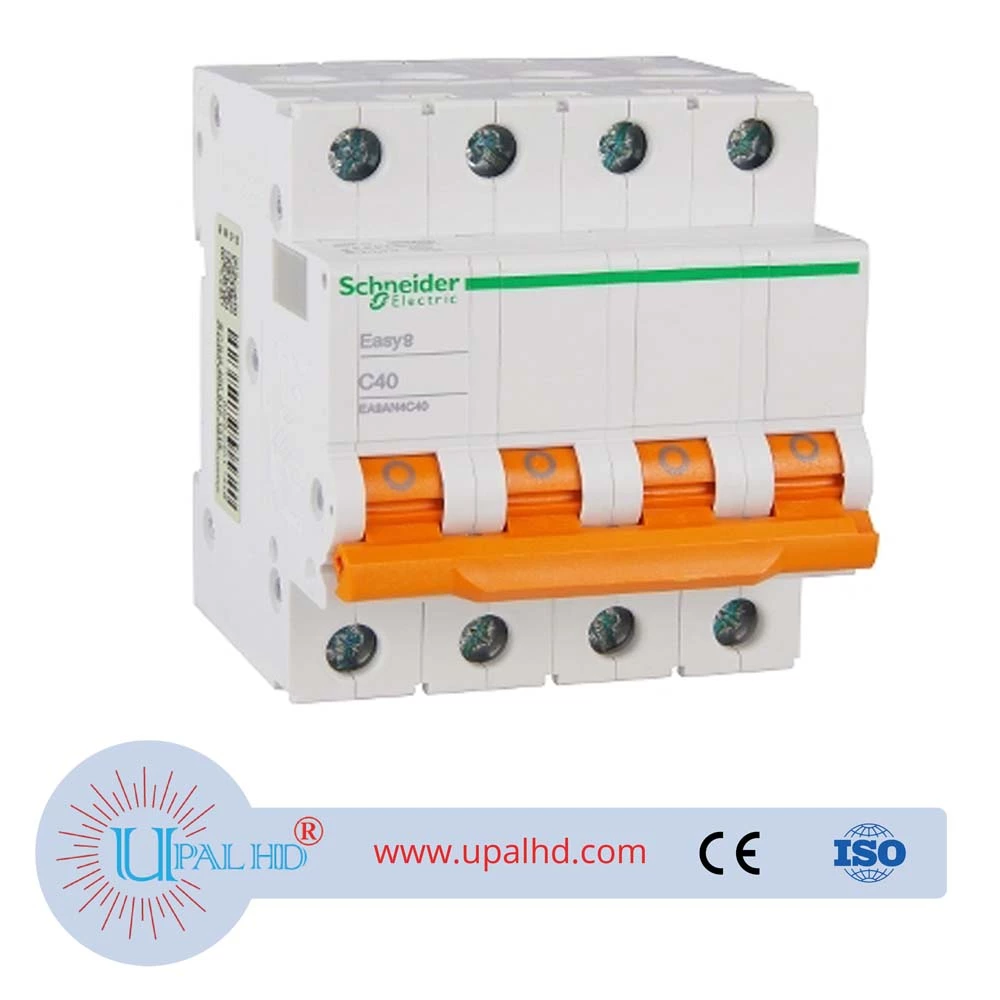

PRODUCT INFORMATION OF SCHNEIDER EA9AN4C40 EA9AN miniature circuit breaker 4P C40A
| Product Series | Easy9 |
|---|---|
| product name | EA9AN MCB |
| product short name | EA9AN |
| product type | Miniature Circuit Breaker |
| Applications | Distribution protection |
| Rated current [In] | 40 A at 30 °C |
| number of poles | 4P |
| Trip curve | C |
| Rated working voltage [Ue] | 230/400V AC 50Hz |
| Network Type | AC |
| Network frequency | 50Hz |
| Number of guard poles | 4 |
| neutral position | Left side |
| Trip unit type | Thermomagnetic |
| Magnetic trip limit | 5…10 x In |
| Breaking capacity | 6 kA Icn at 230/400 V AC 50 Hz |
| Use breaking capacity [Ics] | 6 kA 100 % – 400 V AC 50 Hz |
| current limiting level | 3 |
| Rated impulse withstand voltage [Uimp] | 6kV |
| isolation function | Be applicable |
| control type | Handle |
| Contact position indication | Have |
| local signal indication | On/off indicator |
| Mechanical life | 20000 times |
| Electrical life | 10000 times |
| installation type | Locking clip lock |
| installation method | DIN rail mounting |
| color | Handle: Orange (RAL 2003) Body: Silver (Pantone 7541C) Buckle : Light Gray (RAL 7035) |
| Wiring capacity | Tunnel terminal blocks – <= 35 mm² |
| Tightening torque | 3.5 Nm top or bottom |
| Width (multiples of 9mm) | 8 |
| high | 81 mm |
| width | 72mm |
| Product Weight | 450g |
| Standards compliant | GB 10963.1 IEC 60898-1 |
| certified product | CCC |
| Moisture resistance | 2 |
| Relative humidity | 95 % at 55 °C |
| operating temperature | -30…70°C |
| storage environment temperature | -40…85°C |
| Warranty | 18 months |
