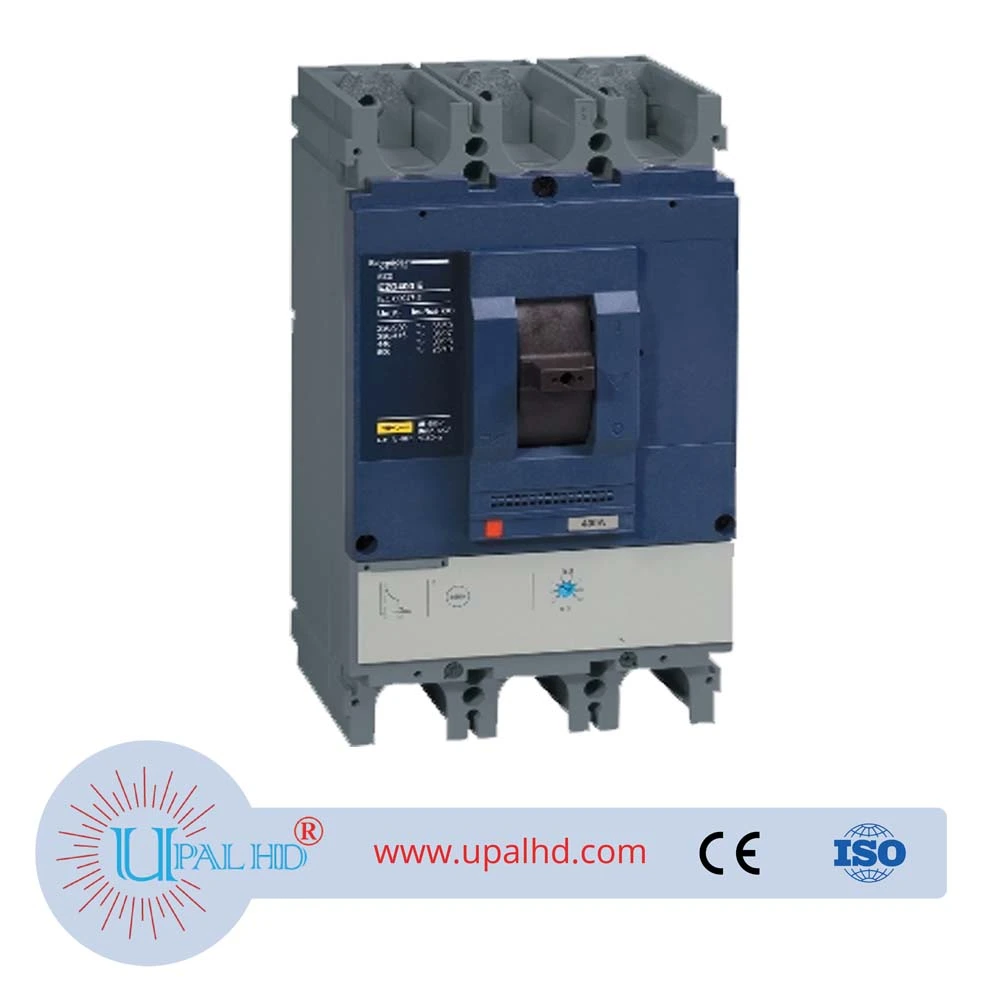

Schneider EZD molded case circuit breaker 25kA segment capacity 15-100A 3P3D spot agent EZD molded case circuit breaker Model Number: EZD630E3630K The EZD630E3630K of the EZD series is a Class A Class 3 fixed molded case circuit breaker, which meets the requirements of IEC60947&GB14048 standards. The product has an isolation mark and the position of the operating handle can reliably indicate the position of the internal contacts. The maximum expected mechanical life of the product is 10,000 times and the electrical life is 4,000 times @440V&In. All terminals are equipped with overload and short-circuit protection. Equipped with an electronic release Its rated current is 630A, which can be matched with many kinds of electrical accessories and mechanical accessories. The circuit breaker and auxiliary devices meet the requirements of 45°C and 95% relative humidity required by IEC60068-2-30. The base plate or guide rail can be selected to be installed on the switch according to actual needs. In the cabinet, class II panels are provided to insulate all internal circuits and have the highest IP54 protection level. The materials used in the product are all non-polluting materials that meet the requirements of the ISO14001 standard and can be recycled. Schneider EZD molded case circuit breaker
Description
PRODUCT INFORMATION OF SCHNEIDER EZD molded case circuit breaker 25kA segment capacity 15-100A 3P3D spot agent
| Product Series | EZD |
|---|---|
| product type | Breaker |
| product short name | EZD630E |
| circuit breaker application | Distribution protection |
| number of poles | 3P |
| Description of protection pole | 3D |
| Leakage current protection | No leakage protection |
| Rated current [In] | 630 A at 40 °C |
| Circuit breaker model | E. |
| Network Type | AC |
| Network frequency | 50/60Hz |
| control type | Handle |
| installation type | Fixed |
| installation method | Chassis mount |
| Connection method – top | Front connection |
| Connection method – lower end | Front connection |
| Rated insulation voltage [Ui] | 690 V conforming to EN/IEC 60947-2 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to EN/IEC 60947-2 |
| Rated working voltage [Ue] | 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Breaking capacity | 40 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 380/400 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| use category | AC class |
| Use breaking capacity [Ics] | 40 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA at 380/400 V AC 50/60 Hz conforming to EN/IEC 60947-2 36 kA at 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 18 kA at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Mechanical life | 10000 times |
| Electrical life | 4000 cycles at 440 V In conforming to EN/IEC 60947-2 |
| Phase spacing | 45 mm |
| Trip unit name | ETS 2.3 |
| Trip unit type | Electronic |
| Release rating | 630 A at 40 °C |
| protection type | Short-circuit short-time delay protection Overload protection (long time-delay) short-circuit instantaneous protection |
| Long time delay current setting type | Fixed |
| Long delay current setting value [Ir] | 1 In |
| Long delay time setting type | Fixed |
| [tr] Long delay time setting range | 90…180 s at 1.5 x Ir 5…7.5 s at 6 x Ir 3.2…5 s at 7.2 x Ir |
| Short delay current setting type | 8 steps adjustable |
| Short delay current setting value [Isd] | 2…10 x Ir |
| Short delay time setting type | Fixed |
| Short delay time setting value [tsd] | 0…60s |
| Instantaneous protection current setting type | Fixed |
| Instantaneous protection setting value [Ii] | 11 x In |
| high of Schneider EZD molded case circuit breaker | 255 mm |
| width of Schneider EZD molded case circuit breaker | 140mm |
| depth of Schneider EZD molded case circuit breaker | 110 mm |
| Product Weight | 6.2kg |
| model of Schneider EZD molded case circuit breaker | EZD630 |
| Standards compliant | IEC 60947-2 EN 60947-2 |
| pollution level | 3 Conforming to IEC 60947-1 |
| operating temperature | -25…70°C |
| storage environment temperature | -50…85 °C |
| Warranty of Schneider EZD molded case circuit breaker | 18 months |
