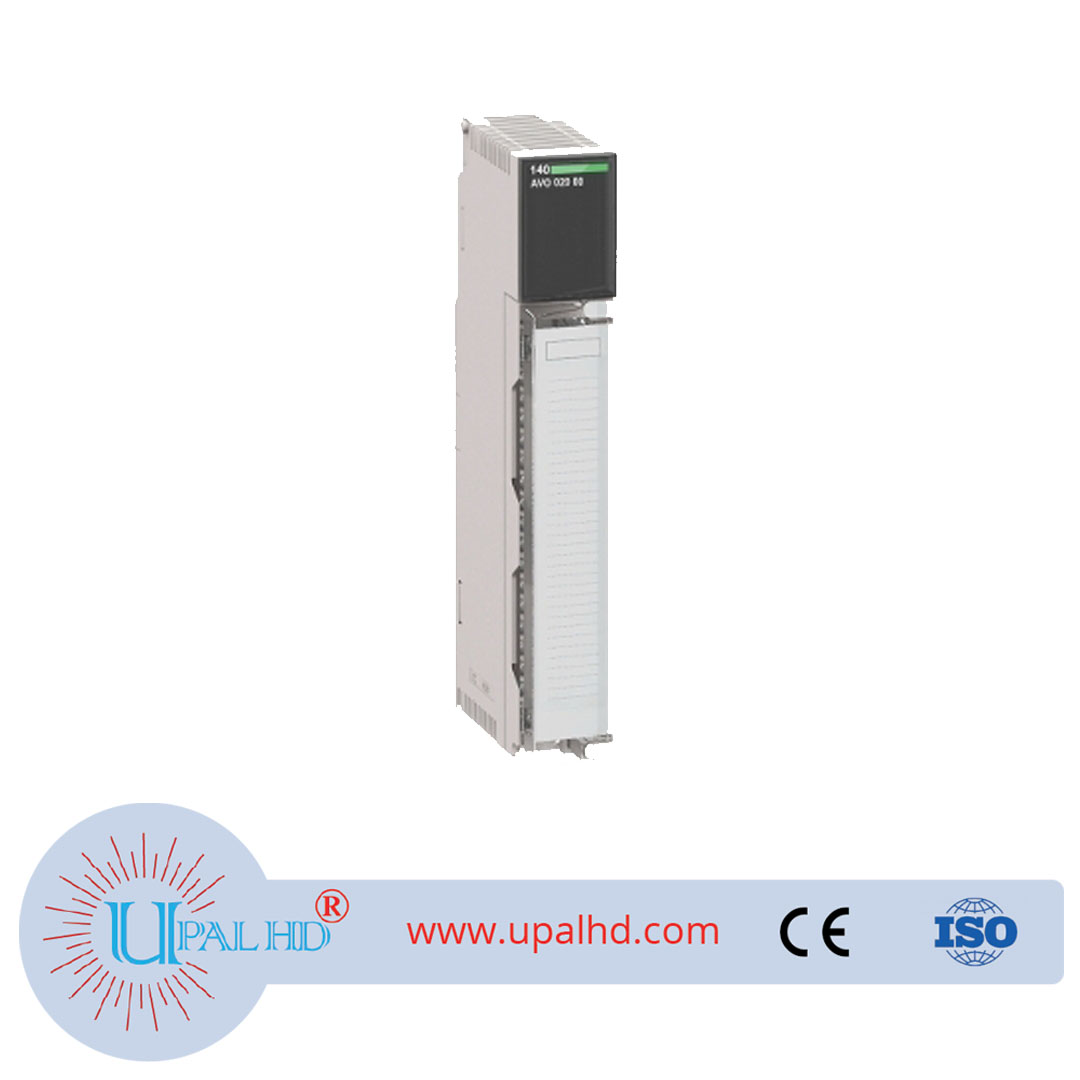

PRODUCT INFORMATION OF Schneider 140AVO02000
| Range of product | Modicon Quantum automation platform |
|---|---|
| Product or component type | Analogue output module |
| Analogue output number | 4 |
| Addressing requirement | 4 output words |
| Analogue output range | +/- 10 V >= 1000 Ohm bipolar voltage +/- 5 V >= 500 Ohm bipolar voltage 0…10 V >= 1000 Ohm unipolar voltage 0…5 V >= 500 Ohm unipolar voltage |
| Analogue output resolution | 12 bits |
| Analogue output current | -10…10 mA |
| Source resistance | 0.1 Ohm |
| Maximum cable distance between devices | 400 m |
| Absolute accuracy error | +/- 0.15 % of full scale at 25 °C |
| Linearity | +/- 1 LSB |
| Accuracy drift according to temperature | 0.003 % of full scale/°C unipolar 0.004 % of full scale/°C bipolar 0.005 % of full scale/°C maximum unipolar 0.007 % of full scale/°C maximum bipolar |
| Isolation between channels | 500 V for 1 minute 47…63 Hz AC |
| Isolation between channels and bus | 780 V for 1 minute AC |
| Update time | 3 ms |
| Setting time | 700 µs to +/- 0.1 % of the final value maximum |
| Bus current requirement | 700 mA |
| Maximum power dissipation in W | 4.5 W |
| Associated fuse rating | 0.063 mA 3 AG fast blow at 250 V |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault 4 LEDs (green) for channel is turned on 4 LEDs (red) for channel fault |
| Module format | Standard |
| Net weight | 0.3 kg |
| Product certifications | FM Class 1 Division 2 cUL |
| Standards | UL 508 CSA C22.2 No 142 |
| Resistance to electromagnetic fields | 10 V/m 80…2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 467.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.318 kg |
| Warranty | 18 months |
