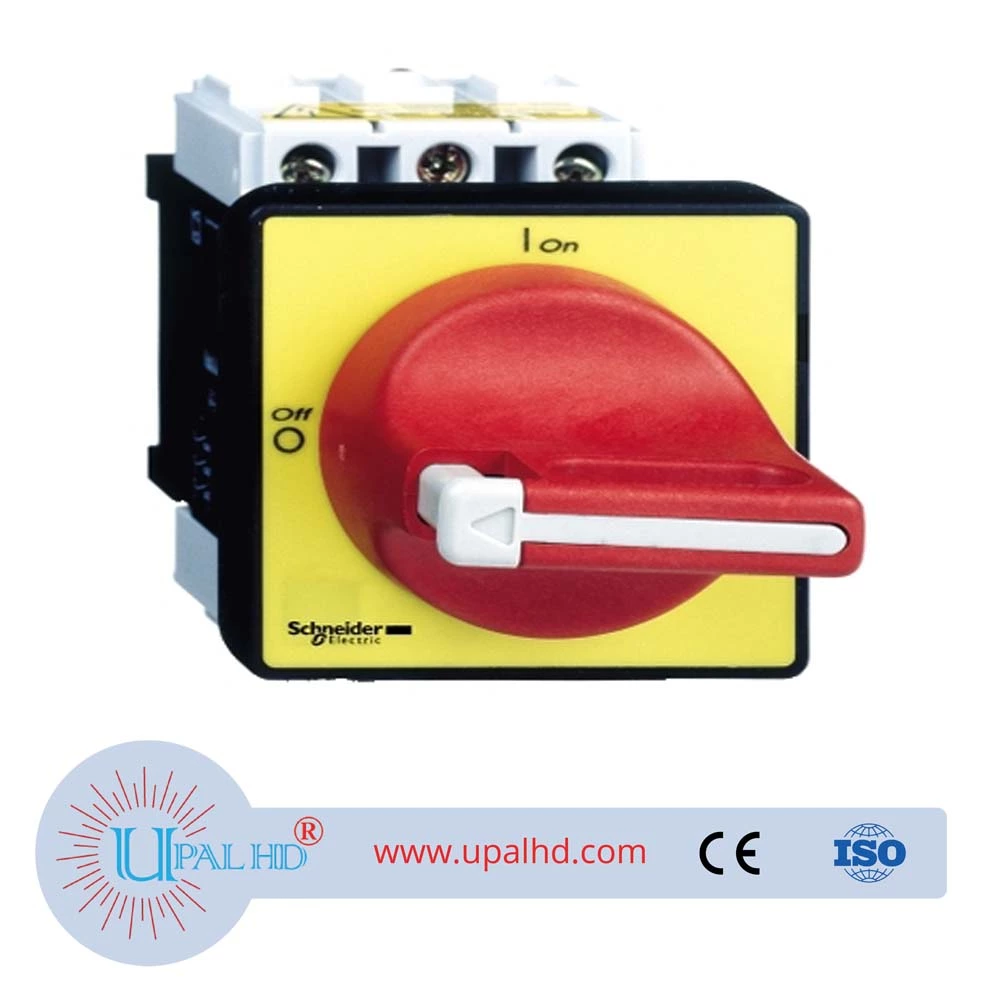

PRODUCT INFORMATION OF SCHNEIDER VCF0
| Range | TeSys |
|---|---|
| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| product type | Emergency stop switch |
| Device Composition | Switch handle |
| Mounting Support | Handle: Door (Up) Switch: Door (Up) |
| Mounting Method | Adaptive handle via 4 screws |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3NO |
| [Ue] IEC Rated Operational Voltage | 690V AC 50/60Hz |
| IEC Rated Operational Power in W | 11 kW at 500 V (AC-23A) 11 kW at 690 V (AC-3) 15 kW at 690 V (AC-23A) 4 kW at 230…240 V (AC- 3) 5.5 kW at 400…415 V (AC-3) 7.5 kW at 500 V (AC-3) 5.5 kW at 230…240 V (AC-23A) 7.5 kW at… 400…415 V (AC-23A) |
| [Ie] Rated Operational Current | 14.5 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 25A |
| [Ithe] Conventional Enclosed Thermal Current | 20A |
| Making Capacity (I Rms) | 250 A at 400 V AC-21A 250 A at 400 V AC-22A 250 A at 400 V AC-23A |
| Breaking Capacity | 200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V – with fuse 25 A aM 10 kA at 400 V – with fuse 25 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 300 A at 400 V Duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8kV |
| Suitability for Isolation | Be applicable |
| Network Type | AC DC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 – 1 |
| Mechanical Durability | 100000 times |
| Electrical Durability | 100000 cycles AC-21 30000 cycles DC-1…5 |
| IEC Terminal Connection | Power circuit: Bolt-on cable 10 mm² Cable option: Rigid Power circuit: Bolt-on cable 6 mm² Cable option: Flexible – with wire terminal |
| Tightening Torque | Power circuit: 2.1 Nm screw tight |
| Base Dimension | 60x60mm |
| high | 74 mm |
| width | 60 mm |
| product weight | 0.25 kg |
| Standards | IEC 60947-3 |
| certified product | CSA CCC GL UL UKCA |
| Degree of Protection | IP20 conforms to IEC 60529 “IP65” |
| Protective Treatment | TC |
| Mechanical Robustness | Shock resistance 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shock resistance 11 ms (30 gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50°C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch |
| Warranty | 18 months |
