Description

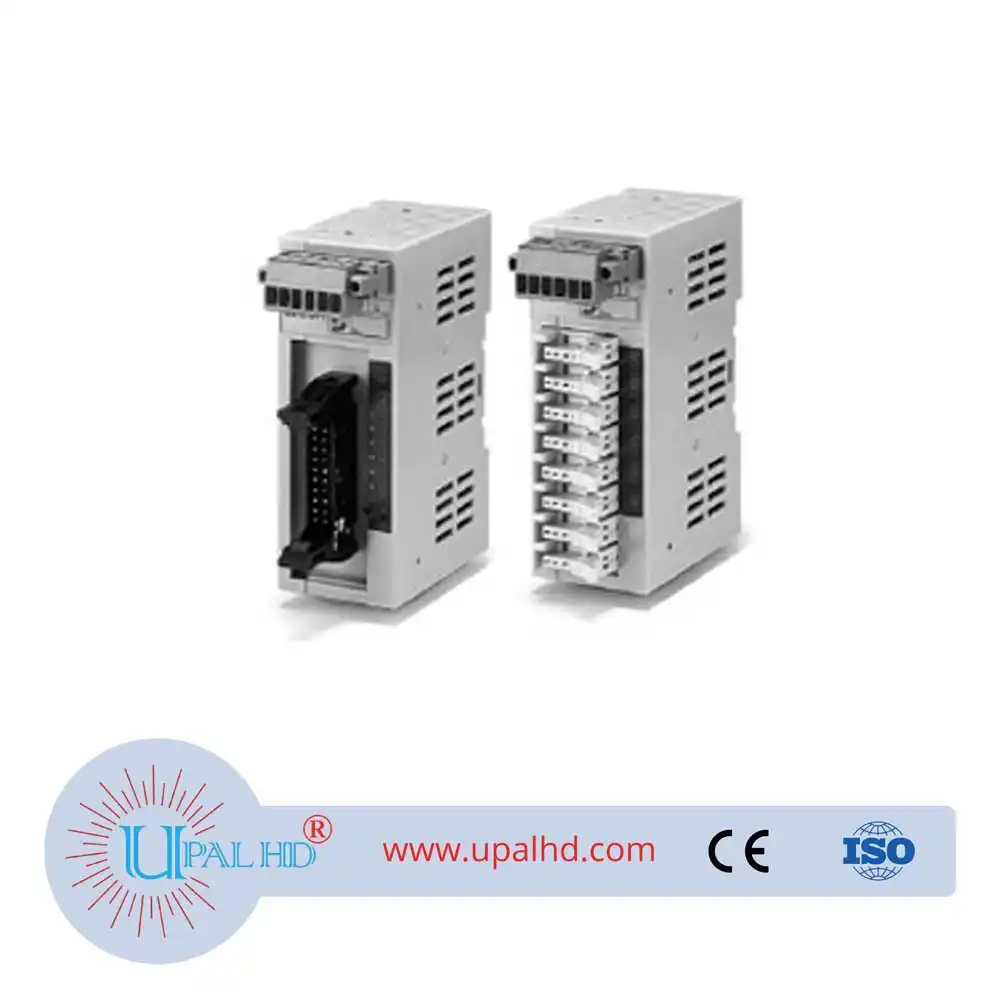

PRODUCT INFORMATION OF Omron SRT2-VOD16ML terminal connector.
| Communications power supply voltage |
14 to 26.4 VDC |
|---|---|
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC +10%/-15%) |
| I/O power supply current | Sensor connector: 2.4 A max., MIL connector: 2.0 A max. |
| Current consumption * | 50 mA max. at 24 VDC |
| Noise immunity | Conforms to IEC61000-4-4, 2 kV (power lines) |
| Vibration resistance | 10 to 150 Hz, 1.0-mm double amplitude or 70 m/s2 (50 m/s2 for SRT2-ATT02) |
| Shock resistance | 200 m/s2 |
| Dielectric strength | 500 VAC (between insulated circuits) |
| Ambient temperature | Operating: -10°C to 55°C (with no icing or condensation) Storage: -25°C to 65°C |
| Ambient humidity | Operating: 25% to 85% (with no condensation) Storage: 25% to 85% |
| Mounting strength | No damage when 100 N pull load was applied in all directions (40 N load for SRT2-ATT02) |
| Terminal strength | No damage when the following loads were applied: Communications connector: 100 N Sensor connector: 40 N MIL connector: 100 N |
| Screw tightening torque | Communications connector: 0.25 Nm |
| Node address setting | Settings made at DIP switch (set before supplying power for Slave communications) |
| Weight | Approx. 75 g max. |
