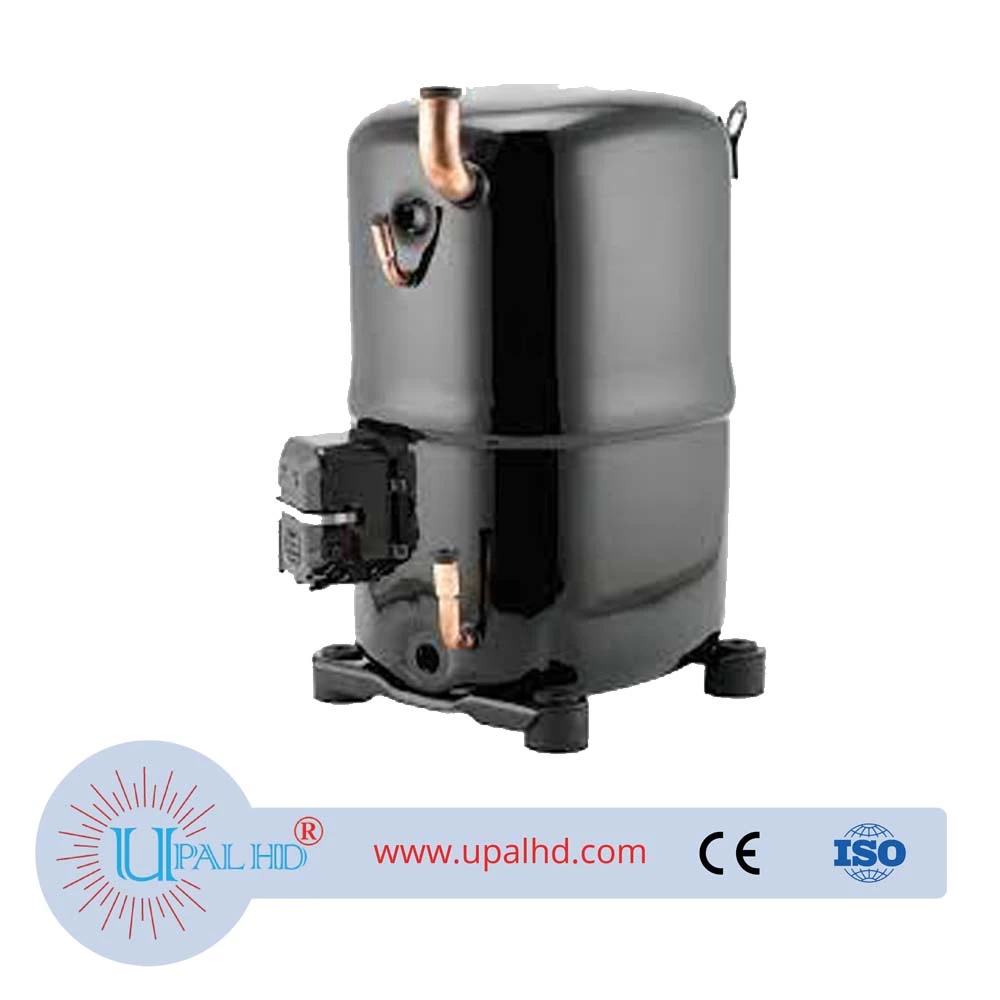

Taikang AE2425Z-FZ1C/R404A/-40℃ low temperature piston compressor

Description

PRODUCT INFORMATION OF DANFOSS Taikang AE2425Z-FZ1C/R404A/-40℃ low temperature piston compressor

French Tecumseh Taikang AE series piston compressor:

New generation, high energy efficiency compressor

Specification:

Evaporation temperature range:

High back pressure: -15°C—+15°C

Low back pressure: -40°C—-10°C

Refrigerants: R134a, R404A, R290

Cooling capacity: from 150W to 1600W

French Tecumseh Taikang compressor AE2425Z-FZ is used in low-temperature refrigeration equipment with low back pressure at -40°C, power supply: 1φ, 220-240V/50Hz, nominal cooling capacity: 5/8 HP, displacement: 12.01 (cm³), Operating current: 3.17A, weight: 11.4(KG)

1, Taikang Piston Compressor AE2425Z-FZ Technical Parameters, Specifications, Selection Manual,

2, Tecumseh Taikang R404A low back pressure -40 ℃ low temperature piston compressor AE2425Z-FZ in different temperature ranges, cooling capacity, suction and exhaust dimensions, external dimensions, etc.
