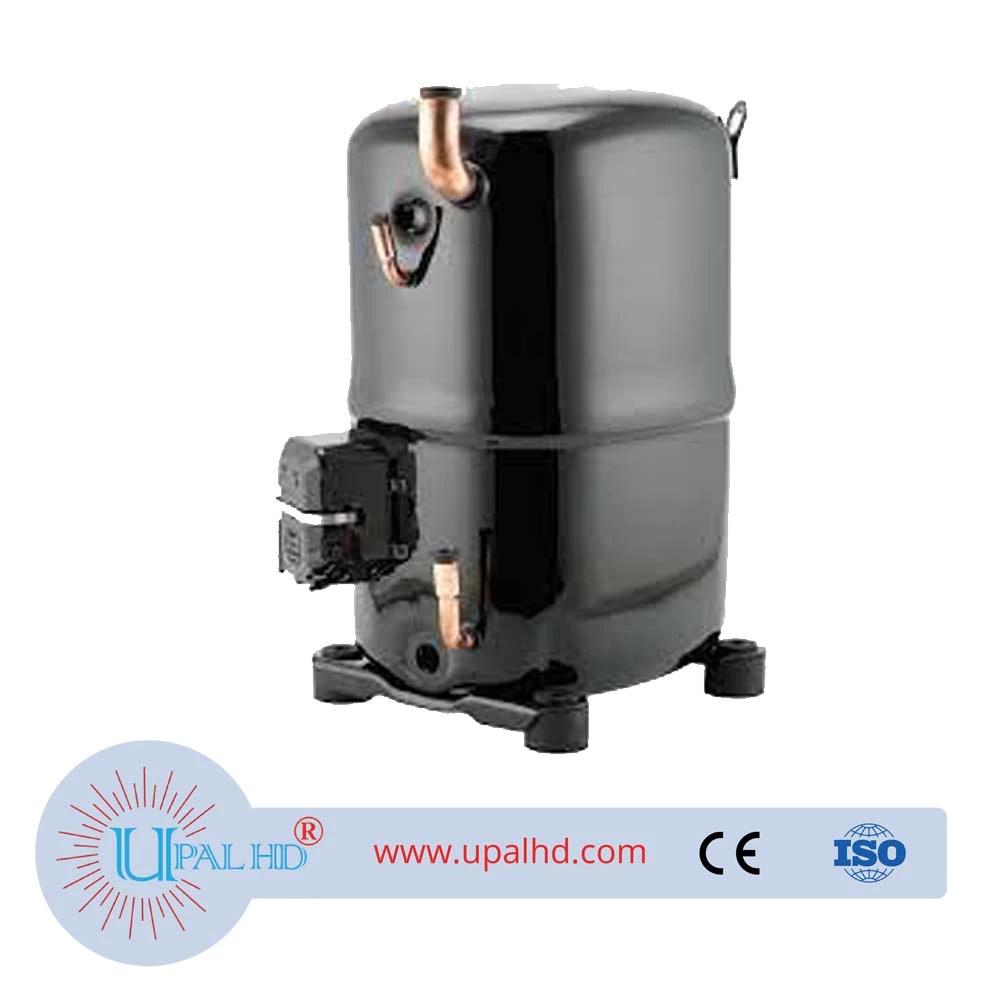

Taikang TAJ2464Z-TZ/380V/R404A/-40℃ low temperature refrigeration piston compressor

Description

PRODUCT INFORMATION OF DANFOSS Taikang TAJ2464Z-TZ/380V/R404A/-40℃ low temperature refrigeration piston compressor

French Tecumseh Taikang AJ series piston compressor:

Quiet, reliable and efficient commercial refrigeration products

Specification:

Evaporation temperature range:

High back pressure: -23°C—+10°C

Low back pressure: -40°C—-12°C

Refrigerant: R134a, R404A,, R290, R1234yf, R22

Cooling capacity: from 380W to 4700W

French Tecumseh Taikang compressor TAJ2464Z-TZ is used in -40℃ low back pressure and low temperature refrigeration equipment, using power supply: 3φ, 400V/50Hz, nominal cooling capacity: 1-1/2 HP, displacement: 34.5 (cm³), Operating current: 2.2A, weight: 21.2(KG)

1, Taikang Piston Compressor TAJ2464Z-TZ technical parameters, specifications, selection manual,

2, Tecumseh Taikang R404A low back pressure -40 ℃ low temperature piston compressor TAJ2464Z-TZ in different temperature ranges, cooling capacity, suction and exhaust dimensions, external dimensions, etc.
