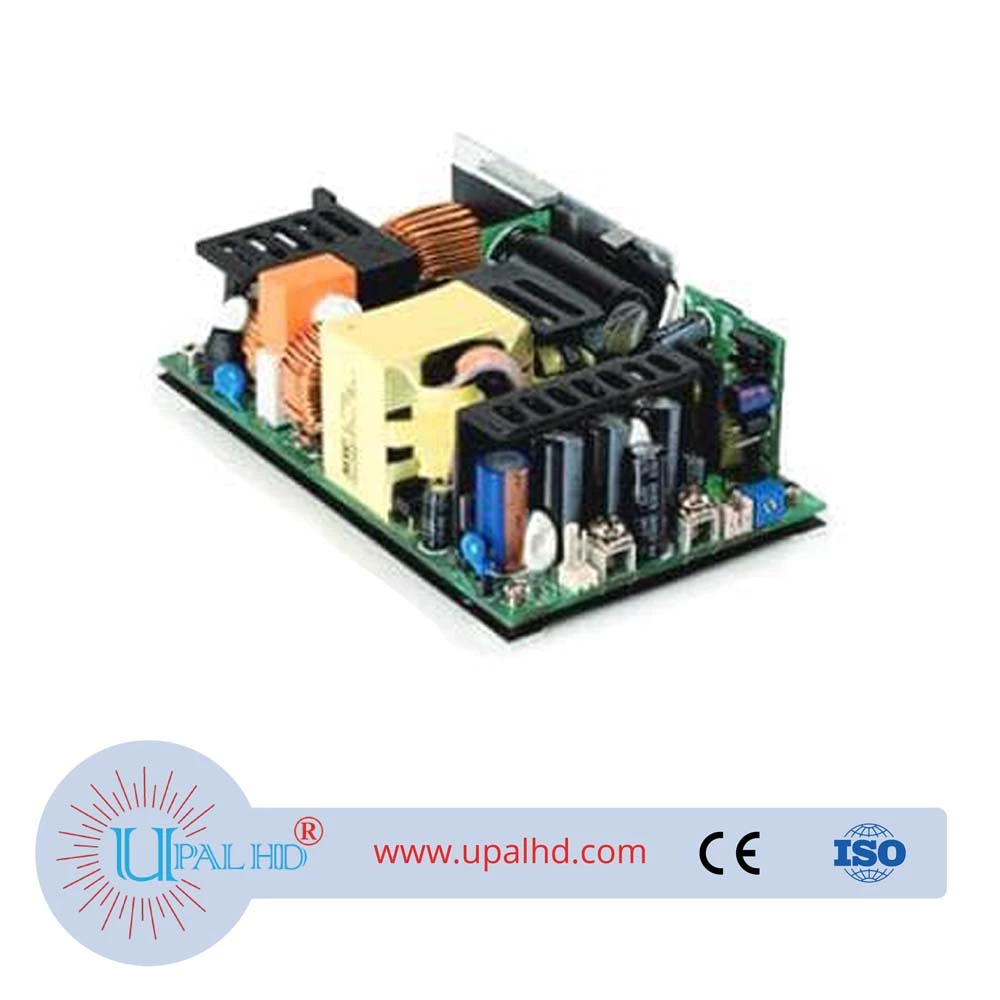

Taiwan MEAN WELL EPP-500-48 switching power supply 500W/48V/10.4A (fan required) PCB bare board type
Taiwan MEAN WELL EPP-500-48 switching power supply 500W/48V/10.4A (fan required) PCB bare board type Single output power supply Model Number: EPP-500-48 Switching Power Supplies 499.2W 48V 10.4A 3×5 Open Frame
Description
PRODUCT INFORMATION OF MEAN WELL Taiwan MEAN WELL EPP-500-48 switching power supply 500W/48V/10.4A (fan required) PCB bare board type
| Manufacturer | MEAN WELL |
|---|---|
| Manufacturers Part # | EPP-500-48 |
| Industry Aliases | 709-EPP-500-48 |
| Factory Pack Quantity | 1 |
| Compliance | CE, EAC |
| Connection Type | JST, Screw Terminal |
| Convection Rating | 321.6 W |
| Cooling Method | Air-Cooled, Convection |
| Dimensions | 5.00 x 3.00 x 1.57″ |
| Efficiency | 94% |
| Industry | Industrial |
| Input Type | AC, DC |
| Isolation | 3000 VAC |
| Mechanical Style | Open / Enclosed Frame |
| Mounting | Chassis |
| Number of Outputs | 1 |
| Operating Temperature | – 30 to + 70°C |
| Output Amps 1 | 6.7 A to 10.4 A |
| Output Voltage V1 Nominal | 48 VDC |
| Power | 499.2 W |
| Standard Packaging Size | 3 x 5 |
| Subcategory | AC-DC Power Supply |
| Weight | .46 kg |
