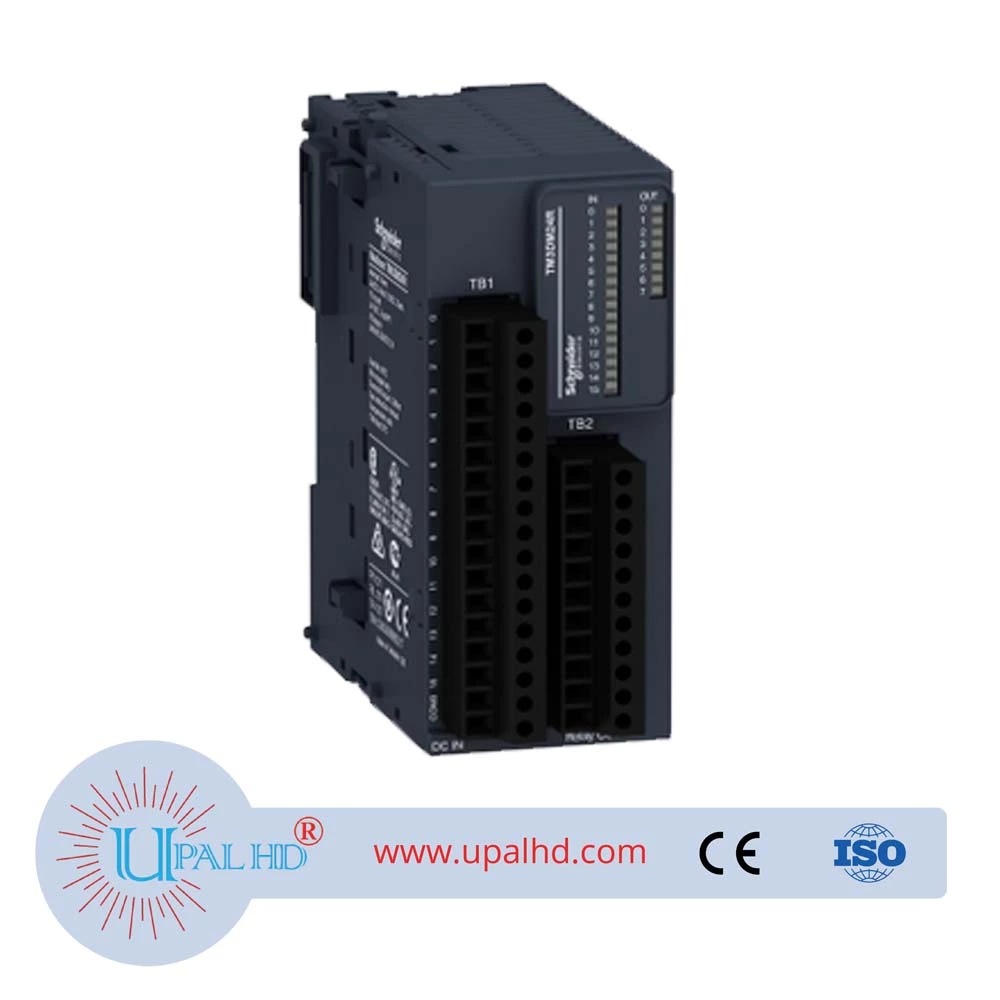

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262.
The discrete I/O module provides 16 input channels, 8 relay output channels with sink or source (positive/negative) discrete logic.
It is an I/O module with a relay output voltage of 24V DC, 240V AC, a current consumption of 65mA, 5mA at 5V DC via bus connector.
This product is capable of controlling variable speed drives or any device equipped with a current or voltage input.
There is an Insulation between input/output and internal logic at 500V AC, input and output groups at 1500V AC, open contact at 750V AC and non-insulated between inputs/outputs.
It is furnished with removable screw terminal for electrical connection with 3.81mm pitch adjustment for inputs and outputs.
It is an IP20 rated product. Its dimensions are 42.9mm (Width) x 84.6mm (Depth) x 90mm (Height).
It weighs 0.165kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards.
This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller.
It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount.
Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism.
A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers.
Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Description
PRODUCT INFORMATION OF SCHNEIDER TM3DM24R plc module, TM3 series PLC module spot
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| discrete input number | 16 for input conforming to IEC 61131-2 Type 1 |
| discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| discrete input current | 7 mA for input |
| Discrete output type | Relay normally open |
| discrete output number | 8 |
| Discrete output logic | Positive or negative |
| discrete output voltage | 24 V DC for relay output 240 V AC for relay output |
| discrete output current | 2000 mA for relay output |
| Discrete I/O number | 24 |
| current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state on) 0 mA at 24 V DC via bus connector (at state off) 65 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| voltage state 1 guaranteed | 15…28.8 V for input |
| current state 1 guaranteed | >= 2.5 mA (input) |
| voltage state 0 guaranteed | 0…5 V for input |
| current state 0 guaranteed | <= 1 mA (input) |
| input impedance | 3.4 kOhm |
| response time | 4 ms (turn-on) 4 ms (turn-off) |
| Maximum current per output common | 7 A |
| mechanical durability | 20000000 cycles |
| minimum load | 10 mA at 5 V DC for relay output |
| local signalling | 1 LED per channel (green) for I/O state |
| electrical connection | 17 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs 11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| insulation | Between input and internal logic at 500 V AC Non-insulated between inputs Between input groups and output groups at 1500 V AC Between open contact at 750 V AC Between output and internal logic at 500 V AC Non-insulated between outputs |
| Marking of TM3DM24R plc module | CE |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height of TM3DM24R plc module | 90 mm |
| Depth of TM3DM24R plc module | 84.6 mm |
| Width of TM3DM24R plc module | 42.9 mm |
| Standards of TM3DM24R plc module | EN/IEC 61131-2 EN/IEC 61010-2-201 |
| Product certifications | CULus C-Tick |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz…1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz…2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz…3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 2 kV for relay output conforming to EN/IEC 61000-4-4 |
| surge withstand of TM3DM24R plc module | 2 kV output common mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5 |
| resistance to conducted disturbances | 10 V 0.15…80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| relative humidity of TM3DM24R plc module | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree of TM3DM24R plc module | 2 |
| Operating altitude of TM3DM24R plc module | 0…2000 m |
| Storage altitude of TM3DM24R plc module | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| shock resistance of TM3DM24R plc module | 15 gn for 11 ms |
