Description
TECHNICAL DATA
16L x 13W x 15H
475 – 550HP
USE BW 174260 FOR LOW HP
Band Clamp Torque – 120 In/Lb3406 Engine Specifications:
Year: 1993-2005
Liter: 14.6
CID: 893
Cylinder: L 6
Bore/Stroke: 5.400-5.402″ ,6.500″
Compression Ratio: 14.5:1
Firing Order: 1-5-3-6-2-4
DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW
475 – 550HP
USE BW 174260 FOR LOW HP
Band Clamp Torque – 120 In/Lb3406 Engine Specifications:
Year: 1993-2005
Liter: 14.6
CID: 893
Cylinder: L 6
Bore/Stroke: 5.400-5.402″ ,6.500″
Compression Ratio: 14.5:1
Firing Order: 1-5-3-6-2-4
DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW
Tune-Up Specifications:
Intake Valve Lash:.012-.018″
Exhaust Valve Lash:.027-.033″
Lash Adjustment Method: Adjusting Screw
Tips:
It’s important during the whole turbo installation process you prevent dirt or debris from entering any part of the turbo. Any dirt or debris entering the turbo may cause catastrophic damage due to the very high speed of operation.
Nothing is more embarrassing than getting passed by a hybrid when you have your pedal to the floor. It’s time to replace that worn out turbo with something new. Whether you need a stock replacement or are shooting for more power Highway and Heavy Parts has you covered.Choose balanced, long-lasting power you can count on with a turbocharger from Highway and Heavy Parts. These parts aren’t some no-name, knock-off that come from some dirty factory where acceptable tolerances are between “close enough” and “ehh, no one will notice”. We only work with reputable aftermarket suppliers, most of which supply the OE, meaning you can rest assured you’ve got quality you can count, a 2-Year Warranty, and savings up to 50% off OE Prices.
-

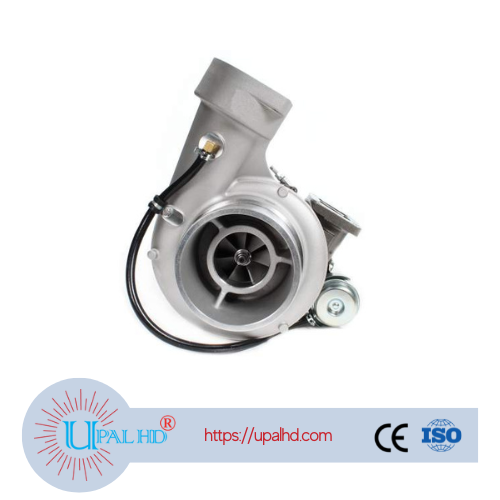

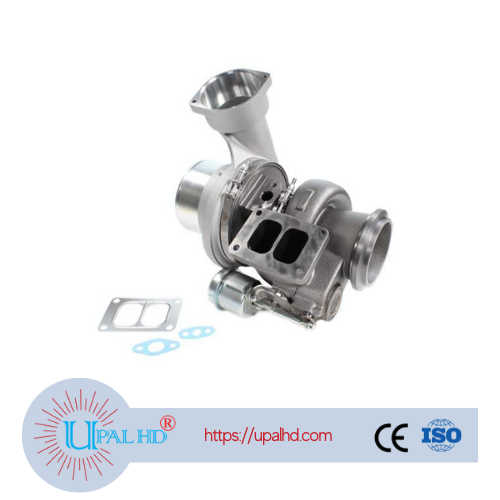

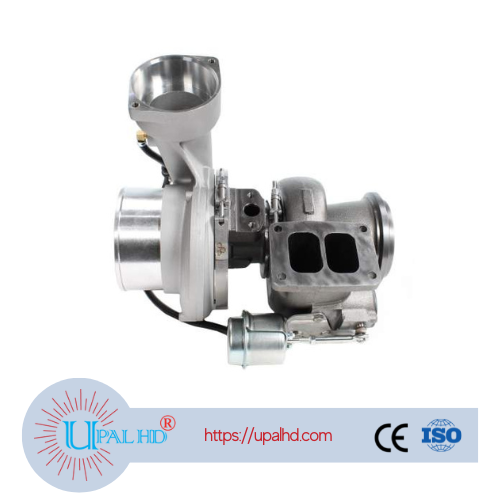

- Forget worrying about over spooling, our Caterpillar 3406E turbo includes an installed wastegate and mounting gaskets.
-
- Rest assured knowing each turbo is built to OEM specifications and has exceptional quality control with a low price.
-
- This turbo gives increased power, efficiency and long lasting performance, giving your engine what it needs to go further.
-
- Give your engine extra protection. A wastegate will regulate maximum boost pressure and allow for a smaller A/R turbine housing, resulting in less lag time before the turbo creates boost and starts to spool.
- To top it off, a wastegate valve diverts gasses away from the turbine wheel in a turbocharged engine system, regulating the turbine speed and rotating speed of the compressor.
