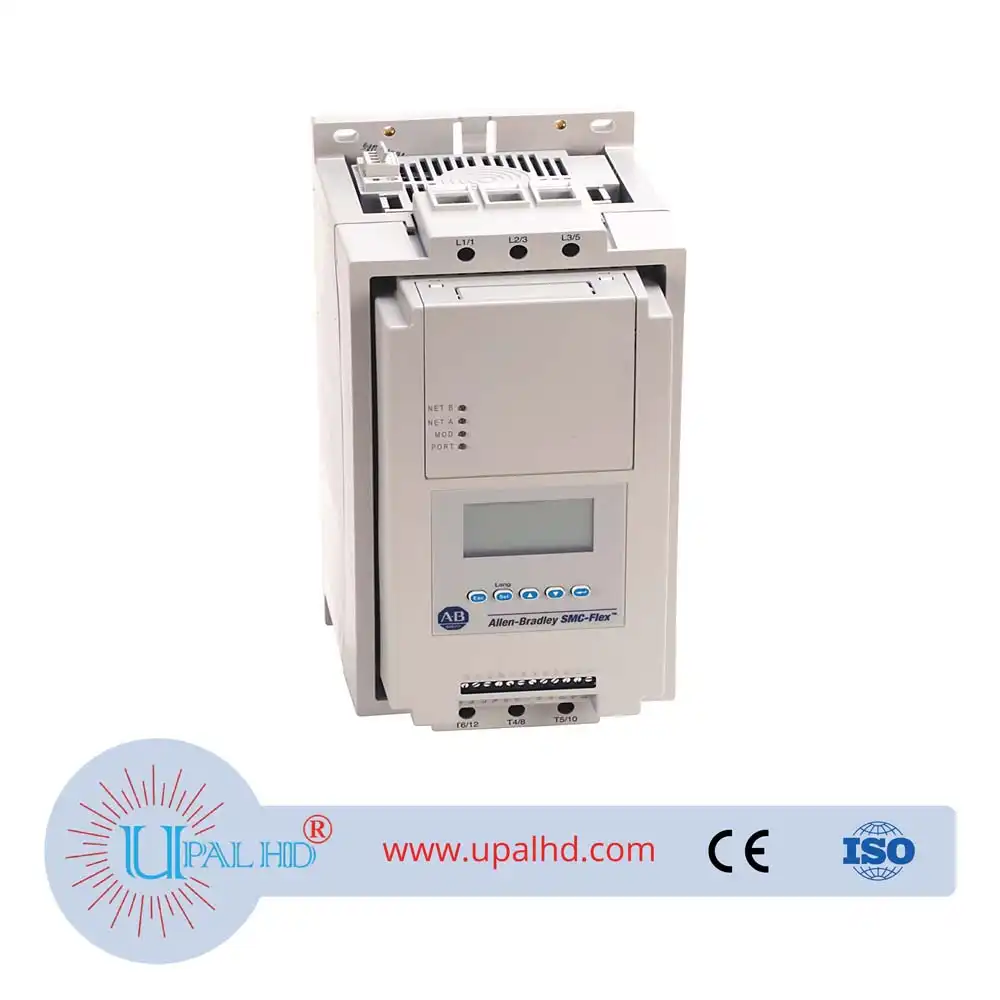

150-F201NBR Rockwell AB SMC Flex soft starter current 201A.
150-F201NBR Rockwell AB SMC Flex soft starter current 201A.Soft Start Series Model No: 150-F201NBR.The Allen-Bradley 150-F201NBR is a SMC Flex Smart Motor Controller. This motor controller has a line Voltage of 200-460VAC, 3-Phase, 50 and 60 Hz and control Voltage of 24V AC/DC (5-480 A units)It delivers maximum continuous output current of 201 Amperes and output power of 150 HP at 460VAC rated voltage with an open type enclosure. This motor controller has an integrated LCD backlit display which is used for programming and monitoring of the controller’s operation.
Description
PRODUCT INFORMATION OF 150-F201NBR Rockwell AB SMC Flex soft starter current 201A.
| Manufacturer | Rockwell Automation |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Auxiliary Contacts | Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only) |
| Communications | One DPI provided for connection to optional human interface and one DPI provided for connection to communication |
| Maximum output Power | 150 HP |
| Maximum output Current | 201 A |
| Line Voltage: | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Operating Modes: | Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop |
| Product Family: | SMC Flex Smart Motor Controller |
| Brand | Allen-Bradley |
| Control Voltage | 24V AC / 24VDC (5…480 A units) |
| Part Number/Catalog No. | 150-F201NBR |
| Bulletin Number | 150 |
| Product Line | SMC-Flex |
| Enclosure Type | open |
| Controller Rating | 201 A, 150 Hp @ 460V AC |
| Input Line Voltage | 200-460V AC, 3-phase, 50 and 60 Hz |
| Rated Voltage | 200-460V AC |
