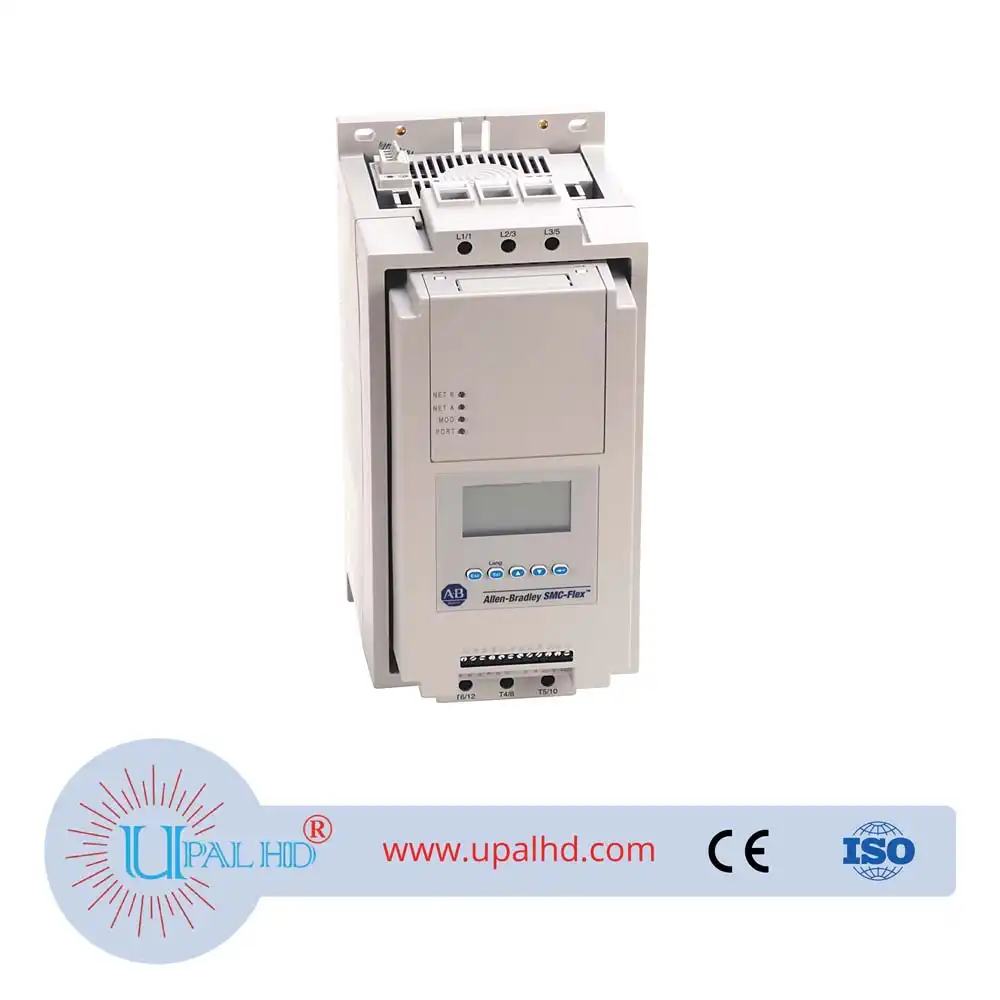

150-F85NBR Rockwell AB SMC Flex soft starter current 85A.
150-F85NBR Rockwell AB SMC Flex soft starter current 85A.Soft Start Series Model No: 150-F85NBR. The 150-F85NBR is a Smart Motor Controller from the SMC Flex product family that is manufactured by Allen-Bradley. Typically termed as motor soft-starter, this solid-state device has an operating at an input voltage of 200-460VAC, 3-Phase, 50/60Hz. This controller is operable with line-connected and Delta Connected motors. With line-connected motors, it has an output power range of 25 – 60 HP @ 60 Hz; 22 – 45 kW @ 50 Hz, and an output current range of 17-85 Amperes. For Delta-connected motors, it has an output power range of 40 – 100 HP @ 60 Hz; 45 – 75 kW @ 50 Hz, and an output current range of 29.4-147 Amperes. This controller is configurable to implement Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop, and Smart Motor Braking.
Description
PRODUCT INFORMATION OF 150-F85NBR Rockwell AB SMC Flex soft starter current 85A.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 150-F85NBR |
| Manufacturer: | Rockwell Automation |
| Operating Modes: | Soft Start, Kickstart, Current Limit, Pump, Control, Dual ramp start, Full Voltage Start, Coast, Soft Stop and Smart Motor Braking. |
| Product Line | SMC-Flex |
| Kickstart adjustments: | 0, 0.5, 1.0, or 1.5 s @ 450% Full Load Current (FLA) |
| Brand: | Allen-Bradley |
| Bulletin Number | Solid State Controller |
| Start-time adjustments: | 2, 5, 10, 15, 20, 25, or 30 s |
| Product Family: | SMC Flex Smart Motor Controller |
| Current Limit: | 150%, 250%, 350%, and 450% of full load current |
| Enclosure Type | open |
| Bulletin Number: | 150 |
| Controller Rating | 85 A, 60 Hp @ 460V AC |
| Line Voltage: | 208…460V AC, 3-Phase,47 and 63 Hz |
| Catalog number: | 150-F85NBR |
| Input Line Voltage | 200-460V AC, 3-phase, 50 and 60 Hz |
| Output current | 17-85 Amperes for line-connected motors; 29.4-147 Amperes for Delta connected motors |
| Operating Modes: | Soft-start, Linear Acceleration/Deceleration, Current Limit, Dual Ramp Start, Full Voltage, Soft Stop, Preset Slow Speed |
| Applicable Motor Type | Standard squirrel-cage induction motor or a Wye- Delta, six-lead motor |
| Output Power | 25 – 60 HP @ 60 Hz; 22 – 45 kW @ 50 Hz for line-connected motors; 40 – 100 HP @ 60 Hz; 45 – 75 kW @ 50 Hz for Delta connected motors |
| Control Voltage | 24V AC/DC (5-480 A units) |
| Line Voltage: | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Output contacts | One (1) Normally Open (N.O.); One (1) Normally Closed (N.C.) contacts |
| Rated Voltage | 200-460V AC |
| Control Voltage: | 24 VAC / 24 VDC |
| Alarm Contact assignments | Overload, underload, undervoltage, overvoltage, unbalance, jam, stall, and ground fault |
| Output Current range: | Line-Connected Motors: 17-60 Amperes Delta Connected Motors: 29.4-147 Amperes |
| Selectable Overload Trip Class | Trip Class 10, 15, or 20 |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, and motor thermal capacity usage. |
| Output power range: | Line Connected motors: 25-45 HP; 22-45 kW Delta connected motors: 45-75 kW; 40-100 Hp |
| Auxiliary Contacts | Four (4) Fully-programmable contacts |
| Built-in status indicator | Stopped, starting, stopping, at speed, alarm, and fault. |
| Human Interface Module | Integrated |
| Mounting: | Panel Mount |
| Communication ports | One (1) DPI for optional HMI; One (1) DPI for expansion module |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Status Indication | Stopped, starting, stopping, at speed, alarm, and fault. |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
