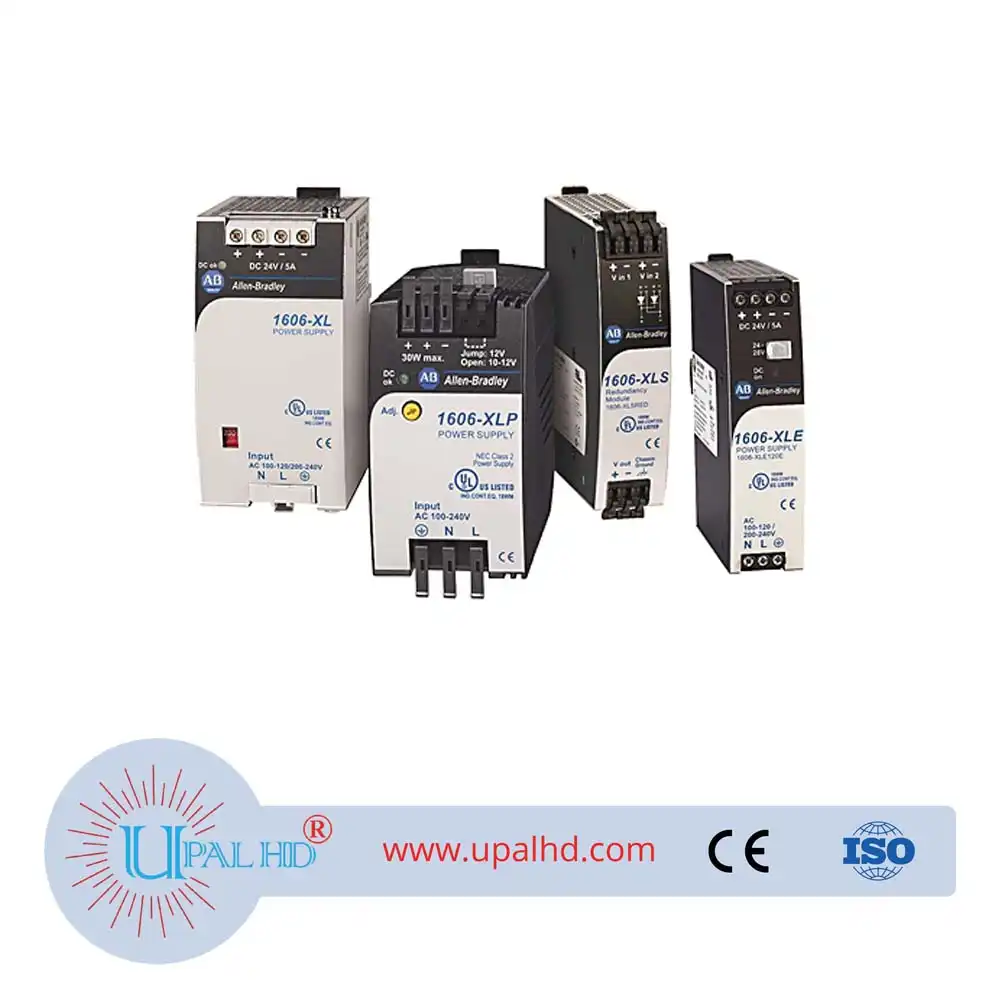

1606-XLP30EQ New American Rockwell AB compact switching power supply.
1606-XLP30EQ New American Rockwell AB compact switching power supply.1606 Series Model No: 1606-XLP30EQ.Power Supply, Bulletin 1606 XLP Compact, 100-240VAC or 110-300 VDC Input, 24-28VDC Output, 30Watt, 1.3A Output, Parallel Operation.
Description
PRODUCT INFORMATION OF 1606-XLP30EQ New American Rockwell AB compact switching power supply.
| Height | 75 mm |
| Depth | 91 mm |
| Direct mounting possible | No |
| Width | 22.5 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Screw connection |
| Shock | 30 G, 6 ms 20G, 11 ms |
| Special functions | No special function |
| MTBF | 2405000 hours @ 40 °C, SN 29500 |
| Wall mounting possible | Yes |
| Degree of protection (NEMA) | Other |
| Vibration | 2 G |
| Secondary voltage adjustable | Yes |
| Power output | 30 W |
| Voltage type of supply voltage | AC/DC |
| Rated supply voltage at DC | 85 V |
| Efficiency, typ | 89.4 % |
| Adjustment range | 24 V |
| Operational range | 85…264V AC |
| Rated output current | 1.3 A @ 24V |
| Phases | 1-phase |
| Sub group | Compact family |
| Hold-up time | >31 ms @ 100V AC |
| Input voltage | 100…240V AC |
| Special family function | No power boost |
| Rated input current | <0.54 A @ 100V AC |
| Special feature | — |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Stabilized | Yes |
